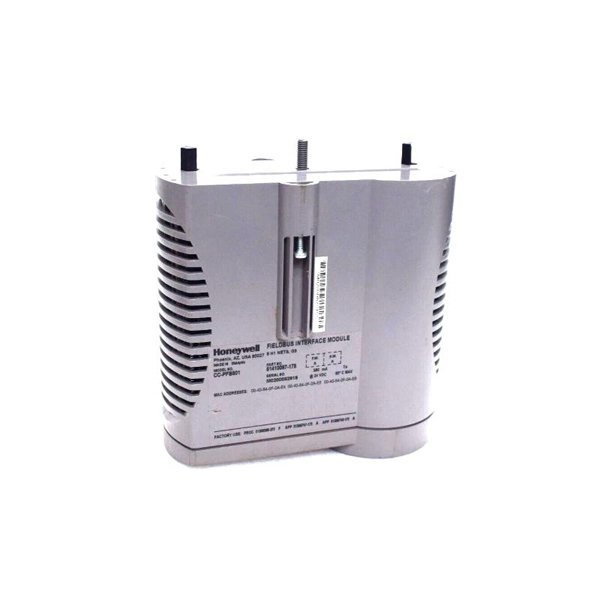

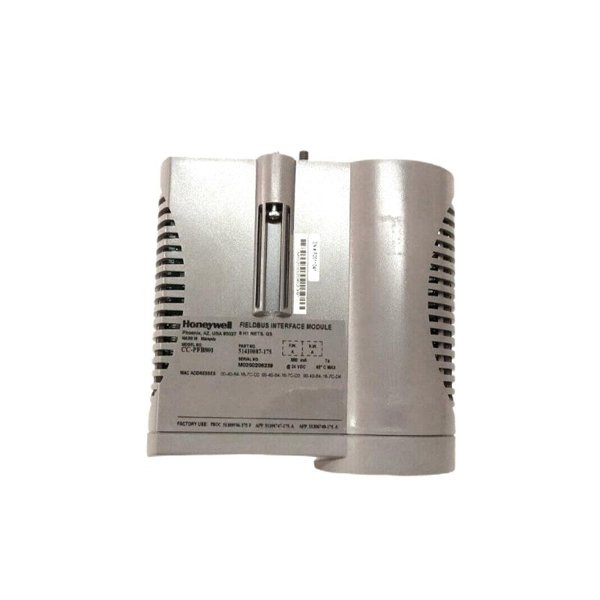

Honeywell CC-PFB801 51410087-175 Fieldbus Interface Module

The Honeywell CC-PFB801 51410087-175 Fieldbus Interface Module is an advanced communication interface designed to integrate FOUNDATION Fieldbus H1 devices with Honeywell’s Experion Process Knowledge System (PKS). It acts as the vital link between the distributed control system (DCS) and intelligent field instruments, enabling seamless communication, configuration, and diagnostics.

Part of the C300 controller family, the CC-PFB801 module allows for robust, deterministic communication with up to two Fieldbus H1 segments. It plays a crucial role in enabling asset management and process optimization by facilitating access to real-time process variables and diagnostic information from smart field devices.

With its rugged industrial design and proven interoperability with FOUNDATION Fieldbus-compliant instruments, the CC-PFB801 is a trusted choice for control engineers seeking performance, scalability, and integration flexibility in process automation applications.

Product Specifications

Product Applications

The Honeywell CC-PFB801 module is widely used in process control industries that require integration of smart instrumentation over FOUNDATION Fieldbus. Key application sectors include:

• Petrochemical Plants: For centralized control and diagnostics of FF-based instrumentation in refineries and chemical process units.

• Power Generation: Used for turbine temperature monitoring and generator protection via fieldbus-connected sensors.

• Pharmaceuticals: Provides real-time access to critical process parameters, ensuring regulatory compliance in batch processes.

• Oil & Gas: Facilitates efficient data communication from remote sensors and actuators in upstream and downstream facilities.

• Water & Wastewater: Enables smart monitoring and control of pumps, flowmeters, and analyzers in distributed treatment systems.

• Food & Beverage: Improves quality control by ensuring synchronized device performance across process lines.

Product Advantages

• Seamless FF Integration: Directly interfaces with FOUNDATION Fieldbus H1 networks, streamlining communication with smart field devices.

• Dual Segment Support: Supports two independent H1 segments, offering scalability and flexibility for system expansion.

• Advanced Diagnostics: Monitors device health, bus conditions, and events to aid predictive maintenance.

• Enhanced Process Visibility: Provides access to extended device data, including alarms, alerts, and parameters.

• High Reliability: Robust hardware design suited for 24/7 industrial environments with redundancy support.

• Efficient Engineering: Fully integrated into Honeywell’s Experion PKS tools for streamlined configuration and control logic.

• Supports Smart Instrumentation: Compatible with a wide range of third-party FF-compliant devices, promoting vendor flexibility.

• Reduced Wiring Costs: FOUNDATION Fieldbus minimizes the need for point-to-point wiring, lowering installation expenses.

• Secure and Stable Operation: Designed with built-in protections and compliance to international safety standards.

• Long Lifecycle Support: Backed by Honeywell’s commitment to lifecycle services, updates, and global technical support.

FAQ (Frequently Asked Questions)

1. Q: What is the main function of the CC-PFB801 module?

   A: It serves as a communication interface between the Experion DCS and FOUNDATION Fieldbus H1 field devices.

2. Q: How many field devices can be connected?

   A: The module can handle up to 32 devices (16 per segment recommended for performance).

3. Q: Is this module redundant-capable?

   A: Yes, it supports redundancy when installed in a redundant configuration.

4. Q: What software is used to configure the module?

   A: Configuration is done through Honeywell’s Experion PKS engineering tools.

5. Q: Can it support device diagnostics?

   A: Yes, it provides advanced diagnostics, including device status, alarms, and event logging.

6. Q: What type of fieldbus does it support?

   A: It supports FOUNDATION Fieldbus H1 protocol at 31.25 kbps.

7. Q: Does it require external power for the fieldbus?

   A: Yes, fieldbus segment power must be supplied externally or through a system-integrated power conditioner.

8. Q: Is the CC-PFB801 hot-swappable?

   A: Yes, it supports hot-swapping within supported chassis systems.

9. Q: What certifications does this module carry?

   A: It is certified by CE, UL, CSA, FM, ATEX, and IECEx.

10. Q: What Honeywell systems is the CC-PFB801 compatible with?

    A: It is designed for use with Experion PKS, specifically with the C300 controller environment.
