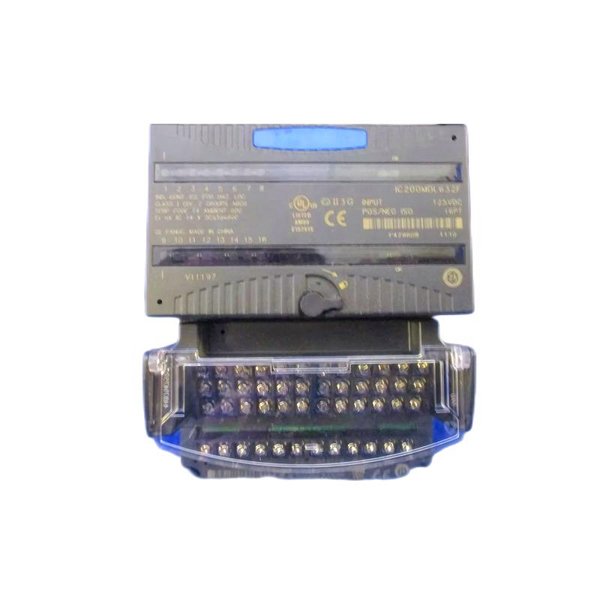

General Electric IC200MDL636F VersaMax Discrete Input Module

The GE IC200MDL636F VersaMax Discrete Input Module is a high-performance industrial automation component designed for use in VersaMax PLC systems. It is an input module that enables the connection of 24V DC discrete input signals, allowing the controller to monitor the status of various industrial devices such as switches, sensors, and push buttons.

This module is well-regarded for its compact size, high reliability, and easy integration into automation systems. It features 16 input channels, supports positive and negative logic, and ensures stable signal detection even in harsh industrial environments. Its hot-swappable capability allows for convenient maintenance and replacement without shutting down the entire system.

The IC200MDL636F is an excellent choice for applications that require precise input signal processing, including manufacturing, energy management, water treatment, and automated machinery control.

Technical Specifications

Applications

The GE IC200MDL636F is used in a variety of industrial applications where digital input monitoring is required. Some key application areas include:

• Manufacturing Automation: Used for monitoring sensor inputs, conveyor belt switches, and safety interlocks in automated production lines.

• Energy Management Systems: Helps in monitoring electrical grid status, power control signals, and fault detection.

• Water and Wastewater Treatment Plants: Facilitates the monitoring of pump status, flow sensors, and emergency stop switches.

• Building Automation: Used in security systems, HVAC controls, and lighting automation.

• Oil & Gas Industry: Integrated into drilling rigs and pipeline monitoring systems for safety and operational control.

• Transportation Systems: Used in railway signaling, toll gate systems, and traffic light controls.

Key Advantages

1. High Reliability: Designed for industrial environments with robust isolation and durable components.

2. Compact and Modular Design: Easily fits into VersaMax PLC racks, reducing installation space requirements.

3. Fast Response Time: Ensures accurate and real-time monitoring of input signals.

4. Positive & Negative Logic Support: Offers flexibility in wiring configurations.

5. LED Status Indicators: Provides immediate visual feedback on input status for quick diagnostics.

6. Hot-Swappable Capability: Allows for easy maintenance and replacement without system downtime.

7. Wide Operating Temperature Range: Suitable for various industrial conditions.

8. Compliance with Industry Standards: Meets UL, CE, and CSA certifications for safety and reliability.

FAQ (Frequently Asked Questions)

1. What is the primary function of the IC200MDL636F?

   • It serves as a 16-point digital input module for monitoring 24V DC discrete signals in automation systems.

2. Is this module compatible with older VersaMax PLC systems?

   • Yes, it is designed to be backward compatible with most VersaMax PLC configurations.

3. Can the module operate in extreme temperatures?

   • It functions within 0°C to 60°C and can be stored at temperatures as low as -40°C.

4. Does the IC200MDL636F support both sinking and sourcing inputs?

   • Yes, it supports positive (sourcing) and negative (sinking) logic, providing wiring flexibility.

5. How does the module indicate input status?

   • Each input channel has an LED indicator to show its real-time ON/OFF status.

6. Can this module be replaced while the system is running?

   • Yes, the module is hot-swappable, meaning it can be replaced without shutting down the entire system.

7. What is the maximum isolation voltage?

   • The module provides 1500V isolation between the logic side and the field side for signal protection.

8. What is the power consumption of this module?

   • The IC200MDL636F consumes 1.1W of power.

9. How is the module mounted in an industrial setup?

   • It can be mounted on a DIN rail or a panel, offering installation flexibility.

10. Is the module compatible with other GE PLC series?

• The IC200MDL636F is designed primarily for VersaMax PLCs, but it can work with other GE PACSystems through compatible I/O configurations.
