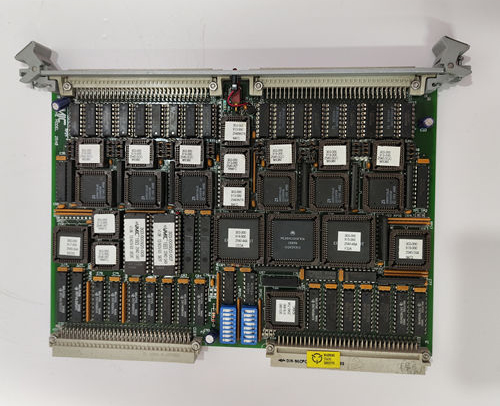

GE VMIVME2540 Intelligent Counter Module Technical Specifications

GE VMIVME2540 Intelligent Counter Module is a high-performance counting module designed for industrial automation and process control, specifically for the VME bus architecture.

It provides multi-channel pulse counting and frequency measurement, suitable for applications such as high-speed counting, speed monitoring, and event detection.

Main features

Multi channel counting: Supports up to 8 counting channels and counting rates up to 40 MHz.

High precision measurement: supports pulse counting, frequency measurement, and pulse width modulation (PWM) signal acquisition.

Data Storage: Equipped with built-in buffers for temporary storage of data, reducing data loss.

Strong compatibility: Supports TTL, CMOS, and differential input signals, making it easy to integrate with different devices.

Technical specifications

Input signals: TTL, CMOS, differential input.

Counting rate: 40 MHz per channel.

Interface: VME bus, suitable for industrial control systems.

Power supply:+5V DC.

Application areas

Industrial automation: used for production monitoring and equipment speed measurement.

Test measurement: suitable for laboratory frequency and pulse signal analysis.

This module is suitable for high-precision counting and real-time data processing requirements, such as mechanical monitoring, flow measurement, and other occasions.
