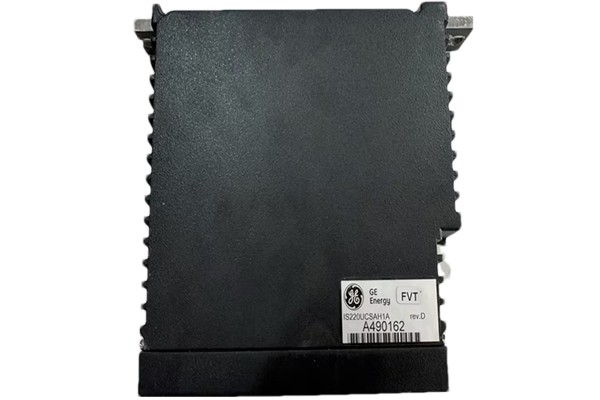

General Electric IS220UCSAH1A Technical Specifications

The GE IS220UCSAH1A is an advanced industrial control module designed by General Electric (GE) as part of the Mark VIe series for distributed turbine control systems. This module is engineered to deliver high reliability, precision, and flexibility in demanding industrial automation environments. Below is a detailed overview of its technical specifications, features, and applications.

Technical Specifications

• Processor: PowerQUICC II Pro Freescale processor operating at 667 MHz, ensuring robust computational performance.
• Operating System: QNX Neutrino®, a real-time multitasking OS tailored for industrial applications requiring high speed and reliability.
• Memory: Supports large-capacity data storage to handle extensive process control and monitoring tasks.
• Communication Interfaces:
  • Ethernet: 2 x 10/100/1000 Mbps ports for seamless connectivity with other controllers, HMIs, and maintenance stations.
  • Serial: RS-232/RS-485 interfaces for legacy system integration.
  • CAN Bus: Optional support for Controller Area Network protocols, enabling communication with various industrial devices.
• Power Supply: Rated for 18–36 VDC at 12 watts, ensuring compatibility with a wide range of industrial power sources.
• Operating Temperature: -40°C to +70°C, making it suitable for harsh environmental conditions.
• Storage Temperature: -40°C to +70°C, ensuring long-term reliability in non-operational states.
• Mounting Options: DIN rail or rack-mountable for flexible installation in control cabinets.
• Dimensions: Compact form factor (e.g., 170mm x 105mm x 32mm) for space-efficient deployments.

Functional Features

1. High-Speed Data Processing:
   • The 667 MHz processor and QNX OS enable real-time execution of control algorithms, ensuring rapid response to process variations.
2. Redundancy and Reliability:
   • Designed for triple-redundant systems, allowing up to three modules to be installed side-by-side for fault tolerance and high availability.
   • Hot-swappable functionality allows for online replacement without disrupting operations.
3. Isolation and Noise Immunity:
   • Built-in isolation circuits protect against electrical interference, ensuring stable operation in noisy industrial environments.
4. Flexible I/O Configuration:
   • Supports a variety of signal types, including analog, digital, and frequency signals, accommodating diverse sensor and actuator requirements.
   • Programmable logic capabilities enable customization of input/output control logic to meet specific application needs.
5. Advanced Diagnostics and Monitoring:
   • Front-panel LED indicators provide real-time status feedback on power, startup, online status, flash memory, DC supply, and diagnostics.
   • Fault detection and alarming mechanisms ensure timely identification and resolution of issues.
6. Scalability and Expandability:
   • Modular design facilitates easy integration with other GE Mark VIe components and third-party systems.
   • Supports expansion through additional I/O modules and communication interfaces.

Applications

The IS220UCSAH1A is ideally suited for industries requiring precise control and monitoring of critical processes, including:

• Power Generation:
  • Gas and steam turbine control systems, ensuring efficient and reliable energy production.
• Oil and Gas:
  • Drilling rig automation, pipeline monitoring, and process control in refineries.
• Manufacturing:
  • Automation of production lines, material handling systems, and quality control processes.
• Water and Wastewater Treatment:
  • Pump and valve control, water quality monitoring, and distribution network management.
• Mining and Metals:
  • Optimization of mining operations, conveyor systems, and ore processing plants.
• Life Sciences:
  • Laboratory equipment control, environmental monitoring, and process automation in pharmaceutical and biotech facilities.

Key Benefits

• Enhanced Productivity: Real-time control and monitoring capabilities improve process efficiency and reduce downtime.
• Cost Savings: Redundancy and hot-swappable features minimize maintenance costs and production losses.
• Ease of Integration: Compatibility with GE’s Mark VIe ecosystem and support for industry-standard protocols simplify system design and implementation.
• Future-Proof Design: Scalable architecture and support for advanced communication technologies ensure long-term adaptability to evolving industrial needs.

Conclusion

The GE IS220UCSAH1A is a versatile and robust industrial control module that combines high-performance processing, advanced communication capabilities, and rugged design to meet the demands of modern industrial automation. Its compatibility with the Mark VIe platform and support for a wide range of applications make it an ideal choice for industries seeking reliable and efficient process control solutions.
