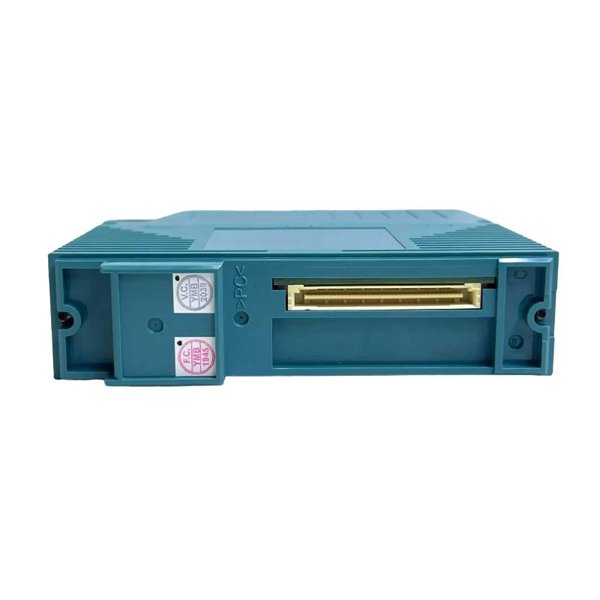

Yokogawa NFAI143-500/A4500 Analog Input Module

The Yokogawa NFAI143-500/A4500 Analog Input Module is a high-performance module designed for use in Yokogawa’s control and safety systems, including CENTUM VP and ProSafe-RS. This module plays a critical role in industrial automation by accurately acquiring and converting analog signals from various field instruments, such as transmitters for pressure, temperature, flow, and level measurement. It provides precise digital representation of process variables, enabling optimal process control and system reliability.

Engineered to operate in demanding industrial environments, the NFAI143-500/A4500 offers advanced diagnostic capabilities, robust isolation, and high immunity to electrical noise, ensuring consistent and accurate signal acquisition. Its high-density design allows for multiple input channels, reducing panel space and installation costs. The module is an excellent choice for mission-critical applications where accuracy, reliability, and safety are paramount.

Product Parameters

Product Applications

The NFAI143-500/A4500 module is extensively used across process automation systems where accurate and stable analog signal acquisition is required. Typical application areas include:

• Oil & Gas Industry: Real-time monitoring of flow, pressure, and level in upstream and downstream processes.

• Chemical & Petrochemical Plants: Capturing temperature and pressure signals for critical process control loops.

• Power Generation Plants: Monitoring turbine and boiler parameters to maintain efficiency and safety.

• Water and Wastewater Treatment: Accurate level and pressure measurement for automated treatment processes.

• Pharmaceutical Industry: Ensuring precise control of temperature and environmental conditions for regulatory compliance.

• Steel and Mining: Robust data acquisition in high-noise environments for operational stability.

Product Advantages

• High Accuracy and Stability: Provides precise signal conversion for improved process control.

• HART Communication Support: Enables remote diagnostics and device configuration for smart field instruments.

• Advanced Diagnostics: Real-time detection of signal abnormalities, wiring issues, and self-monitoring capabilities.

• Strong Noise Immunity: Designed to function reliably in electrically noisy environments.

• Compact Design: High channel density reduces control panel size and installation cost.

• System Integration: Seamless integration with Yokogawa control systems ensures compatibility and performance.

• Enhanced Reliability: Built for mission-critical environments requiring 24/7 operational integrity.

FAQ

1. What type of analog signals does the NFAI143-500/A4500 support?

   The module supports standard 4-20 mA DC signals, commonly used in industrial process measurement applications.

2. Does this module support HART communication?

   Yes, it is fully compatible with HART-enabled field devices, allowing diagnostics and configuration through the control system.

3. What is the resolution of the analog-to-digital conversion?

   It offers a 16-bit resolution, ensuring high accuracy and precision in signal processing.

4. How many channels does this module provide?

   It provides 16 independent analog input channels, suitable for high-density installations.

5. What diagnostic features are built into this module?

   It includes open-circuit detection, signal fault monitoring, and internal self-diagnostics for improved system reliability.

6. What is the update rate for each channel?

   The typical update rate is around 50 milliseconds per channel, allowing real-time data acquisition for control systems.

7. How does the module ensure isolation and signal integrity?

   Each channel is optically isolated from the system bus to prevent ground loops and interference.

8. Can the module be used in redundant configurations?

   Yes, redundancy is supported at the system level to ensure continuous operation and fault tolerance.

9. What protection does the module have against noise and interference?

   The NFAI143-500/A4500 uses advanced filtering and isolation techniques to provide high noise immunity in harsh industrial environments.

10. How does the module interface with Yokogawa control systems?

    It connects via the system bus and integrates seamlessly with CENTUM VP and ProSafe-RS platforms for centralized control.
