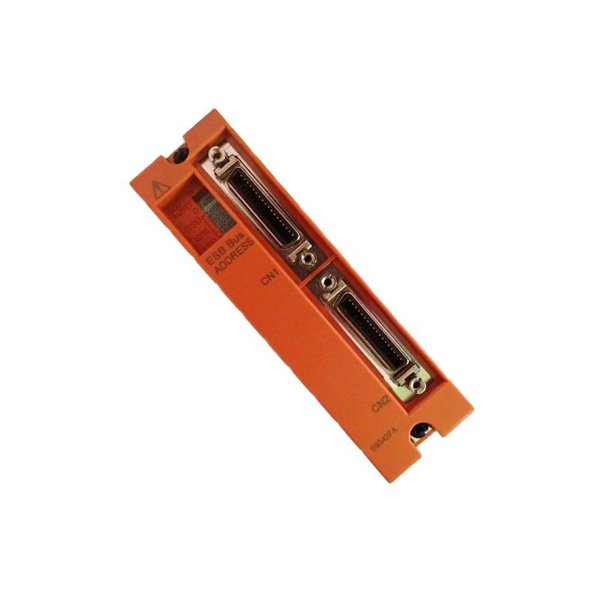

Yokogawa S9342FA Dual-Channel Bus Interface Module

The Yokogawa S9342FA Dual-Channel Bus Interface Module is designed for connecting two ESB / N-ESB bus channels in Yokogawa distributed control systems (DCS). It provides a high-reliability interface between I/O modules and the bus network, allowing dual-channel operation for redundancy and increased system availability. Its compact and modular design ensures easy integration into Yokogawa racks while maintaining signal integrity across all connected modules.

Product Parameters

Applications

The S9342FA is used for dual-channel bus connections in Yokogawa DCS systems. Typical applications include:

• Connecting multiple I/O modules to two separate bus channels

• Providing redundancy for critical process control signals

• Ensuring signal integrity and reliable communication across racks

• Industrial process automation in oil & gas, chemical, water treatment, and power generation

Product Advantages

• Dual-Channel Redundancy: Supports two independent bus channels for high availability

• Compact Modular Design: Easily integrates into Yokogawa I/O racks

• Reliable Communication: Maintains signal integrity across the bus network

• Opto-Isolated: Protects module electronics from electrical noise and surges

• Simplified Installation: Reduces wiring complexity in control cabinets

• Industrial-Grade Durability: Wide operating temperature and humidity range

FAQ

1. Q: How many bus channels does the S9342FA support?

   A: It supports two independent ESB/N-ESB bus channels.

2. Q: What type of connector is used?

   A: Multi-pin connector compatible with Yokogawa modules.

3. Q: Is the module electrically isolated?

   A: Yes, it uses opto-isolation between bus channels and electronics.

4. Q: Can it be used for redundant bus configurations?

   A: Yes, it is specifically designed for dual-channel redundancy.

5. Q: What are the operating temperature and humidity ranges?

   A: –20 °C to +60 °C, 5–95% RH non-condensing.

6. Q: How is it mounted?

   A: Installed in Yokogawa I/O racks or terminal boards.

7. Q: Does it provide diagnostic capabilities?

   A: Yes, basic bus status and connectivity diagnostics are available.

8. Q: Can multiple modules be connected in series?

   A: Yes, following Yokogawa bus topology rules.

9. Q: Does it protect against electrical surges?

   A: The opto-isolation safeguards the module electronics from bus surges.

10. Q: What commissioning tests are recommended?

    A: Verify bus continuity, signal integrity, and controller communication.
