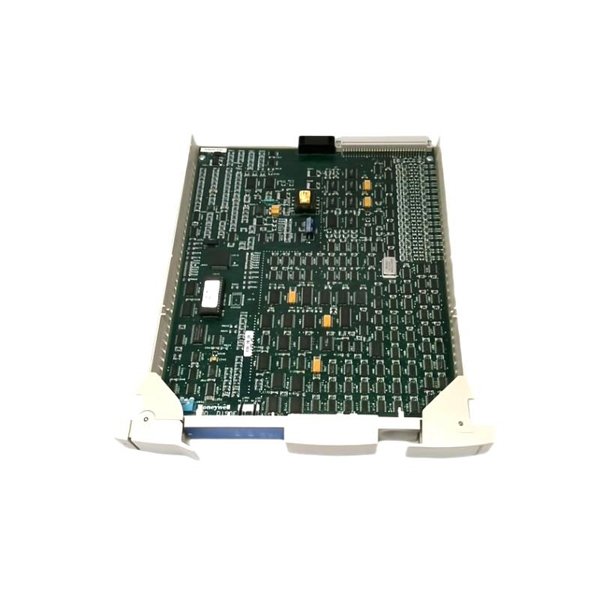

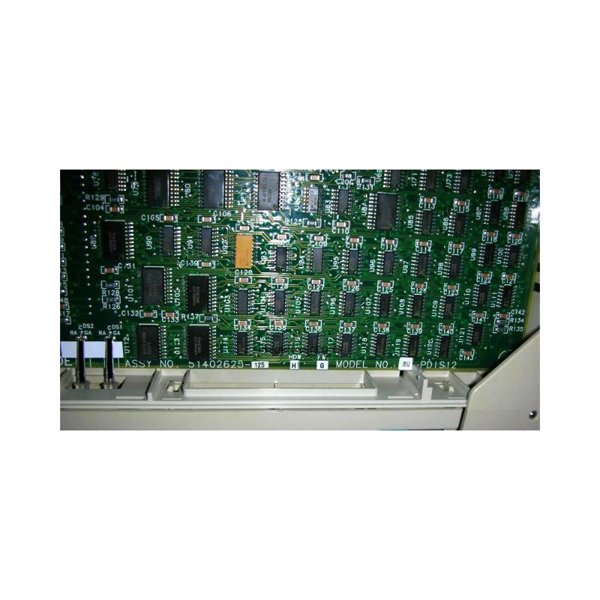

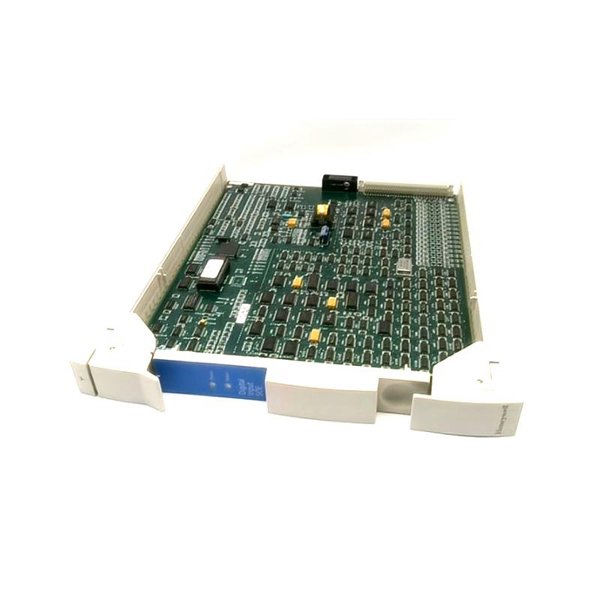

Honeywell MU-PDIS12 51402625-125 Digital Input Processor

The Honeywell MU-PDIS12 (Part Number: 51402625-125) is a Digital Input Processor designed to handle multiple digital input signals within industrial automation systems. It captures and processes digital signals from various field devices, ensuring accurate data acquisition and system monitoring.​

Key Features

• Digital Input Support: Accommodates up to 32 digital inputs from sensors or switches.​

• Sequence of Events Recording: Records event order and timestamps for critical data analysis.​

• Redundancy Support: Enhances system reliability by supporting redundant configurations.​

• Conformal Coating: Protects against humidity and chemical gases, enhancing durability.​

• Compatibility: Seamlessly integrates with Honeywell’s TDC3000 platform.​

Technical Specifications

Applications

The MU-PDIS12 is utilized in various industrial settings, including:​

• Power Generation: Monitoring and controlling inputs in power plants, especially nuclear facilities.​

• Manufacturing: Integrating with automation systems for process control and monitoring.​

• Chemical Processing: Ensuring accurate data acquisition from field devices in hazardous environments.​

Advantages

• Enhanced Event Monitoring: Provides detailed event records for troubleshooting and diagnostics.​

• Reliable Performance: Durable construction ensures operation in demanding environments.​

• Easy Integration: Designed for smooth compatibility with Honeywell DCS systems.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the MU-PDIS12?

   • The MU-PDIS12 processes up to 32 digital input signals from field devices, facilitating accurate data acquisition and system monitoring.​

2. Is the MU-PDIS12 compatible with other Honeywell systems?

   • Yes, it seamlessly integrates with Honeywell’s TDC3000 platform.​

3. What industries commonly use the MU-PDIS12?

   • Industries such as power generation, manufacturing, and chemical processing utilize the MU-PDIS12 for monitoring and control applications.​

4. Does the MU-PDIS12 support redundancy?

   • Yes, it supports redundant configurations to enhance system reliability.​

5. What protection features does the MU-PDIS12 have?

   • It features a conformal coating that protects against humidity and chemical gases, enhancing durability.​

6. What are the dimensions and weight of the MU-PDIS12?

   • The dimensions are 370 x 260 x 300 mm, and it weighs 1.21 kg.​

7. What input voltage ranges does the MU-PDIS12 support?

   • It supports 20/30 VDC and 90/132 VAC RMS input voltages.​

8. Is the MU-PDIS12 suitable for use in nuclear power plants?

   • Yes, it is designed for applications in nuclear power plants.​

9. How does the MU-PDIS12 enhance event monitoring?

   • It records the sequence of events with timestamps, providing detailed records for troubleshooting and diagnostics.​

10. What is the manufacturing year of the MU-PDIS12?

    • The MU-PDIS12 was manufactured in 2020.
