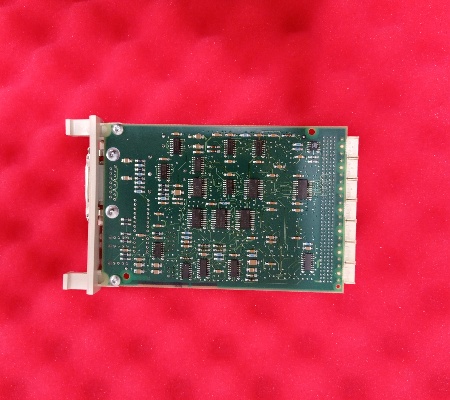

ABB CI540 3BSE001077R1 S100 I / O Bus Extension Board

The ABB CI540 3BSE001077R1 is an I/O bus extension for the ABB S100 system. It increases the number of input/output devices that can be connected to the controller. This allows for more complex automation systems and larger industrial processes.

The CI540 itself is a small and lightweight module measuring 234 x 108 x 31.5 mm and weighing 0.115 kg. It has 16 channels for 24 V DC input with current sinking capability. The channels are divided into two independent groups of eight, each with voltage monitoring.

It is an add-on component that extends the scope of an industrial control system by allowing more sensors and devices to be connected.

The CI540 typically has 8 analog input channels.

Current input: 4–20 mA.

Voltage input: 0–10 V or other standard voltage ranges, depending on configuration.

Input impedance is typically high to ensure the module does not load the signal source.

16-bit resolution is provided for each input channel, allowing for precise measurement and control.

Accuracy is typically ±0.1% of full scale, but this may depend on the specific input range (voltage or current) and configuration.

Electrical isolation is provided between each input channel and the system backplane, ensuring protection against ground loops and electrical noise.

Signal filtering and debouncing can be configured to filter out noise or smooth fluctuating signals.

The module is powered by 24 V DC.

Communicates with the central control system via the S800 I/O backplane, typically using a fiber optic bus or fieldbus communication protocol.

It is designed to be integrated into an S800 I/O rack for modular installation within an ABB distributed control system.

Frequently asked questions about the product are as follows:

-Can the CI540 module be used in hazardous environments?

Yes, like many ABB I/O modules, the CI540 can be used in hazardous environments, provided it is installed and certified. You should verify that the specific model you are using complies with the ATEX, IECEx or other applicable certifications required for use in explosive atmospheres or other hazardous locations.

-What maintenance is required for the CI540 module?

Regularly check the wiring and connections to ensure there is no damage or corrosion. Monitor the diagnostic logs in ABB System 800xA or the control generator to check for any potential problems. Test the input signals to ensure they are within the expected range.

-Can the CI540 module be used with third-party systems?

The CI540 module is primarily designed to integrate with ABB's S800 I/O system and is optimized for ABB's distributed control systems. Integrating it with a third-party system is possible, but usually requires additional hardware to bridge the communication between the ABB system and the third-party control system.
