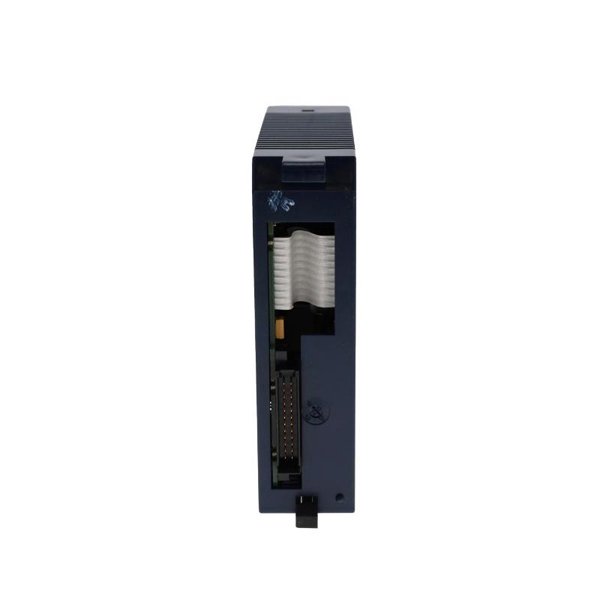

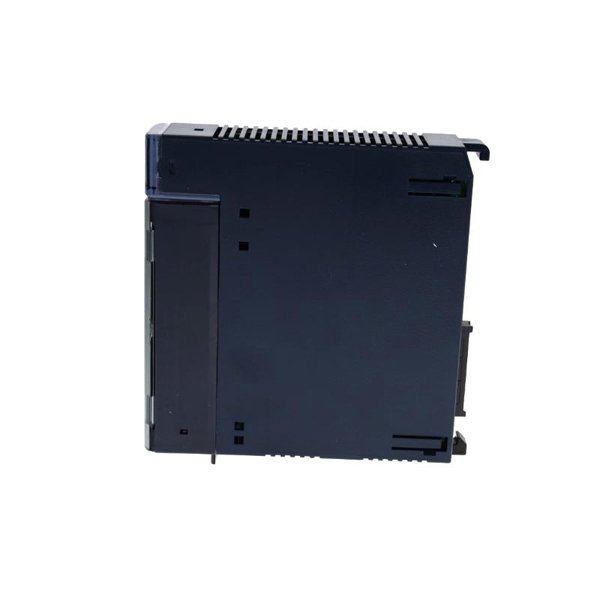

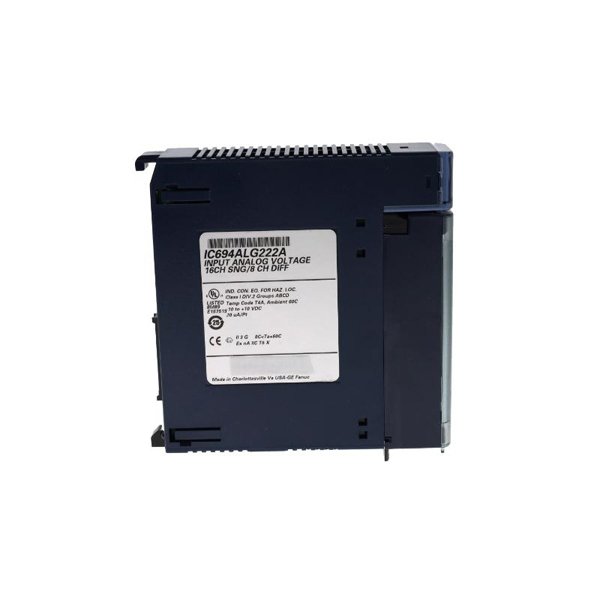

General Electric IC694ALG222-DB Analog Input Module

The GE IC694ALG222-DB is a 16-channel analog voltage input module designed for the PACSystems RX3i series. It provides high-precision voltage measurements, supporting both single-ended and differential input configurations. This module is ideal for applications requiring accurate analog signal acquisition, such as process control, data acquisition, and industrial automation systems.​

Technical Specifications

Applications

The IC694ALG222-DB module is utilized in various industrial applications, including:​

• Process Control: Monitoring and controlling variables such as temperature, pressure, and flow in manufacturing processes.​

• Data Acquisition Systems: Collecting analog signals from sensors and transducers for analysis and monitoring.​

• Industrial Automation: Integrating with PLCs and SCADA systems for automated control of machinery and processes.​

• Energy Management: Measuring voltage levels in power distribution systems for efficient energy utilization.​

• Environmental Monitoring: Recording analog signals from environmental sensors for compliance and reporting.​

Advantages

• High Accuracy: Provides precise voltage measurements with 12-bit resolution.​

• Flexible Configuration: Supports both single-ended and differential input modes.​

• Fast Update Rate: Ensures timely data acquisition for real-time monitoring.​

• Robust Design: Built to withstand industrial environments with wide temperature and humidity ranges.​

• Easy Integration: Seamlessly integrates with GE’s PACSystems RX3i series and other compatible systems.​

• Certified Compliance: Meets international standards for safety and performance.​

Frequently Asked Questions (FAQs)

1. What is the primary function of the IC694ALG222-DB module?

   It serves as an analog input module, converting voltage signals into digital data for processing by automation systems.

2. How many input channels does it support?

   It supports 16 single-ended or 8 differential input channels.

3. What voltage ranges are compatible with this module?

   It accepts 0 to 10 V (unipolar) and -10 to +10 V (bipolar) input ranges.

4. Can the module be used in high-temperature environments?

   Yes, it operates effectively within a temperature range of 0°C to 60°C.

5. Is the module suitable for use in humid conditions?

   Yes, it can function in environments with 5% to 95% relative humidity, non-condensing.

6. Does it require calibration?

   No, the module is factory calibrated for immediate use.

7. What is the resolution of the analog-to-digital conversion?

   It offers a 12-bit resolution for precise measurements.

8. Is the module compatible with other GE automation systems?

   Yes, it is designed for seamless integration with GE’s PACSystems RX3i series.

9. What certifications does the module have?

   It is certified by UL, CE, ATEX, and CSA, ensuring compliance with international standards.

10. Can the module be mounted on a DIN rail?

    Yes, it supports both DIN rail and panel mounting options.
