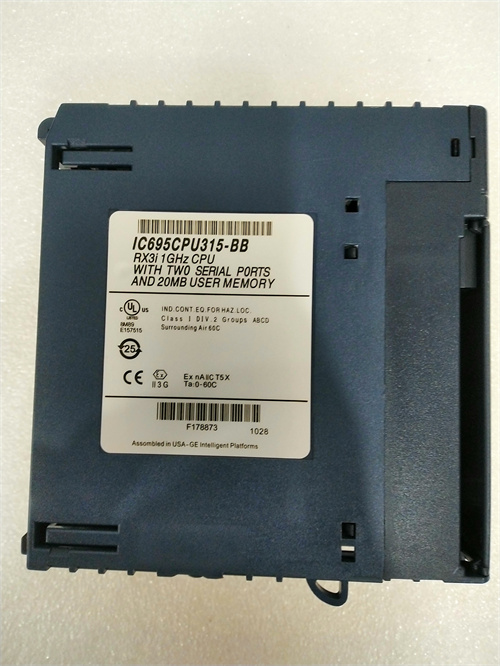

GE IC695CPU315 Product Overview

GE IC695CPU315 is a high-performance central processing unit(CPU)of the GE Fanuc PACSystems RX3i series.The following is a detailed introduction to the product.

Basic attributes

Brand:GE(General Electric)

Series:PACSystems RX3i

Model:IC695CPU315

Processor type:Intel Celeron-M microprocessor

Processing speed:1 GHz

User memory:20 MB(RAM)

Flash memory:20 MB

Technical specifications

I/O operations:Up to 32K I/O operations can be performed per second

Program block support:Supports up to 512 program blocks,with a maximum capacity of 128 per program block KB

Communication interface

Ethernet interface:used to establish Ethernet communication

Serial interface:RS-232 and RS-485,equipped with 15-pin and 9-pin connectors respectively

Power requirement:3.3 volts DC and 1 amp or 5 volts DC and 1.2 amps

Operating temperature range:0 to 60 degrees Celsius

Firmware upgrade:Upgradable within the system

Features

Powerful computing power:Adopts Intel Celeron-M microprocessor,with powerful computing power and data processing capabilities,and can quickly execute various control algorithms and data processing tasks.

Flexible memory configuration:Users can configure memory capacity according to actual needs to meet the requirements of complex control algorithms and data processing.

Rich input/output functions:Supports up to 512 program blocks and 32K I/O operations per second,can handle a large number of input and output signals,and is suitable for complex industrial processes.

Multiple programming language support:Supports programming languages​​such as C language,ladder logic,structured text,etc.Users can choose the appropriate programming language for program development according to actual needs,simplify the development process and improve development efficiency.

Advanced communication options:Provides multiple communication interfaces such as Ethernet interface and serial interface,which can easily communicate and exchange data with other devices or systems to achieve distributed control and monitoring.

Power management function:With power management function,it can monitor the power status and power load,provide power fault detection and alarm function,and help ensure the stable operation of the system.

Hardware protection function:Integrates various hardware protection mechanisms,including overcurrent protection,overheating protection,short circuit protection,etc.,which can effectively prevent power overload,damage and other abnormal conditions,and ensure the safe operation of the system.

Hot plug support:Supports hot plug function,and can plug and unplug modules while the system is running without shutting down or restarting the system,providing users with a convenient module replacement and maintenance method.

Application field

GE IC695CPU315 is widely used in various industrial automation and control systems,including but not limited to the following fields

Industrial machinery:such as machine tools,packaging machines,conveying equipment,etc.,used to drive and control mechanical movement.

Automated production line:In the automated production line,it is used to drive and control various actuators on the production line,such as conveyor belts,robotic arms,lifting platforms,etc.,to realize automated production processes.

Robotics:used to drive and control the joint motion,end effector,etc.of robots to achieve precise motion control.

Chemical and process control:In the field of chemical and process control,it can be used to drive and control various valves,pumps and actuators to achieve precise flow,pressure and temperature control.

Precision instruments:used to drive and control the various moving parts of precision instruments,such as focus adjustment,platform movement,etc.

Laboratory research:In laboratory research,it can be used to drive and control the moving parts of experimental equipment,such as rotating platforms,sample turntables,etc.,to achieve automation and precise control of the experimental process.
