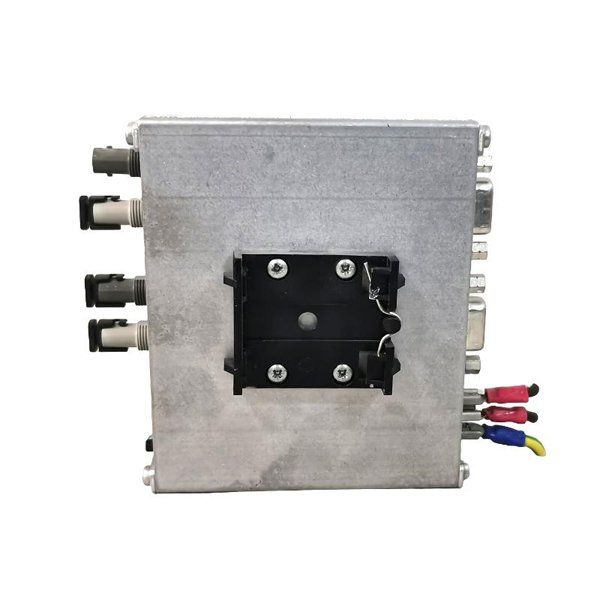

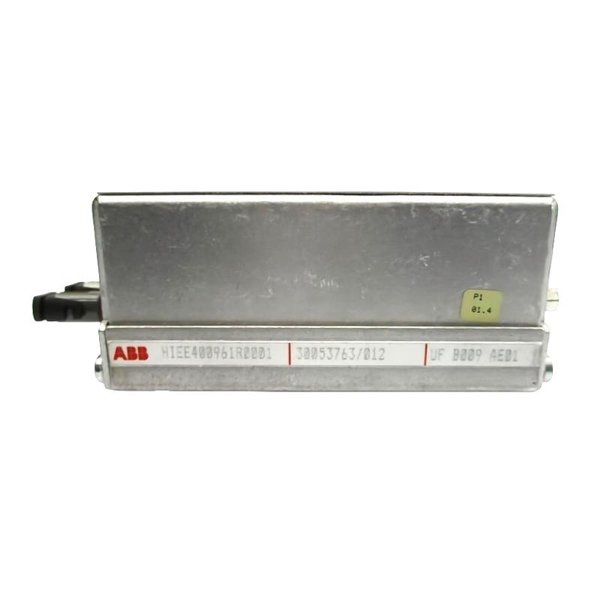

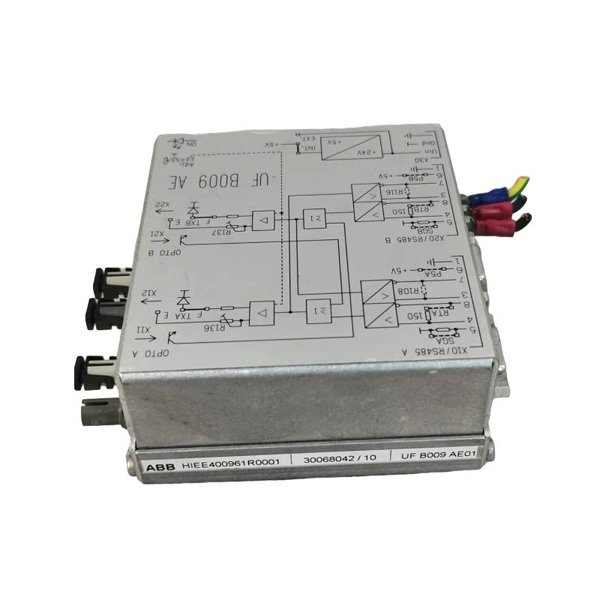

ABB UFB009AE01 HIEE400961R0001 Power Supply

The ABB UFB009AE01 HIEE400961R0001 is a high-reliability power supply unit specifically engineered for ABB’s industrial control systems, including Symphony, Advant, and Freelance series. This power module ensures stable and regulated DC voltage to critical control modules, safeguarding the operation of distributed control systems (DCS) and automation platforms under demanding industrial conditions.

Designed with redundant protection circuits, noise suppression, and high efficiency, the UFB009AE01 guarantees uninterrupted power delivery even in harsh electrical environments. It is widely used in power generation, chemical processing, oil & gas, and manufacturing industries where reliable energy conversion and distribution are essential for maintaining process stability and safety.

Product Specifications

Product Applications

• Power Generation Facilities: Provides stable DC power for turbine control systems, protection relays, and control modules.

• Oil & Gas Operations: Supports remote terminal units, compressor station control, and pipeline automation.

• Chemical and Petrochemical Plants: Ensures uninterrupted supply to process controllers and safety shutdown systems.

• Manufacturing Plants: Delivers regulated power to PLCs, HMIs, and I/O modules in production automation lines.

• Water and Wastewater Treatment Plants: Powers SCADA units, sensor systems, and pump control systems.

• Metallurgical Industries: Supplies power to DCS nodes, furnace control panels, and drive systems.

Product Advantages

• High Electrical Stability: Delivers regulated DC voltage with minimal ripple for sensitive control electronics.

• Wide Input Range: Operates on both AC and DC inputs, making it flexible for various industrial infrastructures.

• Comprehensive Protection: Integrated over-voltage, short-circuit, and thermal protections ensure safe operation.

• Fanless Cooling: Convection design reduces mechanical wear and enhances long-term reliability.

• Industrial Compliance: Meets international EMC and safety standards for critical automation systems.

• Compact & Modular: Space-efficient design allows easy integration into ABB control cabinets.

• High Efficiency: Reduces energy loss and heat generation, improving overall system performance.

• Designed for Harsh Environments: Tolerates wide temperature ranges and electrical noise environments.

FAQ

1. What is the regulated output voltage of the UFB009AE01?

   It provides a stable 24 VDC output with tight voltage regulation under varying load conditions.

2. Can the power supply operate with direct DC input?

   Yes, it accepts a wide DC input range from 100 to 300 VDC.

3. What protection features are built into the unit?

   It includes over-voltage, over-current, short-circuit, and thermal shutdown protections.

4. Is the module hot-swappable in ABB systems?

   No, for safety reasons the system should be powered down before replacing the unit.

5. How is heat managed in this power supply?

   It uses a fanless convection cooling system, ensuring silent and maintenance-free operation.

6. Does it support redundancy in power configurations?

   Yes, multiple units can be wired in parallel for redundancy in critical applications.

7. What type of isolation does the module provide?

   It offers 3 kV AC isolation between input and output for safety and noise immunity.

8. Is this module compatible with both Symphony and Advant systems?

   Yes, it is fully compatible with both ABB DCS series.

9. What is the typical efficiency of the power supply?

   The module delivers an efficiency rating of 88% or higher under nominal load.

10. Does the power supply include status monitoring?

    Yes, it has LED indicators for power status and fault conditions for quick diagnostics.
