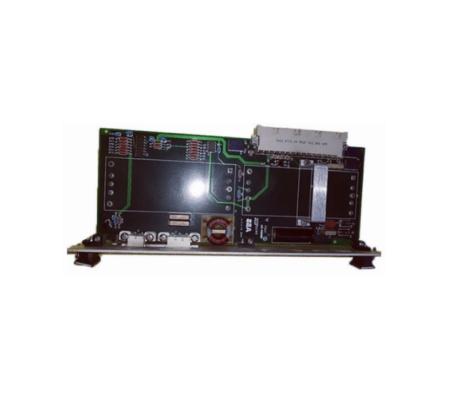

ABB 086369-001 Harmonic Attn Module

ABB's 086369-001 harmonic attenuation module is a specialized component used to reduce or filter harmonics in electrical systems, especially in industrial environments. Harmonics are caused by non-linear loads and can cause inefficiencies, equipment overheating, and disruptions in electrical system operation. The 086369-001 module helps mitigate these issues by attenuating harmonic frequencies and improving overall power quality.

The 086369-001 Harmonic Attenuation Module reduces or attenuates harmonics generated by non-linear loads. Harmonics can cause problems such as voltage distortion, transformer overheating, excessive cable currents, and reduced efficiency of motors and other equipment.

By filtering out unwanted harmonic frequencies, the module helps improve power quality, ensuring that electrical systems operate more efficiently and reliably. This can improve equipment performance and extend the life of electrical components.

Harmonics can cause premature equipment failure, overheating of cables, and damage to sensitive electronic equipment. The 086369-001 module helps prevent these problems by filtering harmonics before they can cause damage.

Frequently asked questions about the product are as follows:

-What is the main function of the ABB 086366-004 switch output module?

The main function of the 086366-004 switch output module is to take the digital output signal from the PLC or control system and convert it into a switch output that controls an external device.

-What types of outputs are available on the ABB 086366-004?

The 086366-004 module includes relay outputs, solid-state outputs, or transistor outputs.

- How is the ABB 086366-004 powered?

The module is powered by a 24V DC power supply.
