GE VMIVME1150 332-001150-120 Digital Input Board

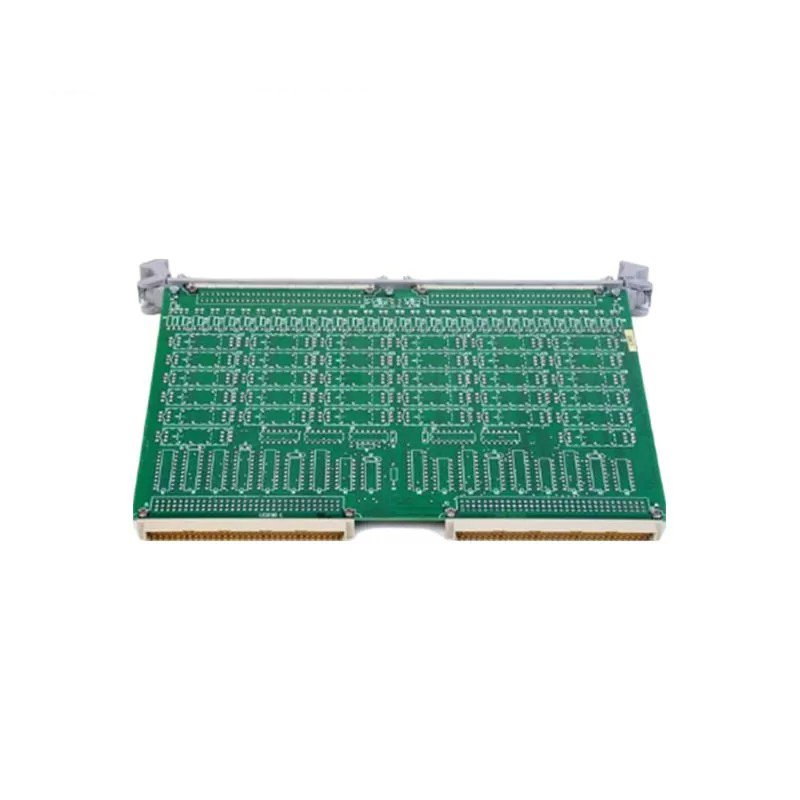

The GE VMIVME1150 332-001150-120 is a specialized hardware component for GE’s VMIVME industrial computing systems. It functions as a 64-bit optically coupled digital input board, playing a crucial role in industrial automation and control applications.

Key Functions

Digital Input Acquisition: This board reads the on/off status of various digital sensors. It then transmits this data, representing the state of physical devices or processes, to the VMIVME system for further processing and control.

Optical Isolation: The optical coupling provides electrical isolation between the input signals and the board’s internal circuitry. This feature significantly enhances noise immunity and protects the system from voltage spikes or ground loops.

Technical Specifications

• Form Factor: Standard VME double height Eurocard (160 x 233.5mm)
• Input Channels: 64 optically coupled digital inputs
• Input Voltage: 5V to 48VDC
• Isolation: 1000V sustained, 7500V pulsed
• Input Filtering: Options available for enhanced noise rejection
• I/O Connectors: Dual connectors for flexibility in system integration
• Input Type: Contact closure sensing, voltage sourcing, or current sinking
• Power Consumption: Approximately 5W
• Operating Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Vibration: 5g RMS, 10 to 500Hz
• Shock: 30g, half-sine, 11ms pulse

Applications

The GE VMIVME1150 332-001150-120 finds extensive use in various industrial sectors, including:

• Process Automation: Monitoring and controlling industrial processes in manufacturing, oil and gas, and power generation.
• Machine Control: Integrating with programmable logic controllers (PLCs) to manage and automate machinery operations.
• Data Acquisition: Collecting data from sensors and instruments for analysis and decision-making.

Benefits

High Reliability: The board’s robust design and rigorous testing ensure long-term operation in demanding industrial environments.

Versatility: The wide range of input options and flexible configuration make it suitable for diverse applications.

Isolation: The optical coupling provides excellent noise immunity and protection against electrical disturbances.

Performance: The 64-bit architecture enables high-speed data acquisition and processing.

By incorporating the GE VMIVME1150 332-001150-120, you ensure reliable and efficient data acquisition and control in your industrial automation systems.
