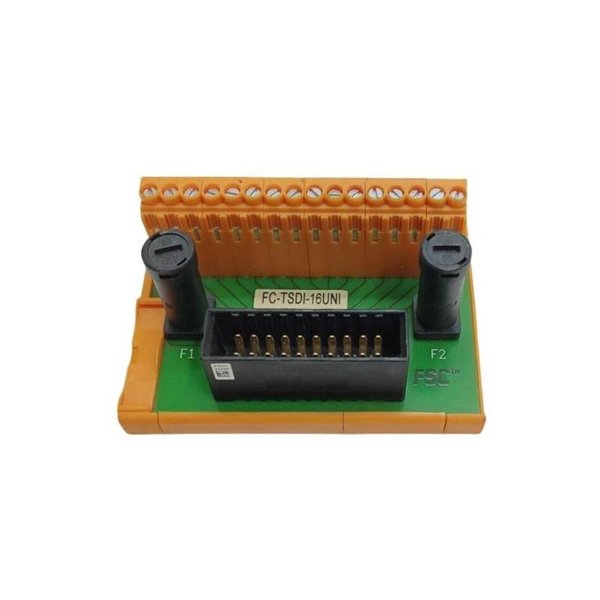

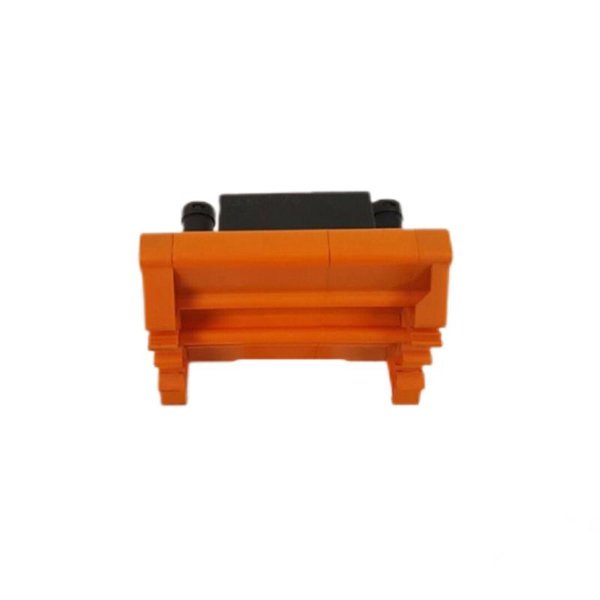

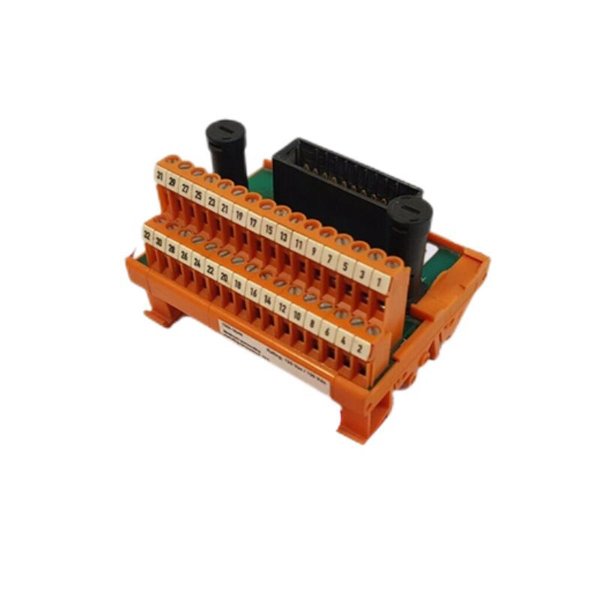

Honeywell FS-TSDI-16UNI Safety Analog Input FTA Module

The Honeywell FS-TSDI-16UNI is a versatile safety analog input module designed for Functional Test Automation (FTA) systems within industrial safety and control environments. This module supports the acquisition of analog signals from safety-related devices and sensors, ensuring high integrity and reliability in safety instrumented systems (SIS).

Designed to comply with international safety standards, the FS-TSDI-16UNI is engineered to provide robust performance in harsh industrial conditions. Its capability to process multiple analog inputs simultaneously allows operators to monitor critical parameters such as temperature, pressure, and flow with a high degree of accuracy and safety compliance.

The compact design and durable construction make the module suitable for various applications in sectors like oil and gas, petrochemical, power plants, and manufacturing. Furthermore, the module’s integration within safety control architectures aids in preventing hazardous situations through precise signal processing and early fault detection.

Product Parameters

Applications

The Honeywell FS-TSDI-16UNI is widely employed in safety-critical environments where precise analog signal monitoring is required. Key application areas include:

• Oil & Gas: Monitoring safety-related analog signals from pressure, temperature, and flow sensors.

• Chemical Processing: Ensuring safe operation by continuously measuring hazardous process variables.

• Power Generation: Analog input for safety instrumentation such as turbine speed or boiler temperature sensors.

• Pharmaceutical Manufacturing: Accurate signal acquisition from sensors monitoring critical production parameters.

• Water and Wastewater Treatment: Safety signal processing for environmental control systems.

• Industrial Automation: Analog input processing for safety systems in manufacturing automation.

Advantages

• Universal Input Compatibility: Supports a variety of analog inputs including current, voltage, RTD, and thermocouple signals, enhancing flexibility.

• High Safety Integrity: Certified to SIL 3 level, ensuring compliance with rigorous safety standards.

• Accurate and Fast Response: Provides accurate measurements with fast response times, critical for safety decision-making.

• Robust Electrical Isolation: Minimizes noise and prevents cross-talk between channels, ensuring signal fidelity.

• Compact and Lightweight: Designed to optimize panel space with a compact footprint and light weight.

• Wide Operating Range: Reliable performance in demanding industrial environments with broad temperature and humidity tolerance.

• Diagnostic Capability: Advanced diagnostics enable prompt detection of faults, reducing downtime.

• Flexible Installation: Suitable for DIN rail or panel mounting for convenient integration.

Frequently Asked Questions (FAQ)

Q1: How many analog inputs does the FS-TSDI-16UNI support?

A1: It supports 16 analog inputs.

Q2: What types of analog signals are compatible with this module?

A2: It accepts universal inputs such as 4-20 mA, 0-10 V, RTD, and thermocouples.

Q3: What safety certification does the module have?

A3: The module is certified to SIL 3 under IEC 61508.

Q4: What is the module’s response time?

A4: The response time is less than 50 milliseconds.

Q5: What are the physical dimensions of the FS-TSDI-16UNI?

A5: The dimensions are 90 × 70 × 60 mm.

Q6: What is the weight of the module?

A6: The weight is approximately 0.36 kg.

Q7: Can the module be mounted on a DIN rail?

A7: Yes, it supports both DIN rail and panel mounting.

Q8: Does the module provide isolation between input channels?

A8: Yes, it offers channel-to-channel and system isolation.

Q9: What temperature range can the module operate in?

A9: It operates reliably between -20°C and +60°C.

Q10: Is this module compatible with Honeywell’s safety systems?

A10: Yes, it integrates seamlessly with Honeywell’s safety instrumented systems.
