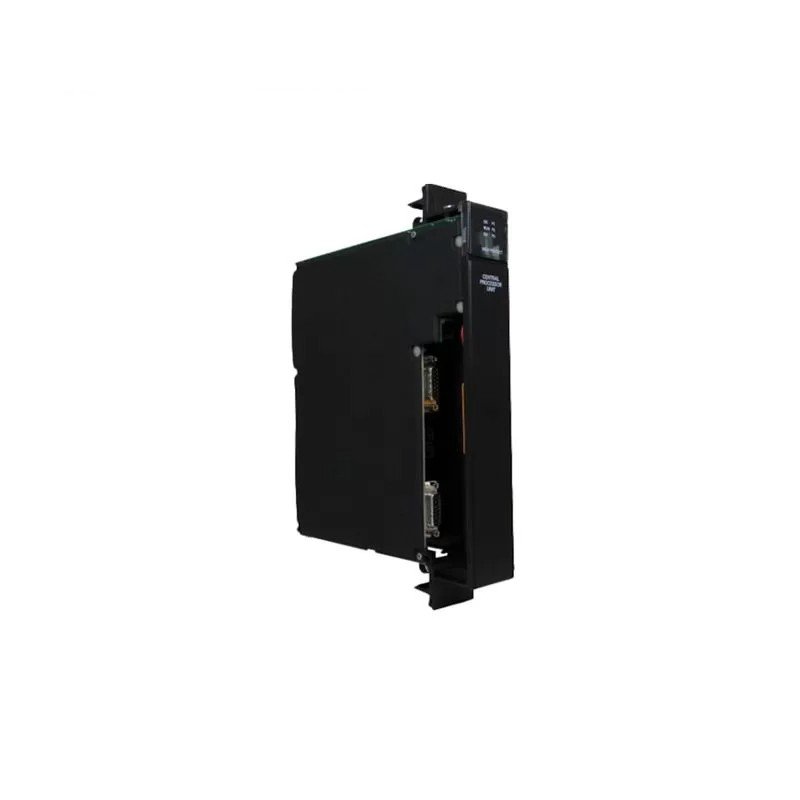

GE IC697CPX935 Single-Slot PLC CPU
Manufacturer: GE Fanuc (Emerson)
Product Number: IC697CPX935
Category: Single-Slot PLC CPU Module (Series 90-70)
Processor: 80486DX4 microprocessor
Clock Speed: 96 MHz
Boolean Execution Time: 0.4 μs per boolean function
Memory: 1 MB battery-backed RAM, 256 KB non-volatile flash memory
Discrete I/O Capacity: Up to 12,000 points
Analog I/O Capacity: Up to 8,000 points
Communication Ports: 1 × RS-232, 2 × RS-485
Ethernet: 10/100 Mbps built-in Ethernet
Bus Interface: VME C.1 Standard, single-slot, hot-swappable
Operating Temperature: 0°C to +60°C
Power Consumption: 3.1 A @ 5VDC
Features: Floating point unit, battery-backed calendar clock, password protection, status LEDs, in-system firmware upgradeable
System Compatibility: GE Series 90-70 PLC, all IC697 I/O modules
Application: Real-time control of machines, processes, material handling, industrial automation
Product Description
The IC697CPX935 is indeed a versatile PLC CPU module manufactured by GE Automation and Controls. Here are some key points based on your description:
Key Features and Specifications
- Module Type: Central Processing Unit (CPU)
- Number of Slots: 1 (Single slot)
- Current Required: 3.1 Amps
- Processing Power: Utilizes a 96MHz microprocessor capable of performing floating point calculations every 0.4 microseconds.
- Memory:
- RAM: 1 megabyte onboard, maintained by IC697ACC701 battery.
- Flash Memory (NVRAM): Up to 256 kilobytes available for user data.
- Firmware: Stored in flash memory; firmware updates do not require disassembly or EPROM replacement.
- Communication:
- Serial Ports: Three ports supporting RS-232 and RS-485 communication.
- Interfaces: Supports various modules including IC660/IC661 I/O, IC697 I/O, programmable alphanumeric display coprocessors, bus controllers, LAN interfaces, and communication modules.
- Operating Environment: Requires a cooling fan capable of at least 70 cubic feet per minute in environments exceeding 50°C (122°F) to maintain safe operational temperatures.
- Programming and Configuration:
- Configured via a connected computer running MS-DOS or software applications compatible with Windows 95 or Windows NT.
- Operational settings secured by software password or memory protect switch.
- No DIP switches or jumpers needed for configuration.
Application
- Suitable for applications requiring real-time control and capable of handling a mix of up to 12,000 I/O points, including analog I/O.
Installation
- Installation instructions typically involve powering off the rack, placing operational controls in the stop position, and following specific steps outlined in the product manual for correct setup.
