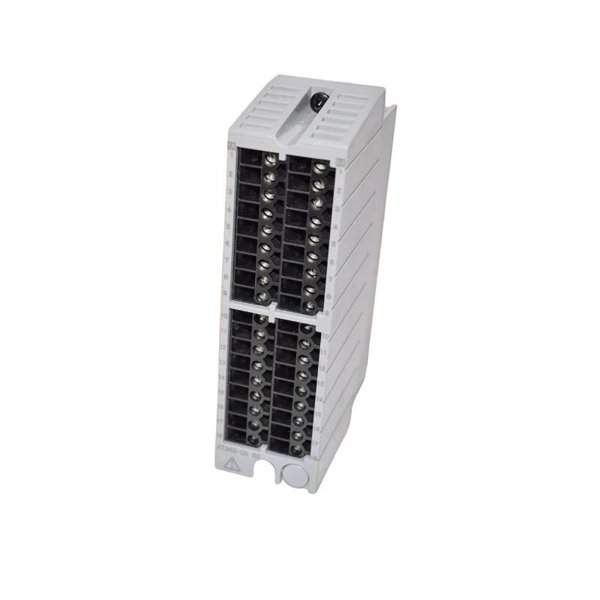

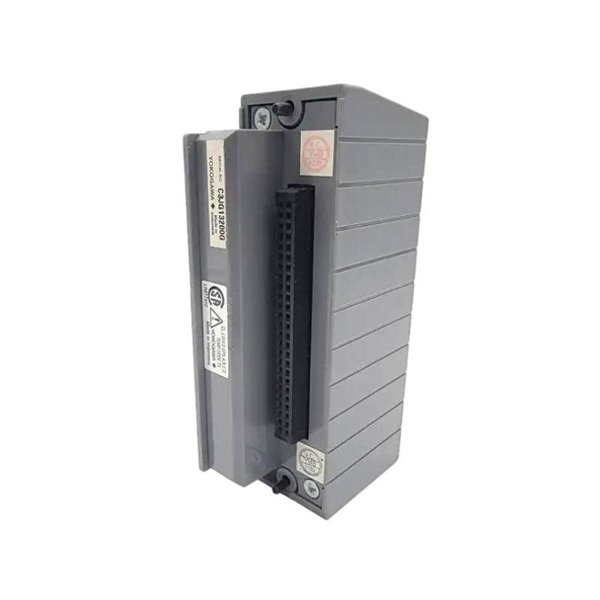

Yokogawa ATB5S-00 S2 Pressure Terminal Block

The Yokogawa ATB5S-00 S2 is an advanced pressure terminal block designed for precise and reliable pressure monitoring in industrial environments. Built to offer superior performance and durability, this terminal block is engineered for high-pressure applications that demand consistent accuracy and reliability. Featuring dual redundancy, the ATB5S-00 S2 ensures that the system continues to function seamlessly even in the event of a failure, making it ideal for mission-critical applications.

The terminal block is designed for easy integration into existing control systems and automation setups, offering minimal downtime and optimal system performance. Its compact design, along with advanced features like low contact resistance and high insulation resistance, makes the ATB5S-00 S2 a versatile choice for industries such as oil and gas, chemical processing, and power generation.

With its robust build quality and ease of integration, the ATB5S-00 S2 provides an effective solution for pressure measurement, regulation, and monitoring across various sectors, ensuring both safety and efficiency in the operation of automated systems.

Product Parameters

Applications

The ATB5S-00 S2 is engineered to be used in demanding industrial applications where high performance and accuracy in pressure measurement are essential. Some common applications include:

• Oil & Gas: Ideal for monitoring pressure in pipelines, storage tanks, and processing facilities, ensuring the efficient and safe operation of oil and gas extraction and transportation systems.

• Chemical Processing: The ATB5S-00 S2 is commonly used in reactors, pipelines, and tanks for precise pressure monitoring in chemical processing environments, which require high levels of safety and accuracy.

• Power Generation: Employed in boilers, turbines, and cooling systems, the ATB5S-00 S2 ensures optimal pressure levels are maintained in power generation plants, thus supporting system reliability and efficiency.

• Manufacturing & Automation: Integrated into automated systems, the ATB5S-00 S2 is used to regulate and monitor pressure in production lines, helping to ensure smooth operations and preventing system failures.

• HVAC Systems: Used for pressure regulation and monitoring in HVAC systems, the ATB5S-00 S2 helps maintain the performance and efficiency of heating, ventilation, and air conditioning operations.

Advantages

1. Dual Redundancy for Continuous Operation: The ATB5S-00 S2 features dual redundant connections, ensuring that the system continues to operate smoothly even if one connection fails, providing added reliability for critical applications.

2. Accurate Pressure Monitoring: The terminal block offers highly accurate pressure readings, ensuring that pressure data is transmitted reliably with minimal contact resistance (<1 ohm).

3. Compact and Lightweight: With dimensions of 114 x 32.6 x 60.5 mm and a weight of 0.2 kg, the ATB5S-00 S2 is space-efficient, making it suitable for systems with limited space.

4. Robust Design: Constructed with a polycarbonate enclosure, the ATB5S-00 S2 is resistant to chemicals, extreme temperatures, and mechanical damage, ensuring durability in demanding environments.

5. Wide Operating Temperature Range: With an operating temperature range of -40°C to 85°C, the ATB5S-00 S2 is adaptable to a variety of industrial environments, from freezing cold to intense heat.

6. Electrical Safety: The ATB5S-00 S2 has an insulation voltage rating of 500 VAC, ensuring safe operation in electrically sensitive environments.

FAQ

1. What is the maximum pressure the ATB5S-00 S2 can handle?

   The ATB5S-00 S2 can handle a maximum pressure of up to 1000 psi, which is suitable for high-pressure applications in industries such as oil and gas.

2. What voltage is required to operate the ATB5S-00 S2?

   The ATB5S-00 S2 operates on 24 VDC, a standard voltage used for most industrial control systems.

3. What materials are used in the construction of the ATB5S-00 S2?

   The ATB5S-00 S2 is constructed with a polycarbonate enclosure, which is resistant to physical wear and harsh chemicals, ensuring durability in challenging environments.

4. How does the ATB5S-00 S2 ensure accurate pressure readings?

   The ATB5S-00 S2 ensures accurate pressure readings by providing minimal contact resistance (<1 ohm), which enables stable data transmission to control systems.

5. Can the ATB5S-00 S2 be used in explosive environments?

   Yes, the ATB5S-00 S2 is designed for use in hazardous environments, but it is important to ensure compliance with local safety standards for specific applications.

6. What is the insulation voltage rating of the ATB5S-00 S2?

   The ATB5S-00 S2 has an insulation voltage rating of 500 VAC, ensuring electrical safety in industrial systems.

7. What is the temperature range in which the ATB5S-00 S2 operates?

   The ATB5S-00 S2 operates within a temperature range of -40°C to 85°C, making it suitable for both high and low-temperature environments.

8. How is the ATB5S-00 S2 installed into a system?

   The ATB5S-00 S2 is designed for easy installation, with clear and simple wiring connections, allowing it to be quickly integrated into existing systems.

9. What redundancy features does the ATB5S-00 S2 offer?

   The ATB5S-00 S2 features dual redundant connections, ensuring continuous operation even if one connection fails, which is crucial for high-reliability applications.

10. What safety features are included in the ATB5S-00 S2?

    The ATB5S-00 S2 includes a polycarbonate enclosure for environmental protection and a high insulation voltage rating (500 VAC), ensuring safe operation in electrically sensitive environments.
