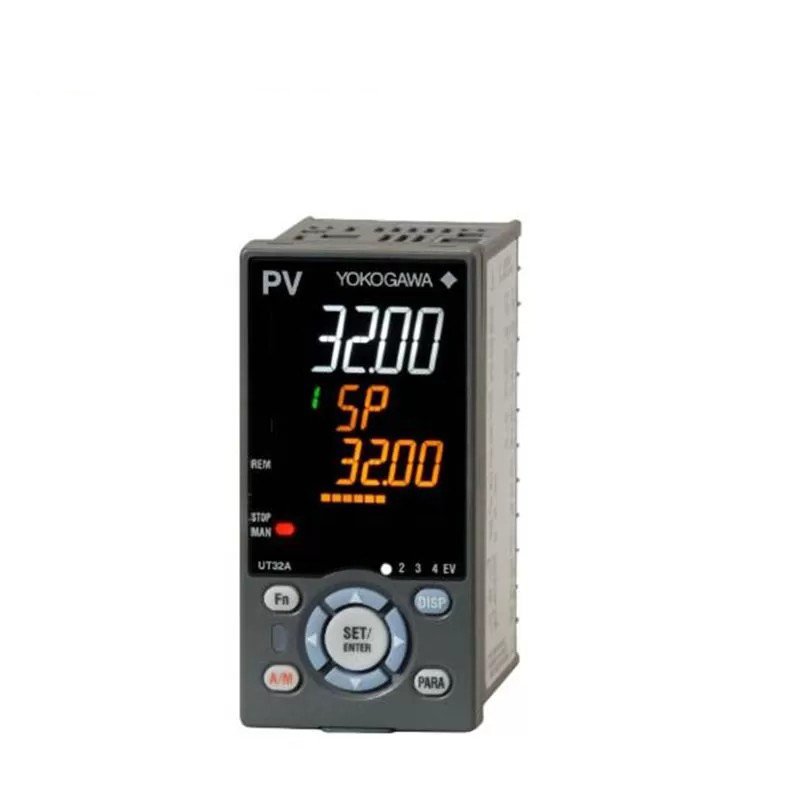

Yokogawa UT32A-010-00-00/CV Digital Indicating Controller

The YOKOGAWA UT32A-010-00-00/CV is a high-performance digital indicating controller designed for a wide range of industrial applications. It offers precise control and monitoring capabilities, ensuring optimal performance and reliability.

Technical Specifications

General Features:

• Control Modes: PID, ON/OFF, and fuzzy logic control
• Display: Large, clear LCD with backlight for easy readability

Input/Output:

• Input Types: Universal input supporting thermocouples, RTDs, and voltage inputs
• Output Types: Relay, voltage pulse, and current output

Performance:

• Sampling Period: 200 ms
• Control Period: 500 ms
• Accuracy: ±0.1% of span

Operating Conditions:

• Temperature Range: -10 to 50°C
• Humidity Range: 20 to 90% RH (non-condensing)

Power Supply:

• Voltage: 100 to 240 V AC, 50/60 Hz
• Power Consumption: Approximately 10 VA

Communication:

• Protocols: Modbus RTU
• Interface: RS-485

Compliance and Certifications:

• CE Marking: Conforms to European safety and EMC regulations
• UL Listed: Ensures compliance with North American safety standards

Applications

The YOKOGAWA UT32A-010-00-00/CV is suitable for various industrial applications, including:

• Process Control: Regulating temperature, pressure, and other process variables
• Manufacturing: Ensuring consistent quality and performance in production processes
• HVAC Systems: Controlling environmental conditions in commercial and industrial buildings
