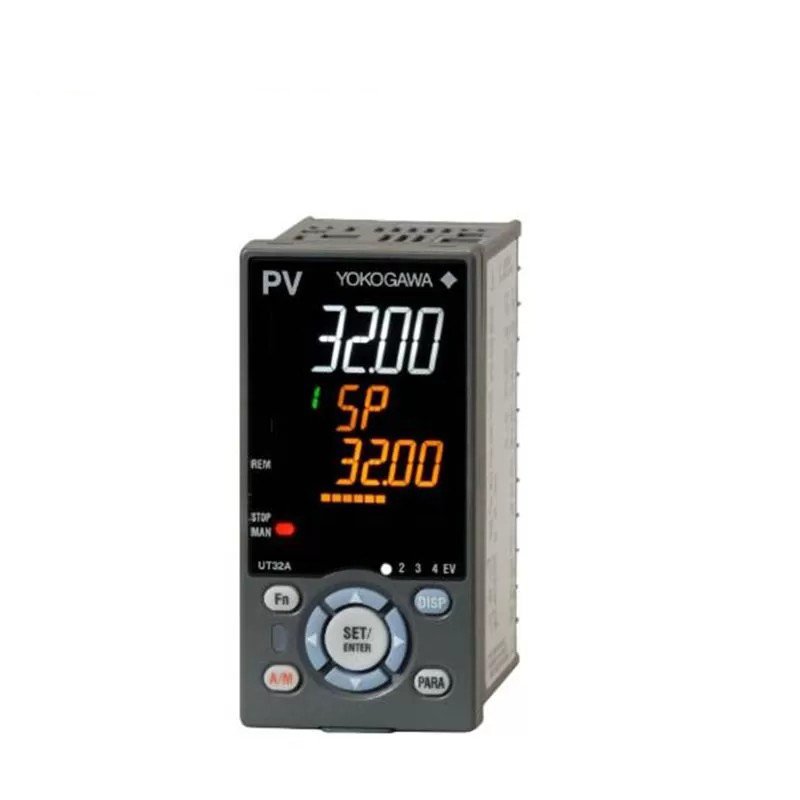

Yokogawa UT32A-200-11-00/MD Digital Indicating Controller

The Yokogawa UT32A-200-11-00/MD is a high-performance digital indicating controller. It provides precise temperature and process control for various industrial applications. The UTAdvanced series features a user-friendly interface and advanced control capabilities.

Technical Specifications

• Input Types: Thermocouple, RTD, Voltage, Current
• Control Output Types: Relay, Voltage Pulse, Current
• Display: Large LED display for process variable and setpoint
• Control Modes: PID, ON/OFF, Manual
• Communication: RS-485 Modbus RTU
• Power Supply: 100 to 240 VAC, 50/60 Hz
• Dimensions: 48 x 48 x 67 mm
• Operating Temperature Range: -10 to +50°C
• Mounting: Panel mount
• Weight:  200 grams

Key Features

PID Control

The advanced PID control algorithms ensure precise and stable process control.

User-Friendly Interface

The controller offers intuitive operation with a clear LED display and simple configuration.

Versatile Inputs and Outputs

The device supports various input types and control outputs for different applications.

Communication Capabilities

RS-485 Modbus RTU communication makes it easy to integrate with other devices and systems.
