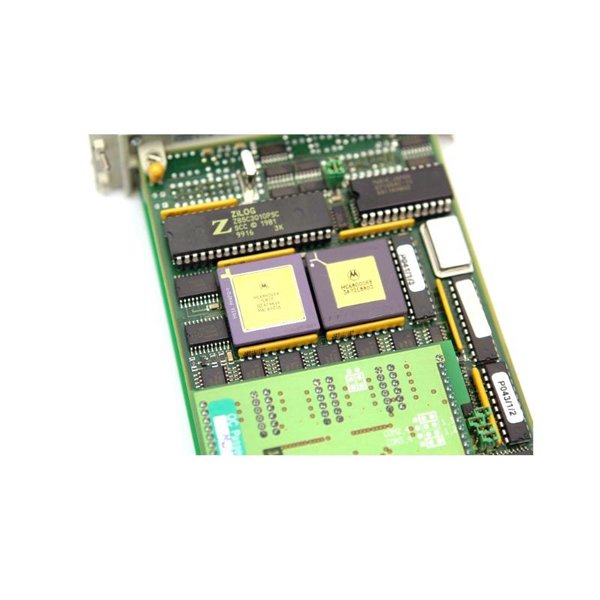

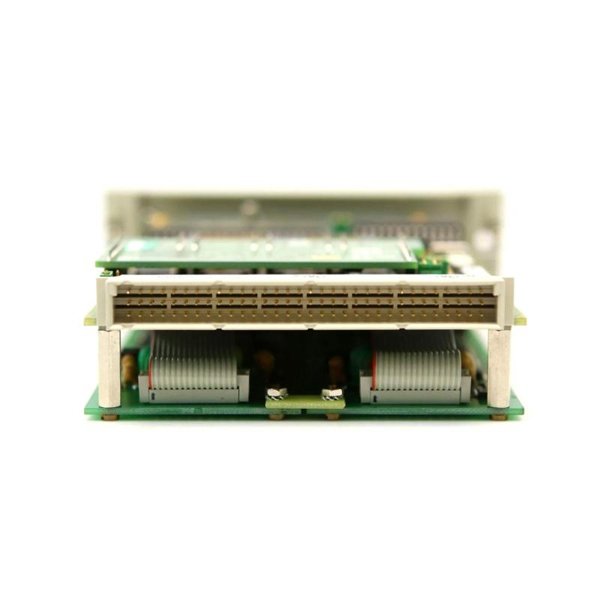

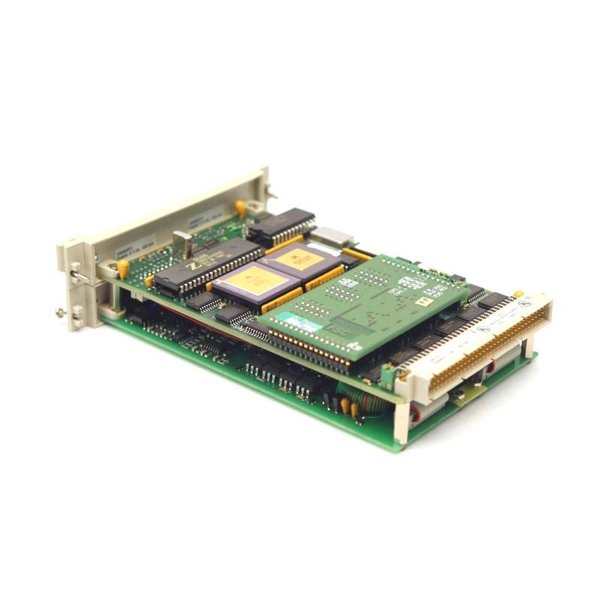

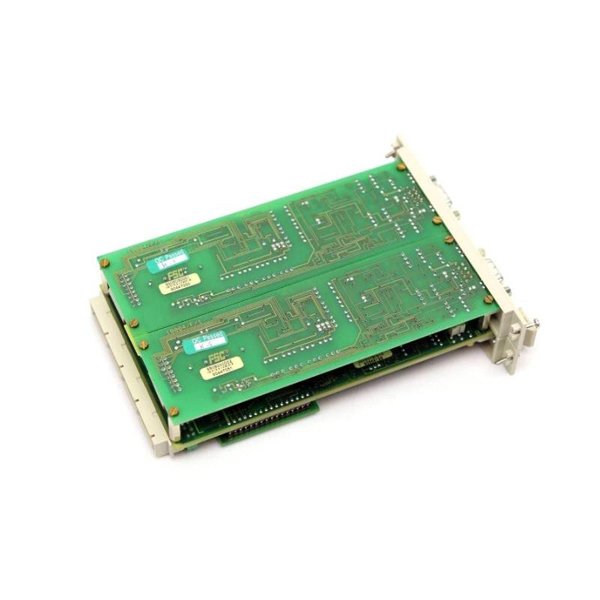

Honeywell 10014/H/I FSC Communication Module

The Honeywell 10014/H/I is a Communication Module specifically designed for use in Honeywell’s Field Safety Controller (FSC) systems. It serves as a critical interface between the FSC processor and external communication networks, supporting reliable data exchange with supervisory systems. This module is integral for achieving high-availability and safety-critical communication in process automation environments.

Technical Specifications

Applications

• Safety Instrumented Systems (SIS) in petrochemical plants

• Process automation in refineries

• High-reliability communication for power generation facilities

• Redundant and fail-safe data transmission environments

• Interface communication in distributed control systems (DCS)

Advantages

• High Reliability: Designed to meet rigorous industrial safety standards.

• Redundant Communication: Ensures continuous operation even during module or channel failure.

• Integration Friendly: Seamlessly integrates with Honeywell FSC and higher-level control systems.

• Compact Design: Small footprint allows for optimized panel space utilization.

• Wide Operating Range: Designed to operate under harsh environmental conditions.

FAQ

Q1: What is the primary role of the 10014/H/I Communication Module?

A1: It serves as a bridge between the FSC controller and external communication interfaces for data exchange.

Q2: Is this module hot-swappable?

A2: No, the module must be installed or replaced with system power down to ensure safety.

Q3: Can the 10014/H/I operate in redundant configurations?

A3: Yes, it supports redundant communication for high-availability systems.

Q4: What protocols does the module support?

A4: It uses proprietary Honeywell protocols tailored for FSC environments.

Q5: What is the power source for this module?

A5: It is powered through the FSC chassis and does not require an external power supply.

Q6: Is it compatible with all Honeywell FSC versions?

A6: It is compatible with most Honeywell FSC systems but should be verified with specific model requirements.

Q7: What environmental conditions can it withstand?

A7: It operates between 0°C to +60°C and can be stored between -40°C to +85°C.

Q8: Can this module be used in non-Honeywell systems?

A8: No, it is designed specifically for Honeywell FSC systems.

Q9: What makes it suitable for safety-critical environments?

A9: Its redundancy features, protocol reliability, and robust design make it ideal for critical applications.

Q10: How is the module installed in the system?

A10: It is installed into the FSC rack and secured with guide rails and retaining screws.
