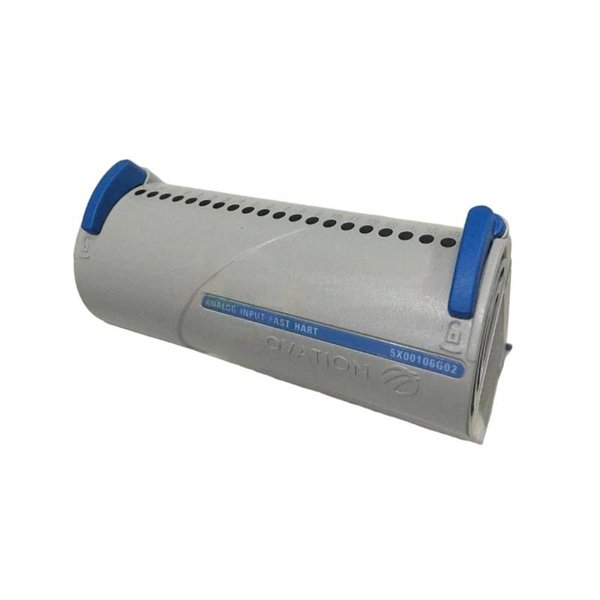

Ovation 5X00106G02 Analog Input Module

The Ovation 5X00106G02 Analog Input Module is a high-precision component of Emerson’s Ovation Distributed Control System (DCS), specifically designed to acquire and process analog signals from field instrumentation in real-time. With industrial-grade construction and advanced signal processing capabilities, the module is a preferred solution for applications requiring accurate, isolated, and dependable analog data capture.

This module supports analog signal types commonly used in industrial environments, including 0–10 VDC and 4–20 mA, and is equipped with multiple channels to facilitate scalable data acquisition. Engineered for reliability and operational continuity, the 5X00106G02 plays a critical role in control systems across industries such as power generation, water treatment, chemical processing, and manufacturing automation.

Product Specifications

Product Applications

The Ovation 5X00106G02 module is suitable for a wide range of industrial applications requiring high-performance analog signal acquisition:

1. Thermal and Nuclear Power Generation

   Collects analog data from turbines, boilers, and condensers for real-time control and safety monitoring.

2. Oil & Gas Operations

   Integrates with pressure and temperature transmitters in pipelines, refineries, and compressor stations.

3. Chemical and Petrochemical Plants

   Enables real-time tracking of process variables like reactor temperature, distillation levels, and flow control.

4. Water and Wastewater Treatment Facilities

   Monitors pH, turbidity, flow, and tank levels for compliance and operational efficiency.

5. Pharmaceutical and Food Processing

   Used for capturing environmental conditions (temperature, humidity) critical for batch integrity.

6. Industrial Automation Systems

   Provides continuous analog monitoring to support machine operation, diagnostics, and quality assurance.

Product Advantages

The 5X00106G02 Analog Input Module delivers a range of operational and engineering benefits:

1. High Signal Fidelity

   16-bit resolution ensures precision in signal conversion, capturing minute process changes for reliable control.

2. Flexible Input Compatibility

   Supports both voltage and current signals, ideal for various analog instruments.

3. Individually Isolated Channels

   Prevents electrical interference and protects against signal cross-talk or ground loops.

4. Built-in Diagnostics

   Onboard fault detection quickly identifies disconnected or out-of-range signals, improving system uptime.

5. Hot Swappable

   Allows for live maintenance or replacement without requiring a system shutdown—minimizing process interruption.

6. Seamless Integration

   Designed to work natively within Emerson’s Ovation system, ensuring fast commissioning and reduced engineering time.

7. Long-Term Durability

   Industrial-grade components ensure long service life and reliable performance in challenging operating environments.

FAQ (Frequently Asked Questions)

1. What is the main function of the 5X00106G02 module?

   • It acquires analog signals from field devices and converts them into digital values for use in the Ovation DCS.

2. How many channels are available in this module?

   • It features 8 individually isolated input channels.

3. What signal ranges are supported?

   • The module accepts 4–20 mA current and 0–10 VDC voltage inputs.

4. Can this module be hot-swapped?

   • Yes, it can be installed or removed during system operation without affecting other modules.

5. What types of diagnostics are included?

   • It includes diagnostics for signal loss, broken wires, over/under-range, and open circuit detection.

6. Is each channel isolated?

   • Yes, each input is isolated up to 500 V RMS to enhance signal integrity.

7. What industries commonly use this module?

   • It’s used in power plants, chemical facilities, water treatment, oil & gas, and industrial automation.

8. What is the resolution of the input conversion?

   • The module converts analog inputs with a 16-bit resolution.

9. Is the module compatible with other systems besides Ovation?

   • While optimized for Ovation, it may be adaptable with compatible interfaces in other systems.

10. What is the physical size of the module?

• It measures 263 x 183 x 55 mmand weighs 0.85 kg.
