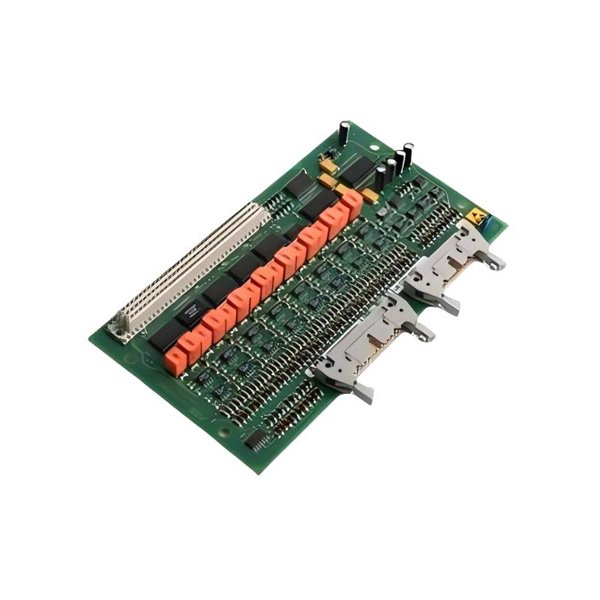

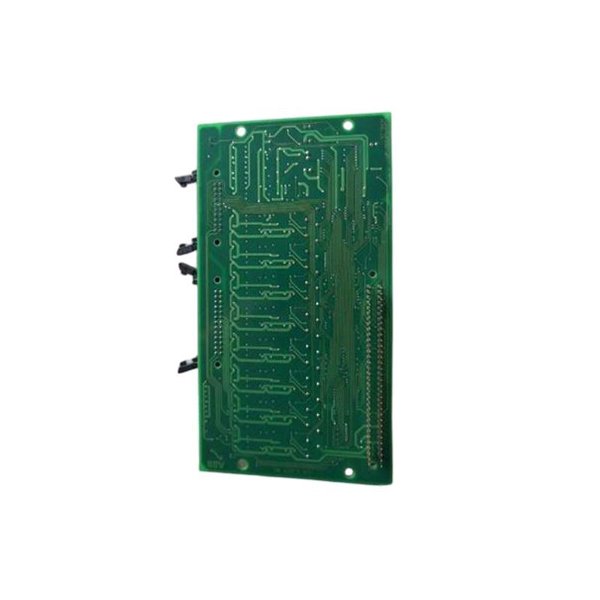

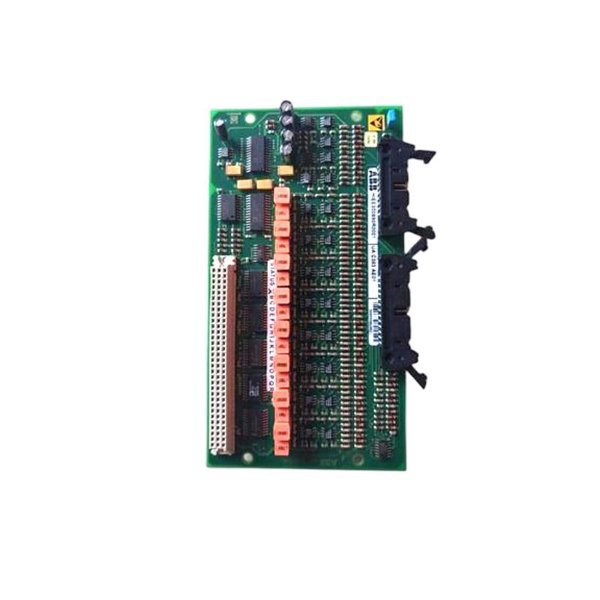

ABB UAC383AE101 HIEE300890R0001 Binary Input Board

The ABB UAC383AE101 HIEE300890R0001 is a high-performance binary input board used in industrial automation systems for monitoring and controlling digital signals. It is designed to interface with a wide range of equipment and systems, providing reliable and efficient input functionality. The UAC383AE101 is particularly well-suited for applications requiring precise and fast response times, offering exceptional reliability and ease of integration.

This binary input board is typically used in control systems, process automation, and safety monitoring systems. It features robust construction and is engineered for high accuracy, making it ideal for demanding industrial environments where reliability is crucial.

Product Specifications

Below is a detailed table outlining the specifications for the ABB UAC383AE101 HIEE300890R0001 binary input board:

Product Applications

The ABB UAC383AE101 binary input board is widely used in various industrial applications where precise monitoring of digital signals is required. Some of the key applications include:

1. Industrial Automation: The board is commonly used in automation systems for inputting binary signals, helping to control processes and machinery in industries like manufacturing, packaging, and robotics.

2. Process Control: It is integral to process control systems where quick responses to changes in input signals are required to maintain system stability.

3. Safety Systems: In safety-critical environments, such as power plants and factories, the UAC383AE101 helps monitor safety signals to ensure that machinery operates within safe parameters.

4. Building Management Systems (BMS): The board is used in BMS to interface with sensors and other binary devices, such as alarms or switches, enabling effective building control.

5. Energy Management Systems: It can be used to monitor the operational state of various electrical components, providing data for energy efficiency measures.

6. OEM Equipment Integration: The board is often integrated into original equipment manufactured (OEM) products to provide simple and effective binary input control for larger systems.

Product Advantages

1. High Reliability: The UAC383AE101 offers excellent reliability in continuous monitoring of digital inputs, ensuring long-term stability in demanding environments.

2. Optical Isolation: The board features optical isolation, which provides protection for the connected systems from voltage surges and electromagnetic interference (EMI).

3. Compact Design: With dimensions of 220 × 160 × 25 mm, the board has a compact form factor that makes it ideal for integration into space-constrained systems.

4. Wide Temperature Range: Operating between -20°C and +60°C, the module can be used in a variety of environments, from standard industrial settings to more extreme conditions.

5. Easy Integration: The board is DIN rail mountable, which facilitates quick and easy integration into existing systems, saving time during installation and setup.

6. Fast Response Time: With an input response time of less than 10 ms, the module is highly responsive, providing real-time control and data feedback for automation systems.

7. Low Power Consumption: The board consumes a maximum of 200 mA, making it energy-efficient and ideal for low-power automation setups.

8. Protection Class IP20: With an IP20 rating, the board is protected against solid objects larger than 12 mm, ensuring durability in industrial environments.

Frequently Asked Questions (FAQ)

1. How many inputs does the ABB UAC383AE101 binary input board support?

   • The board supports up to 16 binary inputs.

2. What is the input voltage range for the UAC383AE101?

   • The input voltage range is 0–24 V DC for on/off signals.

3. How is the board mounted?

   • The UAC383AE101 is DIN rail mountable, making installation easy in industrial settings.

4. What is the operating temperature range of the board?

   • It operates between -20°C to +60°C, making it suitable for most industrial environments.

5. What protection does the UAC383AE101 offer?

   • The board features optical isolation and an IP20 protection class, ensuring safety and durability.

6. Can the board handle high input current?

   • The board has a maximum current consumption of 200 mA, which is suitable for most control systems.

7. Is the UAC383AE101 suitable for safety-critical applications?

   • Yes, it is designed for use in applications such as safety systems, energy management, and process control.

8. What is the response time of the board’s inputs?

   • The board has a fast input response time of less than 10 ms.

9. What type of connectors are used for the inputs?

   • The inputs use spring clamp connectors, which provide a secure connection for wiring.

10. Is the UAC383AE101 compatible with other ABB systems?

    • Yes, it is designed to integrate seamlessly with other ABB systems, especially in automation and control applications.
