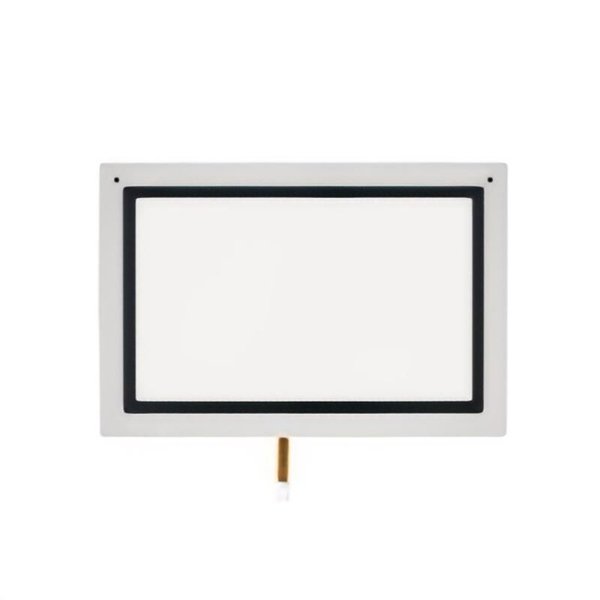

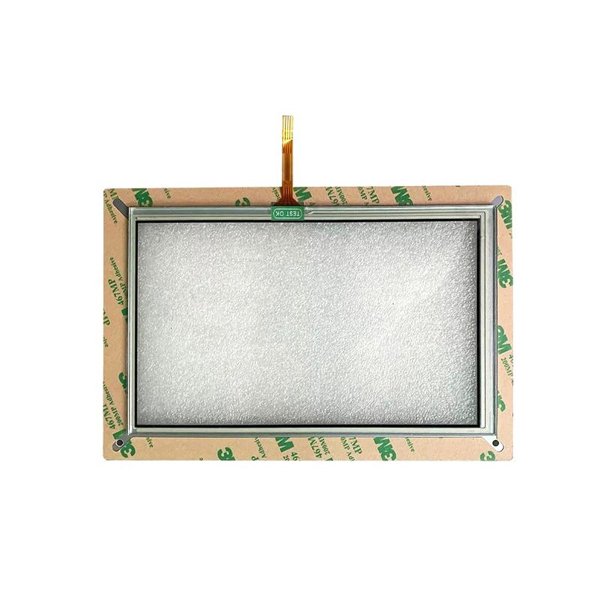

ABB PP874 3BSE069271R1 Touch Panel

The ABB PP874 3BSE069271R1 Touch Panel is a robust, high-performance operator interface designed for demanding industrial environments. As part of ABB’s renowned control system HMI series, this touch panel combines intuitive usability with industrial-grade durability. It is commonly used in various process automation tasks, including machine control, system visualization, and data monitoring. With a responsive touchscreen interface and compact design, the PP874 enhances operator efficiency and system integration capabilities. Its wide compatibility with ABB control systems, such as the AC800M and AC500 series, ensures a seamless operation across multiple platforms.

The touch panel is housed in a rugged enclosure suitable for harsh industrial settings. It supports multiple communication protocols and integrates easily with SCADA and PLC systems, making it ideal for use in manufacturing, utilities, and energy sectors. Its screen clarity, reliable performance, and long lifecycle contribute to its popularity among system integrators and plant operators worldwide.

Product Specifications

Product Applications

The ABB PP874 3BSE069271R1 is extensively used in industrial automation scenarios requiring real-time interaction and visualization. Typical applications include:

• Process Control Panels: Visualizing process variables and control loops.

• Manufacturing Automation: Interface for machine operators in production lines.

• Building Management Systems: Control and monitor HVAC, lighting, and energy usage.

• Water and Wastewater Treatment: Local display and control in treatment facilities.

• Power and Energy Monitoring: Displaying energy usage trends and alerts.

• OEM Machine Interfaces: Embedded in OEM equipment as user interface panels.

Product Advantages

• Rugged and Industrial-Grade: Built to endure harsh operating environments with vibration and temperature resistance.

• Wide Protocol Support: Ensures compatibility with multiple ABB and third-party PLCs and SCADA systems.

• Compact Design: Space-saving dimensions make it ideal for tight enclosures or cabinet installations.

• User-Friendly Interface: High-resolution touchscreen provides clear visualization and responsive control.

• High Reliability: Proven stability in 24/7 industrial operations.

• Integrated ABB Firmware: Seamlessly integrates into ABB automation systems for easy deployment and configuration.

• Long-Term Availability: ABB offers long product lifecycles and ongoing support.

• Low Power Consumption: Efficient design minimizes energy costs and heat generation.

Frequently Asked Questions (FAQ)

1. What software is required to configure the ABB PP874 Touch Panel?

   – ABB’s Panel Builder or Automation Builder software is typically used for HMI screen configuration.

2. Can the PP874 be used with third-party PLCs?

   – Yes, it supports common protocols such as Modbus and Ethernet/IP for compatibility with non-ABB systems.

3. Is the panel suitable for outdoor applications?

   – While the front panel is IP65 rated, it is recommended to use it in protected or indoor enclosures.

4. Does the device support remote monitoring?

   – Indirectly, yes. With network access, it can be integrated into remote SCADA or control systems.

5. How is firmware updated on the PP874?

   – Firmware updates are done via USB or Ethernet using ABB’s firmware utility tools.

6. What is the power input range for the panel?

   – The panel operates on 24 VDC nominal, with a range of 18–30 VDC.

7. Can I customize the HMI layout and graphics?

   – Yes, ABB’s configuration tools allow full customization of screen layout, buttons, and process views.

8. Does the panel support trending and data logging?

   – Yes, it includes built-in support for real-time trending and historical data logging.

9. Is it possible to mount this panel vertically or horizontally?

   – It supports flexible mounting orientations as long as adequate ventilation is maintained.

10. What is the expected lifespan of the touch screen?

    – Under normal industrial usage, the resistive touchscreen typically lasts over 1 million touch operations.
