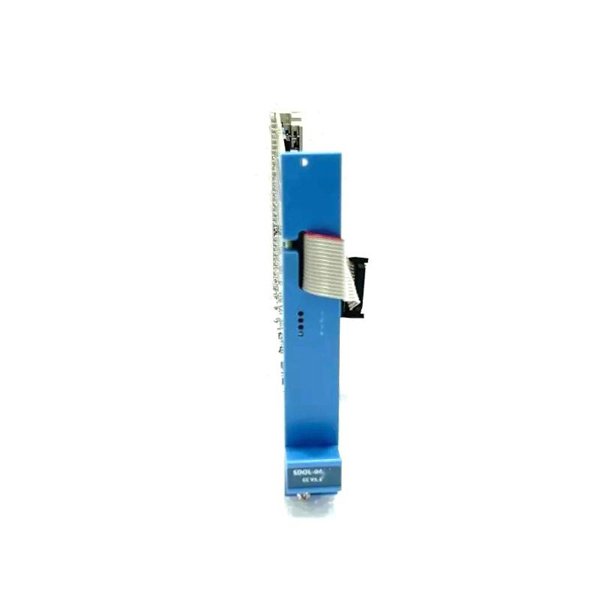

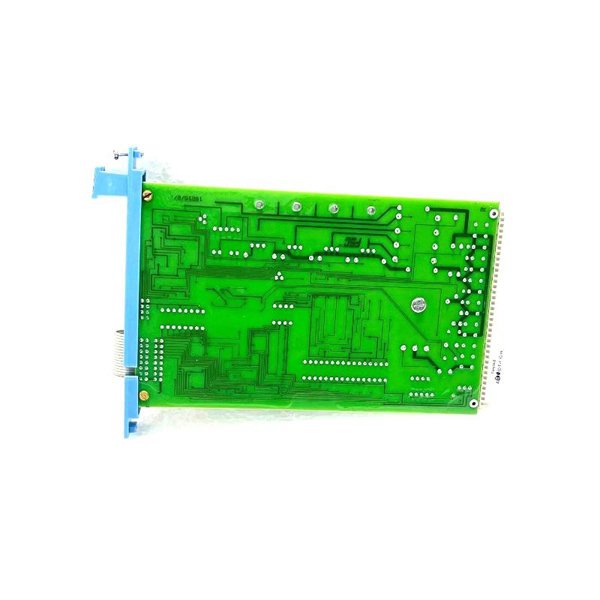

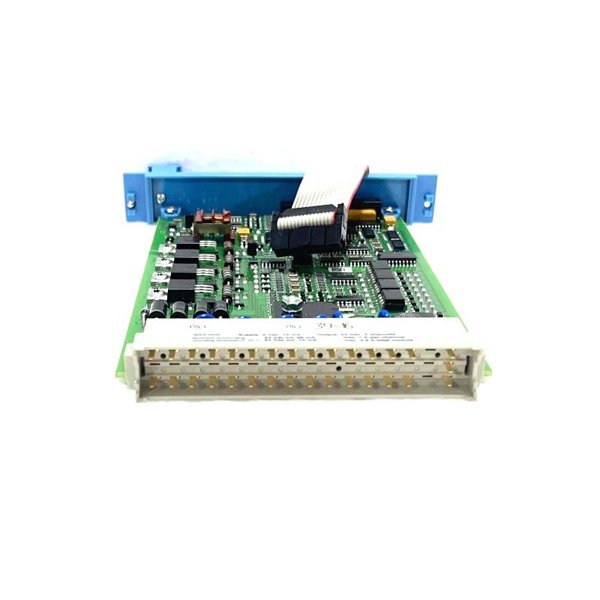

Honeywell FS-SDOL-0448 Safe Digital Output Module
Manufacturer:Honeywell
Product Number:FS-SDOL-0448
Product Type:Safe Digital Output Module
Origin:USA
Dimensions:20.32 x 133.35 x 156 mm
Weight:0.7 kg
Views:36
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell FS-SDOL-0448 is a safe loop-monitored digital output module, providing four independent 48V DC, 500mA output channels. Designed for high-integrity safety systems, it ensures reliable control of resistive and inductive loads with full monitoring of lead breakage, short circuit, and suppression diode function.
Technical Specifications
| Parameter | Value |
|---|---|
| Type Numbers | FS-SDOL-0448 / FC-SDOL-0448 |
| Approvals | CE, TUV, UL, CSA |
| Number of Output Channels | 4 |
| Output Voltage | 48 V DC |
| Max. Channel Current | 0.5 A |
| Max. Load Inductance | 1 H |
| Max. Load Capacitance | 0.5 µF |
| Output Type | Solid-state, short-circuit proof |
| Voltage Drop | < 1.5 V at 0.5 A |
| Off Current | < 0.1 mA |
| Power Requirements | 5 V DC, 15 mA + 48 V DC supply |
| Dimensions (W x H x D) | 20.32 x 133.35 x 156 mm |
| Weight | 0.7 kg |
Applications
-
Safety-critical shutdown systems
-
Process automation requiring high-availability outputs
-
Industrial control systems with monitored outputs
-
Driving resistive and inductive loads in SIL-compliant applications
Advantages
-
Fully monitored output loops for maximum safety
-
Solid-state outputs ensure long life and reliability
-
Built-in suppression diodes for inductive loads
-
Compact design with CE, UL, TUV, and CSA certifications
-
Secondary de-energizing mechanism for enhanced fault tolerance
FAQ
Q1: How many channels does the FS-SDOL-0448 provide?
A1: It provides four independent 48V DC output channels.
Q2: Can it drive inductive loads safely?
A2: Yes, each channel includes a suppression diode for inductive loads.
Q3: What is the maximum load per channel?
A3: 0.5 A per channel, up to 24 W per load.
Q4: Is it suitable for SIL applications?
A4: Yes, it is designed for safe applications requiring high integrity.
Q5: What fault conditions does it monitor?
A5: It monitors lead breakage, short circuits, and suppression diode operation.
Q6: Does it require an external power supply?
A6: Yes, both internal and external 48 V DC supplies are needed for proper self-test and operation.
Q7: What approvals does it carry?
A7: It is certified by CE, TUV, UL, and CSA.
Q8: Is it hot-swappable?
A8: The module must be powered down before replacement.
Q9: Does it support redundant configurations?
A9: Yes, it can be used in redundant IO configurations.
Q10: How is loop monitoring configured?
A10: Through range-setting submodules on a BSDOL-04UNI module.
