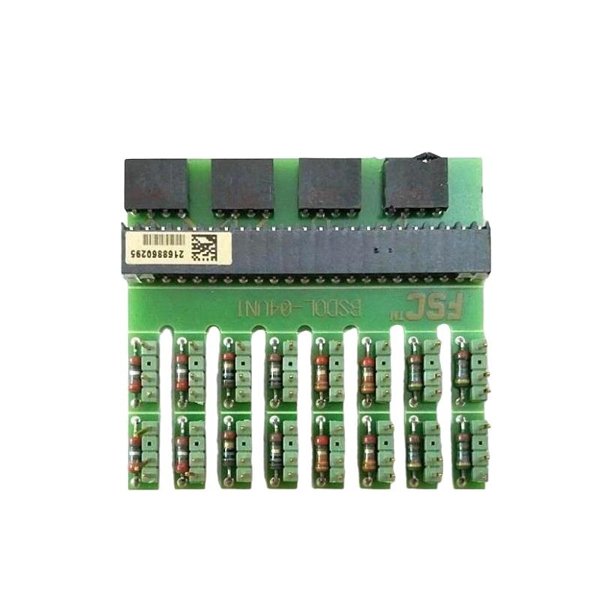

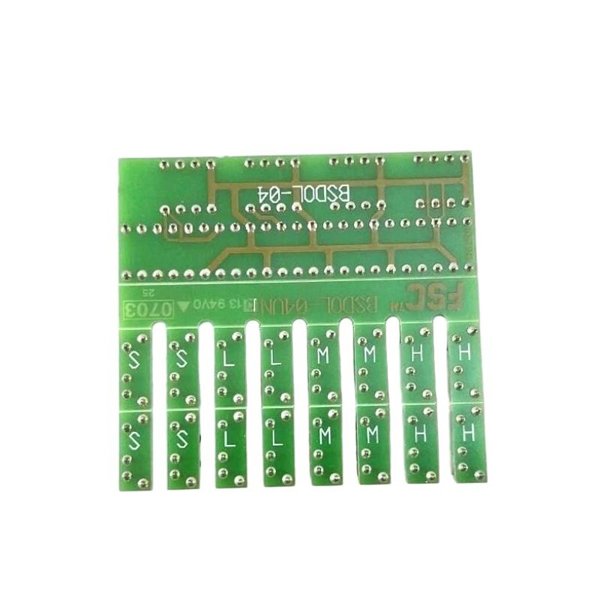

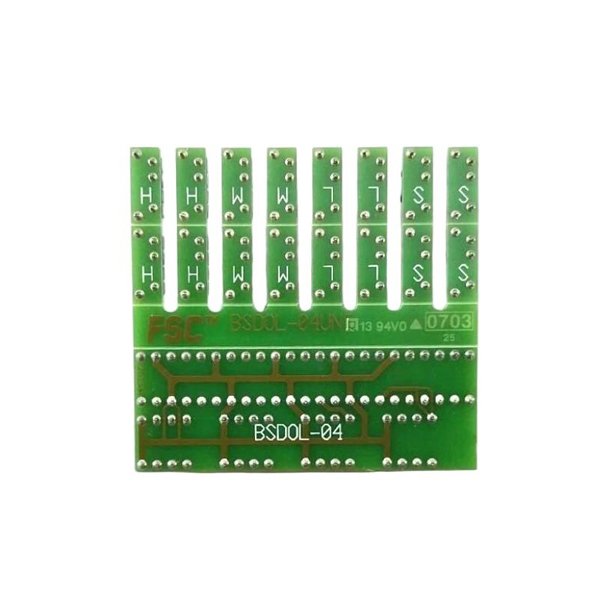

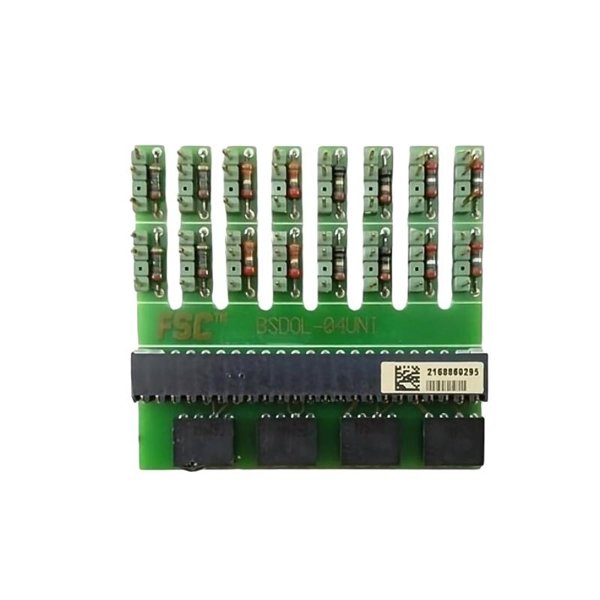

The Honeywell FS-BSDOL-04UNI is a precision Range-Setting Module Set designed for configuring and calibrating control and safety instrumentation within Honeywell automation systems. This module enables operators and engineers to define and adjust input ranges, signal scaling, and output calibration parameters, ensuring optimal system performance and accurate signal interpretation.

Built for industrial environments, the FS-BSDOL-04UNI features robust design, easy integration with Honeywell controllers, and compatibility with a wide range of input/output signals. It is widely used in process control, safety, and monitoring applications where precise measurement configuration is critical.

Product Specifications

Product Applications

• Process Control Systems: Provides precise calibration for analog and digital signals in industrial automation.

• Safety Instrumented Systems: Ensures correct signal ranges for safety logic modules.

• Oil & Gas Industry: Calibrates sensors and transmitters in refineries, pipelines, and offshore platforms.

• Power Generation: Adjusts instrumentation ranges for turbine and generator monitoring.

• Chemical and Pharmaceutical Processing: Configures process measurement systems for accurate batch control.

• Factory Automation: Supports signal scaling for distributed I/O networks and PLCs.

Product Advantages

• High Accuracy: Ensures precise signal range setting and calibration.

• Versatile Signal Support: Compatible with both analog and digital inputs and outputs.

• Easy Integration: Works seamlessly with Honeywell controllers and I/O modules.

• Built-in Diagnostics: LED indicators and self-test routines enhance system reliability.

• Redundancy Ready: Supports integration into redundant control and safety systems.

• User-Friendly Configuration: Simplifies commissioning and maintenance of instrumentation.

• Robust Industrial Design: Suitable for harsh operating conditions with wide temperature and humidity tolerance.

FAQ

1. What signal types are supported by the FS-BSDOL-04UNI?

   It supports analog signals such as 4–20 mA and 0–10 V, as well as certain digital signal types.

2. Can this module be used with Honeywell PLCs?

   Yes, it is fully compatible with Honeywell PLCs and Honeywell I/O modules.

3. What is the accuracy of the range-setting module?

   The module provides ±0.1% of full-scale accuracy for signal calibration.

4. Does it support redundant systems?

   Yes, redundancy support is available depending on the system configuration.

5. Which communication interfaces are available?

   It provides RUSIO and serial communication interfaces for integration with control systems.

6. Can this module adjust both input and output ranges?

   Yes, it can configure both input scaling and output calibration for connected devices.

7. Are there built-in diagnostics for the module?

   Yes, it features LED status indicators and self-test routines to verify operation.

8. What is the operating temperature range?

   It is rated for operation between -20°C and +60°C.

9. Is the module suitable for safety-critical applications?

   Yes, it is designed to provide accurate calibration for safety-instrumented systems.

10. What type of installation does it support?

    It can be installed in rack-mounted or panel-mounted configurations.
