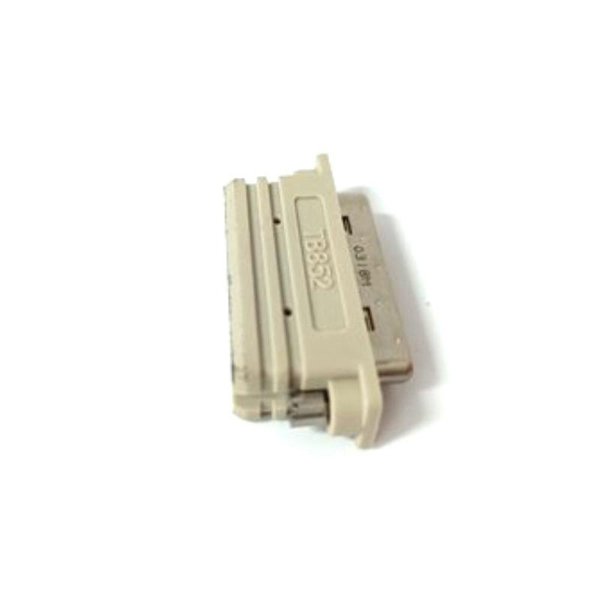

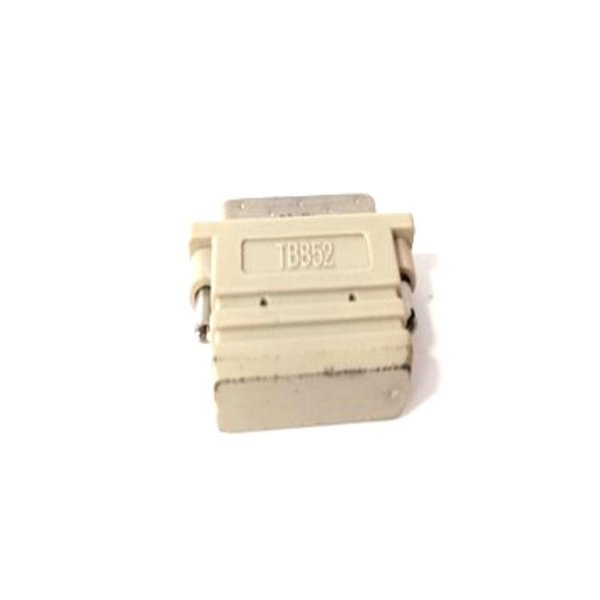

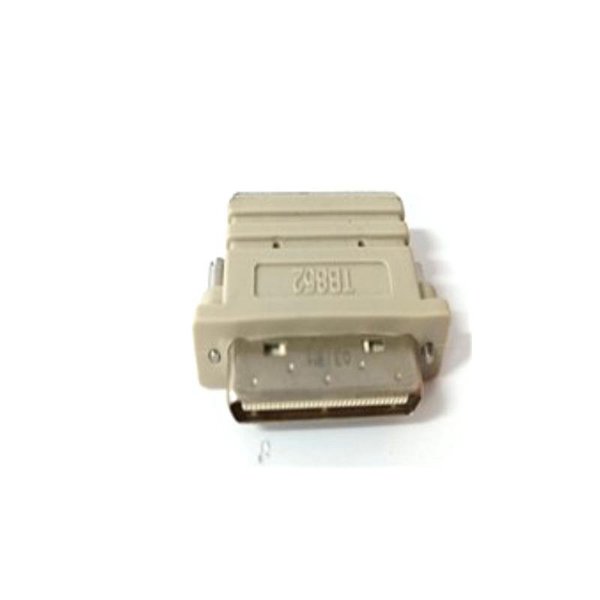

ABB TB852 3BSC950263R1 RCU Link Terminator Plug
Manufacturer:ABB
Product Number:TB852 3BSC950263R1
Product Type:RCU Link Terminator Plug
Origin:Sweden (SE)
Dimensions:57 x 20 x 23 mm
Weight:0.02 kg
Views:46
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB TB852 is an RCU Link Terminator Plug used in AC 800M controller systems. It serves as a termination point on the RCU Link for systems configured with a single processor unit. It ensures proper signal integrity and system performance by preventing signal reflection in the RCU link.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Code | TB852 |
| Part Number | 3BSC950263R1 |
| Function | RCU Link Terminator (Plug type) |
| System Compatibility | AC 800M Controller |
| Mounting | Plug-in (RCU Link connector) |
| Configuration Support | Single CPU configuration |
| Dimensions (W x H x D) | 57 x 20 x 23 mm |
| Weight | 0.02 kg |
Product Applications
-
Termination of the RCU Link in single CPU configurations
-
Ensures correct signal levels in redundancy control connections
-
Used during maintenance or initial commissioning when only one CPU is active
Product Advantages
-
Simple plug-and-use installation
-
Essential for signal integrity in single configurations
-
Compact and lightweight
-
Designed specifically for ABB AC 800M systems
-
Enhances system reliability by preventing data transmission faults
-
No external power required
FAQs
Q1: What is the main function of the TB852 plug?
A1: It terminates the RCU Link in single-CPU configurations to maintain signal integrity.
Q2: Can TB852 be used in redundant CPU configurations?
A2: No, it’s only used in single CPU configurations. Redundant systems use RCU link cables instead.
Q3: Is TB852 required for temporary single CPU operation?
A3: Yes, it must be installed if only one processor is used temporarily.
Q4: Does TB852 require configuration?
A4: No, it is a passive hardware terminator and does not require any setup.
Q5: Can I use a third-party terminator instead of TB852?
A5: No, only ABB-specified components ensure proper system operation.
Q6: What happens if TB852 is not installed in a single CPU setup?
A6: Signal reflection and communication errors may occur in the RCU Link.
Q7: Is TB852 hot-swappable?
A7: No, install only when the controller system is powered off.
Q8: Is TB852 reusable?
A8: Yes, it can be removed and reinstalled when needed.
Q9: How do I identify the TB852 plug?
A9: The plug is labeled TB852 with part number 3BSC950263R1.
Q10: Where is TB852 installed?
A10: It is inserted into the RCU Link connector of the primary processor.
