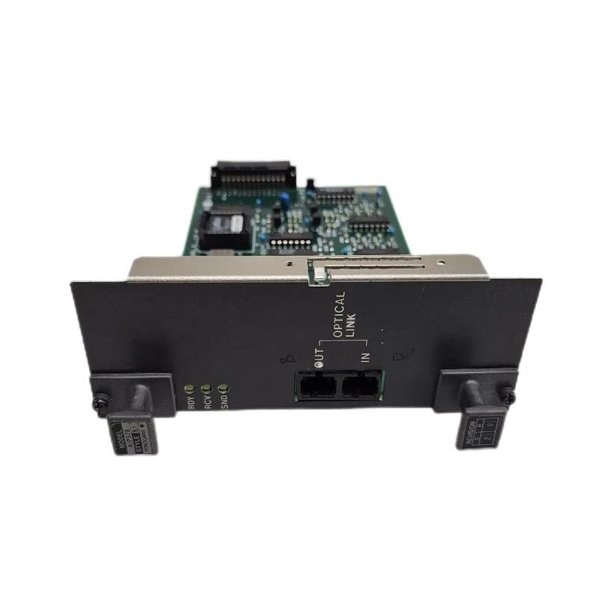

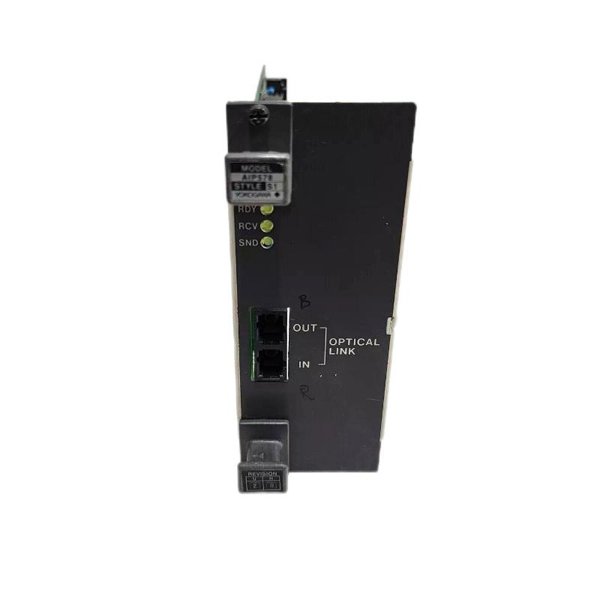

Yokogawa AIP578 Fiber Optic Link Transceiver Board Module

The Yokogawa AIP578 is a cutting-edge Fiber Optic Link Transceiver Board Module designed to facilitate high-speed, high-reliability communication in industrial systems. This module provides seamless connectivity between various field devices and control systems, enabling data transmission over long distances without degradation or interference. The AIP578 supports both receive and transmit functions, ensuring that signals are effectively communicated across fiber-optic cables, which offer significant advantages in terms of distance and noise immunity compared to traditional copper cables.

The Yokogawa AIP578 is engineered to be highly reliable, ensuring continuous communication even in challenging industrial environments. With its compact form factor of 129 x 262.8 x 45 mm and a lightweight design of 0.181 kg, it offers an ideal solution for industries such as process control, manufacturing, and automation, where fast and secure data transmission is critical for system integrity.

This module is part of Yokogawa’s Rio series, which is renowned for providing robust industrial communication solutions that meet the demands of complex systems and advanced automation environments.

Product Parameters

The technical specifications of the Yokogawa AIP578 Fiber Optic Link Transceiver Board Module are as follows:

Product Applications

The Yokogawa AIP578 Fiber Optic Link Transceiver Board Module is versatile and is used in a wide range of industrial and commercial applications. Some key areas include:

1. Process Control Systems: The AIP578 is used in industries like petrochemical, oil and gas, and power plants where continuous and reliable data transmission between sensors and control systems is essential.

2. Industrial Automation: It supports high-speed communication between different controllers, PLCs, and SCADA systems in complex automation setups.

3. Manufacturing Plants: The module enables fiber-optic connections between various equipment and systems, ensuring robust data transmission without electrical interference, particularly in environments with high electromagnetic fields.

4. Control Room Communication: In process control environments, the AIP578 connects field instruments to centralized control rooms, ensuring uninterrupted communication over long distances.

5. Machine Monitoring and Diagnostics: The module can be used to transmit sensor data to monitoring systems for real-time diagnostics, ensuring optimal machine performance and proactive maintenance.

6. Data Center Interconnects: In modern data centers, the module helps in creating high-speed fiber-optic links for internal communication and long-distance data transmission across devices.

Product Advantages

1. Long-Distance Communication: The fiber-optic connection allows for high-speed, long-distance data transmission without signal loss or degradation, which is not achievable with traditional copper cabling.

2. Noise Immunity: Fiber-optic cables are immune to electromagnetic interference, making the AIP578 ideal for environments with high electrical noise, such as industrial automation setups and power plants.

3. Compact and Lightweight: With dimensions of 129 x 262.8 x 45 mm and a weight of only 0.181 kg, the AIP578 is easy to install and can be mounted in confined spaces.

4. High-Speed Data Transfer: Supporting data rates up to 1 Gbps, the module ensures rapid and reliable transmission of large amounts of data, critical for modern industrial systems.

5. Reliability: Built for industrial use, the AIP578 is designed to perform consistently in harsh environments with a wide operating temperature range of -20°C to +70°C.

6. Compatibility with Rio Series: The module is part of the Yokogawa Rio system, ensuring seamless integration with other Yokogawa products for enhanced system reliability and scalability.

7. Energy Efficient: Operating with minimal power consumption, the module requires just 24V DC ± 10%, making it an energy-efficient solution.

8. Easy to Integrate: The AIP578 can be easily incorporated into existing fiber-optic infrastructures, offering flexibility in system design and communication setup.

9. Compliant with International Standards: The AIP578 meets CE, UL, RoHS and other global standards, ensuring it adheres to the highest industry safety and environmental criteria.

10. Low Latency: The module supports low-latency data transfer, making it ideal for real-time applications where immediate communication is crucial.

FAQs

1. What is the main purpose of the Yokogawa AIP578 module?

   The AIP578 is a fiber-optic link transceiver module designed for high-speed, reliable data transmission in industrial automation, process control, and other applications.

2. What is the maximum data rate supported by the AIP578?

   The module supports a maximum data rate of 1 Gbps, providing fast and efficient data transfer over fiber-optic cables.

3. What type of fiber-optic connectors are compatible with the AIP578?

   The module is compatible with SC, LC, and ST type connectors, allowing flexibility in connector choice depending on the system requirements.

4. What is the operating temperature range for the AIP578?

   The AIP578 can operate in temperatures ranging from -20°C to +70°C, making it suitable for a variety of industrial environments.

5. Is the AIP578 energy-efficient?

   Yes, the module is designed to be energy-efficient, operating with a power supply of 24V DC ± 10% and consuming minimal power.

6. Can the AIP578 be used in hazardous environments?

   Yes, the fiber-optic communication provides immunity to electromagnetic interference, making it ideal for use in hazardous industrial environments.

7. What are the dimensions of the AIP578 module?

   The module has compact dimensions of 129 x 262.8 x 45 mm and weighs only 0.181 kg.

8. How is the AIP578 mounted?

   The AIP578 is designed to be rack-mounted and is fully compatible with the Yokogawa Rio systems.

9. What is the power supply requirement for the AIP578?

   The module requires a 24V DC ± 10% power supply to operate.

10. What applications are best suited for the AIP578?

    The AIP578 is ideal for use in process control systems, industrial automation, manufacturing plants, machine monitoring, and data center interconnects.
