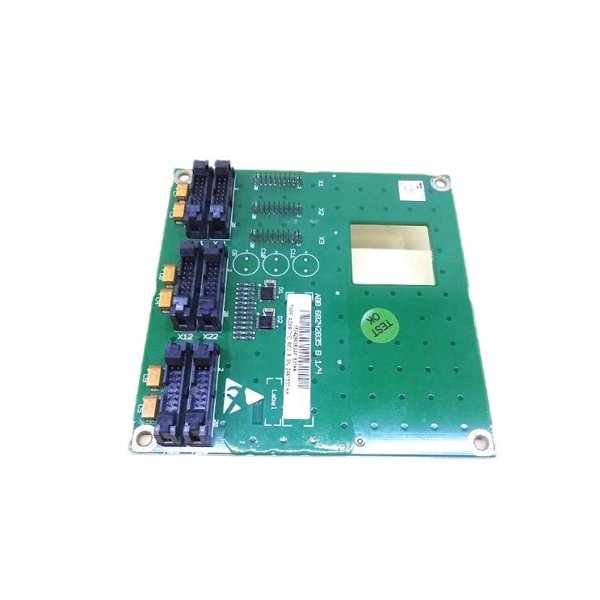

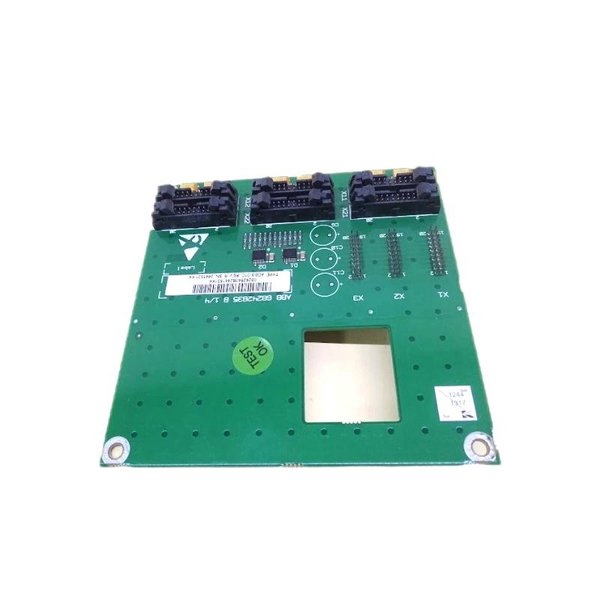

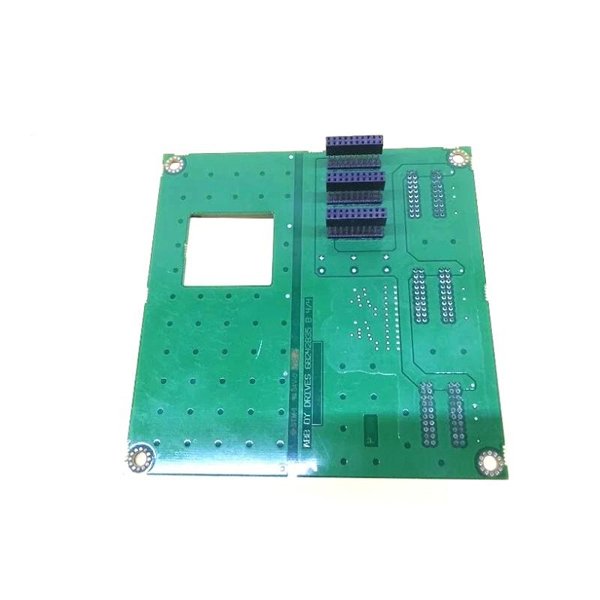

ABB AGBB-01C 68242843 Gate Driver

The ABB AGBB-01C 68242843 Gate Driver is an integral part of ABB’s well-engineered line of power electronics accessories, designed specifically to drive IGBT and MOSFET modules used in various industrial automation and motor control applications. Built to meet the stringent demands of high-performance power conversion systems, this gate driver unit ensures optimal switching behavior, enhanced reliability, and seamless interfacing between control systems and power modules.

The AGBB-01C model is engineered to offer precise timing control, fault monitoring, and electrical isolation, which are essential in high-power inverter and converter systems. Whether used in conjunction with ABB drives or in a broader automation setup, this gate driver demonstrates robust performance in harsh electrical environments, contributing to improved system efficiency and safety.

Product Specifications

Product Applications

The AGBB-01C gate driver module is used in a variety of medium to high-power industrial and commercial environments. Applications include:

• Industrial Drives: Precise control of induction motors and synchronous motors.

• Renewable Energy Systems: Solar inverters and wind turbine converters.

• UPS Systems: Gate control in uninterrupted power supply systems.

• HVAC Systems: Power switching control in ventilation and compressor systems.

• Automation Equipment: Robotics, CNC machinery, and conveyor systems.

• Power Converters: High-frequency and high-voltage DC/AC inverters.

Product Advantages

• High Reliability: Engineered by ABB for rugged industrial applications with long service life.

• Excellent Electrical Isolation: Ensures safety for both low-voltage and high-voltage sides.

• Compact Form Factor: Easily integrated into existing modules or PCB designs.

• Advanced Protection Features: Built-in undervoltage lockout (UVLO), overtemperature detection, and short circuit protection.

• High-speed Switching: Suitable for modern IGBT modules operating at high frequencies.

• Brand Consistency: Compatible with other ABB drives and modules, simplifying system architecture.

• Low Electromagnetic Interference (EMI): Designed for minimal noise emission.

• Plug-and-Play Design: Quick installation and commissioning.

Frequently Asked Questions (FAQ)

1. What is the primary function of the AGBB-01C gate driver?

   It provides electrical isolation and amplifies control signals to switch IGBT/MOSFET modules in power electronic systems.

2. Can this driver be used in a solar inverter application?

   Yes, it’s suitable for high-efficiency DC/AC conversion, commonly required in solar inverters.

3. Is the AGBB-01C compatible with ABB industrial drives?

   Yes, it is designed for seamless compatibility with ABB drives and related hardware.

4. What protection features are included in this module?

   It includes short circuit protection, undervoltage lockout (UVLO), overtemperature protection, and fault signal feedback.

5. Does it require a heatsink or forced-air cooling?

   It typically operates with passive cooling, but forced-air may be needed under heavy loads or high switching frequencies.

6. What is the maximum switching frequency supported?

   The module can handle switching frequencies up to 50 kHz.

7. How is isolation achieved in the AGBB-01C?

   Electrical isolation is achieved using high-quality insulation materials and optocouplers or fiber optics.

8. Is it RoHS and CE compliant?

   Yes, it meets RoHS and CE standards, ensuring environmental and safety compliance.

9. Can it be mounted on a standard PCB?

   Yes, it can be either screw-mounted or integrated directly onto a PCB, depending on the system setup.

10. What kind of signal input does it accept?

    It accepts logic signals or fiber optic inputs, depending on the variant and application.
