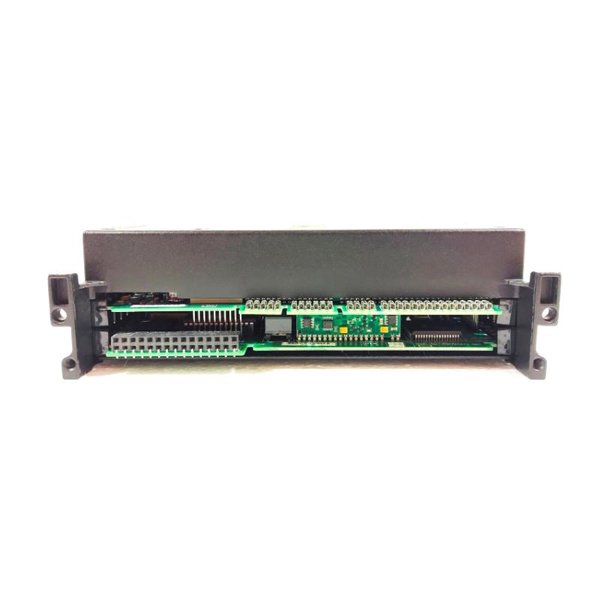

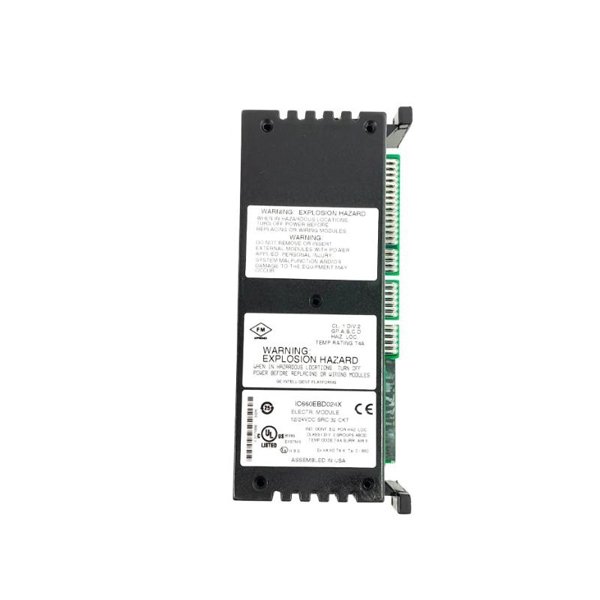

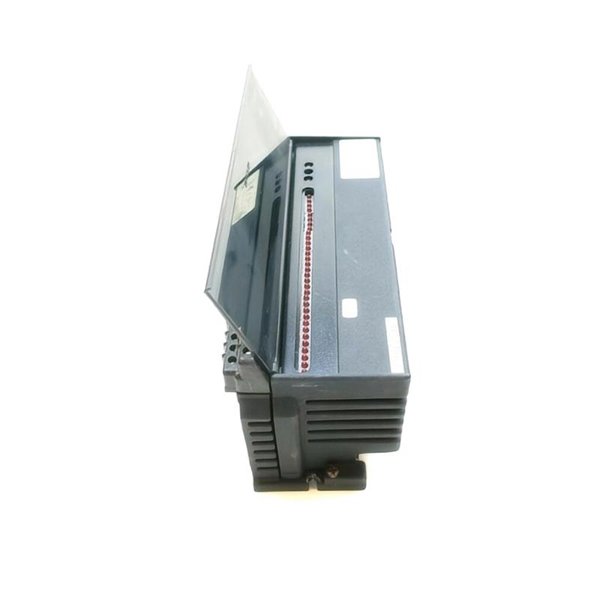

General Electric IC660BBD024 Discrete I/O Module
Manufacturer:GE
Product Number:IC660BBD024
Product Type:Discrete I/O Module
Origin:USA
Dimensions:224.4 x 88.9 x 100 mm
Weight:1.47 kg
Views:57
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE Fanuc IC660BBD024 is a 32-point discrete I/O module from the Genius I/O series, designed for industrial automation applications. Operating at 12/24 VDC, this module allows each of its 32 circuits to be configured individually as an input, output, or output with feedback. It interfaces seamlessly with controllers and a variety of field devices, including 2-wire and 3-wire electronic proximity switches. The module’s robust design and advanced diagnostics make it suitable for demanding industrial environments.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | IC660BBD024 |
| Input Voltage Range | 12/24 VDC |
| Number of Circuits | 32 (Configurable as input/output) |
| Input Impedance | 3.3 kΩ |
| Input Processing Time | 1.4 ms (with selectable filter delay) |
| Input Filters | 1–100 ms |
| Output Current per Channel | 0.5 A |
| Total Block Output Current | 16 A |
| Inrush Current | 4 A (up to 10 ms, once every 0.5 sec) |
| Output Turn-on Delay | 0.5 ms (max) |
| Power Supply Dropout Time | 4 ms (12 V), 20 ms (24 V) |
| Diagnostics | Switch Fault Detection |
| Mounting | DIN Rail or Panel Mount |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Weight | 1.47 kg |
| Certifications | CE, UL, CSA |
Applications
-
Industrial Automation: Facilitates control and monitoring of machinery and processes.
-
Manufacturing: Integrates with assembly lines and production equipment.
-
Material Handling: Controls conveyors, sorters, and automated storage systems.
-
Energy Sector: Manages control systems in power generation and distribution.
-
Transportation: Implements control in railway signaling and traffic systems.
Key Advantages
-
Flexible Configuration: Each of the 32 circuits can be individually set as input, output, or output with feedback, providing adaptability to various applications.
-
Advanced Diagnostics: Built-in diagnostics, including switch fault detection, enhance system reliability and facilitate maintenance.
-
High-Density Design: Compact module with 32 configurable circuits saves space in control panels.
-
Robust Performance: Handles significant inrush currents and operates reliably in industrial environments.
-
Ease of Integration: Compatible with a wide range of input devices and supports Genius Bus protocol for seamless communication.
Frequently Asked Questions (FAQ)
-
What is the voltage range for the IC660BBD024 module?
-
The module operates at 12/24 VDC.
-
-
How many circuits does the module have?
-
It features 32 circuits, each configurable as input, output, or output with feedback.
-
-
What is the maximum output current per channel?
-
Each output channel can handle up to 0.5 A.
-
-
Can the module handle inrush currents?
-
Yes, it can handle inrush currents of 4 A for up to 10 ms, once every 0.5 seconds.
-
-
What diagnostic features are included?
-
The module includes switch fault detection and other advanced diagnostics.
-
-
Is the module compatible with different types of input devices?
-
Yes, it is compatible with both 2-wire and 3-wire electronic proximity switches.
-
-
What are the mounting options for the module?
-
It can be mounted on a DIN rail or directly onto a panel.
-
-
What is the weight of the module?
-
The module weighs 1.47 kg.
-
-
Does the module support the Genius Bus protocol?
-
Yes, it supports the Genius Bus protocol for communication.
-
-
What certifications does the module have?
-
It is certified by CE, UL, and CSA.
-
