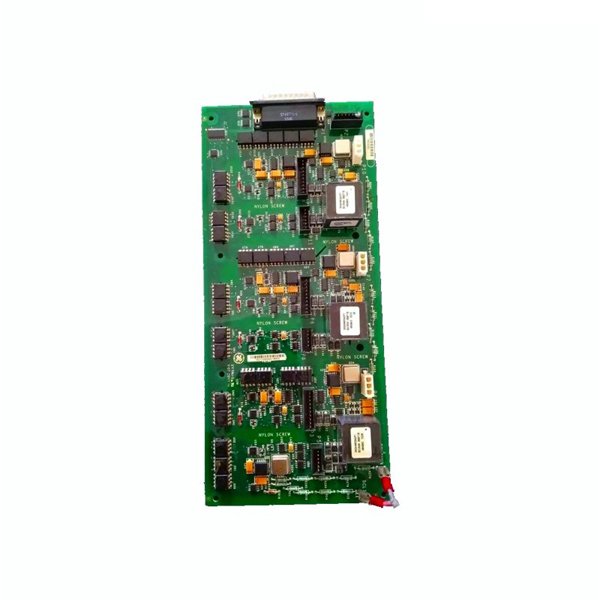

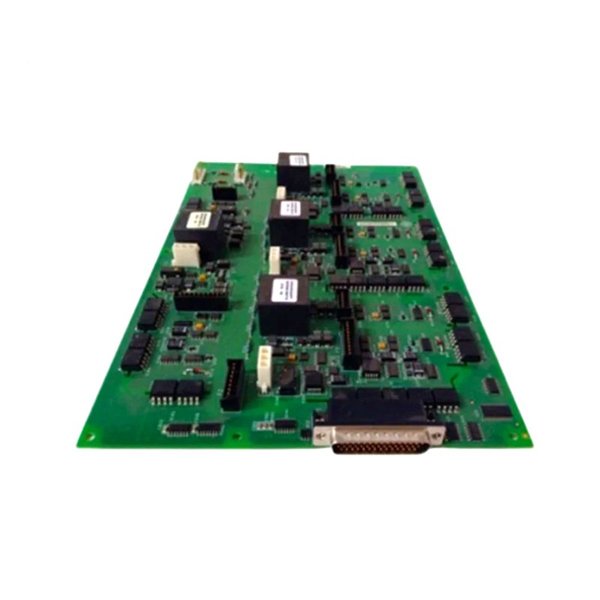

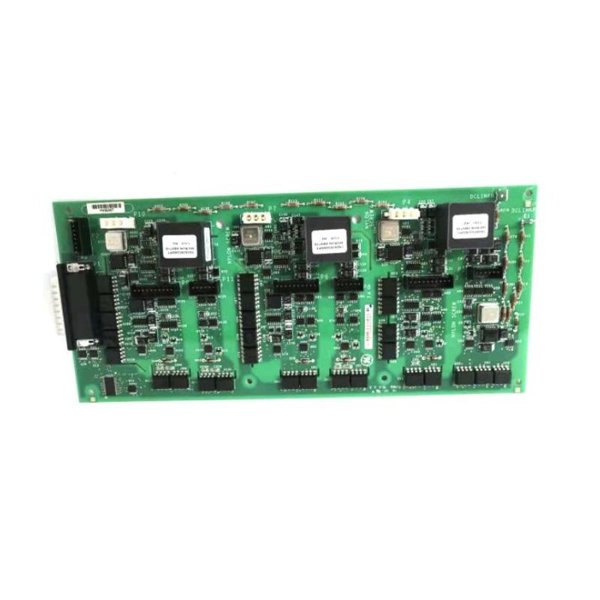

General Electric IS210AEDBH3ACC AE Bridge Interface

The GE IS210AEDBH3ACC AE Bridge Interface is a precision signal interface module designed for use in advanced vibration monitoring systems. It is part of GE’s Industrial Solutions line, providing accurate and reliable acoustic emission (AE) signal processing for condition monitoring of rotating machinery. This device converts AE signals into standardized outputs compatible with monitoring and protection systems, enabling early detection of mechanical faults.

The interface ensures high-fidelity signal transmission, minimal noise interference, and robust operation in industrial environments. It is commonly used in conjunction with proximity probes, vibration sensors, and other condition monitoring devices to enhance machine reliability and operational safety.

Product Advantages

• High Signal Accuracy: Maintains signal integrity for precise fault detection.

• Wide Compatibility: Works with a variety of sensors and monitoring systems.

• Robust Industrial Design: Built to withstand harsh environments and electrical noise.

• Real-Time Monitoring: Supports continuous AE signal acquisition for early fault identification.

• Ease of Integration: Compatible with standard interface modules and signal conditioners.

• Reduced Downtime: Helps identify issues before catastrophic failures occur.

Technical Specifications

Product Applications

• Monitoring of rotating machinery in power plants, refineries, and manufacturing.

• Condition-based maintenance programs for turbines, compressors, and motors.

• Early fault detection of bearing defects, gear issues, and structural anomalies.

• Integration with GE monitoring systems like 3500 series or modern digital controllers.

• Vibration analysis and acoustic emission testing in industrial machinery.

FAQ

1. Q: What type of AE sensors are compatible with the IS210AEDBH3ACC?

   A: It supports standard broadband AE sensors operating in the 20 kHz – 1 MHz range.

2. Q: Can the interface handle multiple sensor inputs simultaneously?

   A: Yes, it supports differential input configurations for multiple sensor channels.

3. Q: What output signal formats are available?

   A: Standardized voltage and current outputs compatible with GE monitoring systems.

4. Q: How does the device handle electrical noise?

   A: Features high-level noise rejection (>60 dB) and differential input to minimize interference.

5. Q: Is the unit compatible with digital monitoring systems?

   A: Yes, it can integrate with both analog and digital acquisition systems.

6. Q: What is the maximum cable length for sensor connections?

   A: Recommended cable length is up to 50 meters to maintain signal fidelity.

7. Q: Can the device operate in extreme temperatures?

   A: Yes, it operates reliably from -20°C to 70°C.

8. Q: Does it require calibration?

   A: Calibration is recommended periodically to ensure measurement accuracy.

9. Q: Can this module be used for both AE and vibration signals?

   A: Primarily designed for AE, but compatible with certain vibration sensors using the same interface standards.

10. Q: How is the interface powered and what is the tolerance?

    A: Powered via 24 V DC with ±10% tolerance.
