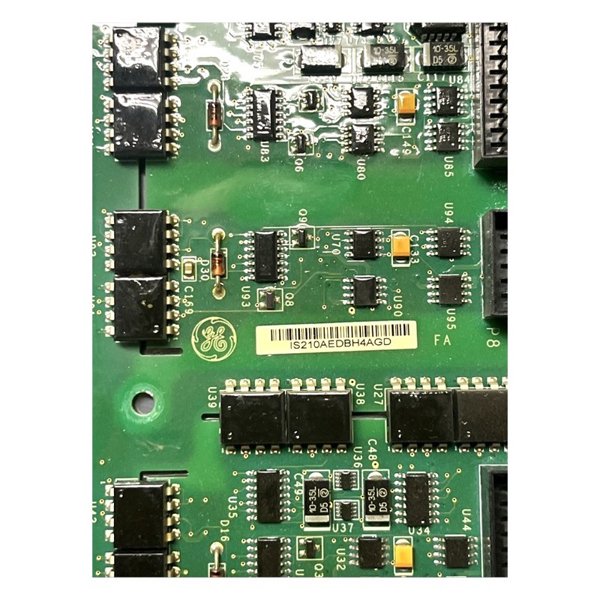

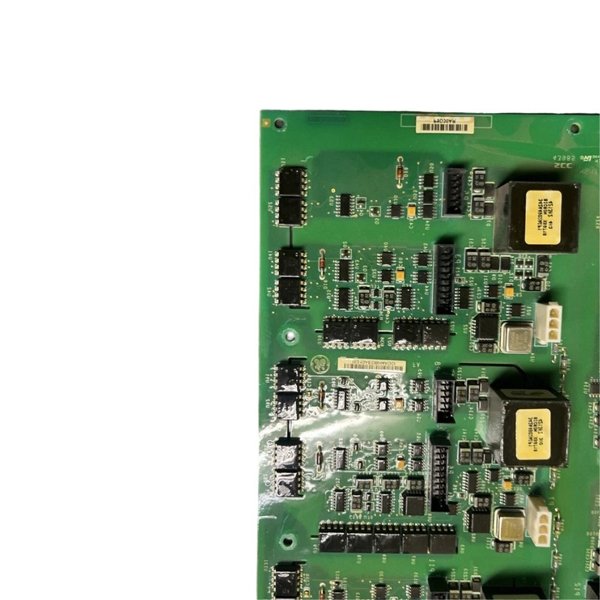

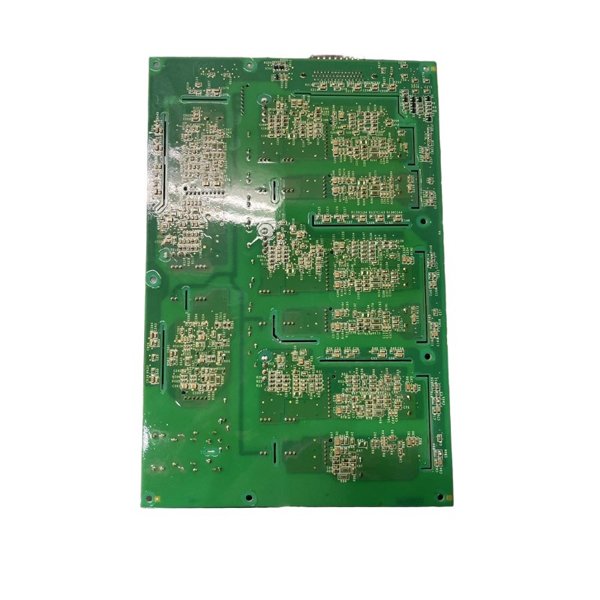

General Electric IS210AEDBH4A AE Bridge Interface

The GE IS210AEDBH4A AE Bridge Interface is an advanced acoustic emission (AE) signal interface module designed for industrial monitoring and machinery protection. This device acts as a bridge between AE sensors and data acquisition systems, providing accurate signal conditioning and reliable communication. It is engineered for high-fidelity monitoring of rotating machinery, pressure vessels, and critical mechanical systems, allowing operators to detect anomalies such as friction, leaks, or cracks in real-time.

Product Advantages

• High Signal Accuracy: Ensures minimal signal distortion and precise AE measurement.

• Robust Design: Industrial-grade build suitable for harsh environments.

• Compatibility: Supports integration with GE monitoring systems and third-party acquisition devices.

• Real-Time Monitoring: Provides continuous acoustic emission detection for preventive maintenance.

• Scalability: Multiple channels can be combined to monitor complex machinery setups.

• Reduced Noise Interference: Advanced filtering and shielding improve signal clarity.

Technical Specifications

Product Applications

• Continuous machinery condition monitoring in industrial plants.

• Early detection of mechanical faults in turbines, compressors, and pumps.

• Monitoring of pipelines for leak detection.

• Structural health monitoring of pressure vessels and storage tanks.

• Integration into predictive maintenance systems.

• Industrial research requiring high-accuracy AE data acquisition.

FAQ

1. Q: What type of AE sensors are compatible with IS210AEDBH4A?

   A: Standard AE sensors with 1–10 V output are compatible.

2. Q: Can this interface handle multiple channels simultaneously?

   A: Yes, it supports 4 channels simultaneously with independent signal conditioning.

3. Q: What communication protocols does it support?

   A: RS485 and Modbus protocols are supported for digital data transmission.

4. Q: How does the device handle electrical noise from industrial environments?

   A: It features built-in differential input filtering and galvanic isolation for noise suppression.

5. Q: What is the maximum signal bandwidth for AE input?

   A: The interface supports signal bandwidth from 100 kHz up to 1 MHz.

6. Q: Is the device suitable for high-temperature environments?

   A: Yes, it operates reliably from -20°C to 70°C.

7. Q: Can this interface be integrated into existing GE monitoring systems?

   A: Yes, it is fully compatible with GE monitoring and data acquisition systems.

8. Q: How is the device powered?

   A: The interface uses a 24 VDC power supply.

9. Q: Does it provide analog output signals for further analysis?

   A: Yes, it provides both analog and digital outputs.

10. Q: Can the device be mounted on a DIN rail?

    A: Yes, it supports DIN rail and panel mounting options.
