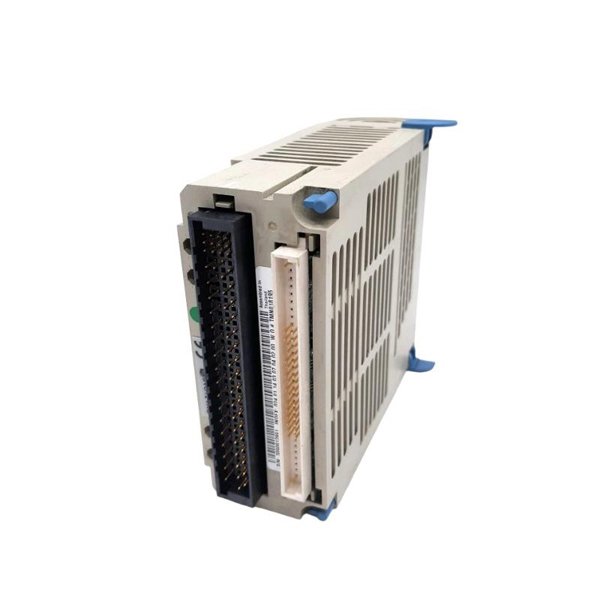

Ovation 5X00106G01 8 Channel Analog Input Module

The Ovation 5X00106G01 8-Channel Analog Input Module is a high-performance analog signal acquisition device designed for integration into Emerson’s Ovation Distributed Control System (DCS). Engineered with industrial precision and reliability in mind, this module is capable of capturing real-time analog signals from field instruments such as pressure transducers, temperature sensors, level transmitters, and flow meters.

This module plays a vital role in critical process industries by digitizing analog data and forwarding it to the control system for analysis and decision-making. It is widely appreciated for its robust construction, channel isolation, high resolution, and seamless compatibility with Ovation hardware architecture, making it ideal for power plants, chemical facilities, water treatment stations, and other automation environments that demand high accuracy and system resilience.

Product Specifications

Product Applications

The Ovation 5X00106G01 module is built to meet the demands of real-time process monitoring in complex and mission-critical systems. Key application scenarios include:

1. Thermal and Nuclear Power Plants

   Captures temperature, pressure, and flow data for turbine control, environmental monitoring, and safety systems.

2. Oil and Gas Facilities

   Gathers real-time analog readings from distributed instrumentation along pipelines, refineries, and compressor stations.

3. Chemical and Petrochemical Plants

   Enables accurate monitoring of process variables in reactors, separators, and distillation units.

4. Water and Wastewater Treatment

   Collects analog inputs for level sensors, chlorine concentration, and flow meters in treatment tanks.

5. Pharmaceutical Manufacturing

   Maintains regulatory compliance by ensuring environmental conditions like humidity and temperature remain within limits.

6. Food and Beverage Processing

   Interfaces with instrumentation to ensure product quality through precise environmental and flow control.

Product Advantages

The Ovation 5X00106G01 Analog Input Module offers several core benefits that enhance system reliability, scalability, and operational efficiency:

1. High Precision and Resolution

   16-bit conversion ensures highly accurate digitization of analog signals for mission-critical control decisions.

2. Versatile Signal Support

   Accepts both voltage and current signals, making it compatible with a wide range of industrial sensors and transmitters.

3. Channel Isolation

   Each of the 8 channels is independently isolated to eliminate signal interference and prevent cross-channel faults.

4. Real-Time Diagnostics

   Built-in fault detection mechanisms help identify signal loss, range violations, and wiring issues before they affect operations.

5. Seamless Ovation Integration

   Fully compatible with the Ovation I/O chassis and control architecture, simplifying deployment and reducing integration time.

6. Hot Swappability

   Designed to be replaced during live operations without causing system interruption—ideal for high-availability environments.

7. Industrial Grade Durability

   Engineered to perform in demanding environments, with wide temperature range support and long operational life.

FAQ (Frequently Asked Questions)

1. What is the main function of the 5X00106G01 module?

   • It digitizes analog input signals for processing and control within an Ovation DCS.

2. How many input channels are provided?

   • It offers 8 isolated analog input channels.

3. Which signal types are compatible with this module?

   • It supports both 4–20 mA current loops and 0–10 V voltage inputs.

4. Does this module support hot-swapping?

   • Yes, it can be inserted or removed without shutting down the system.

5. Can the module detect wiring or input faults?

   • Yes, it includes diagnostics for open wire detection and signal out-of-range alerts.

6. What kind of isolation is present between channels?

   • Each input is individually isolated to 500 V RMS to reduce electrical interference.

7. What is the resolution of the module?

   • It has a 16-bit analog-to-digital resolution.

8. Is the module suitable for outdoor use?

   • It is not weatherproof but can be used outdoors if housed in a weather-protected enclosure.

9. What are the mounting options?

   • The module is rack-mounted in standard Ovation I/O chassis.

10. Is this module certified for industrial applications?

• Yes, it is certified with UL, CE, CSA, and complies with RoHS standards.
