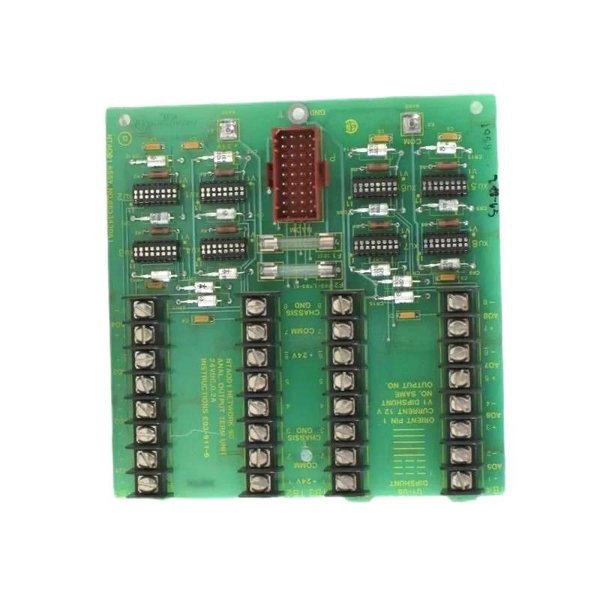

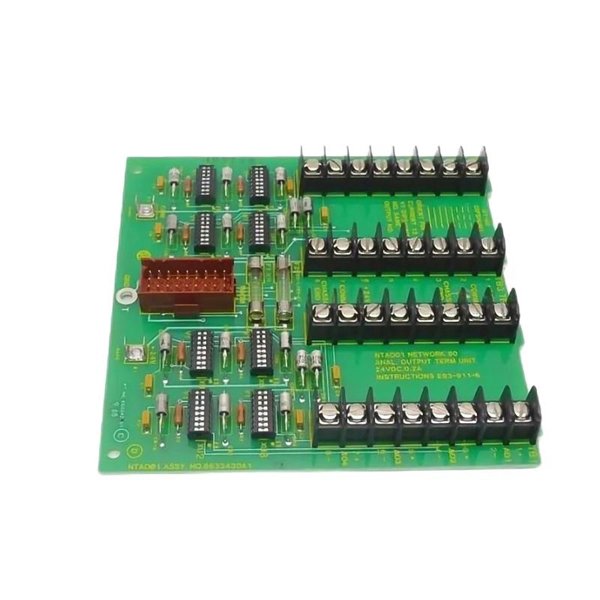

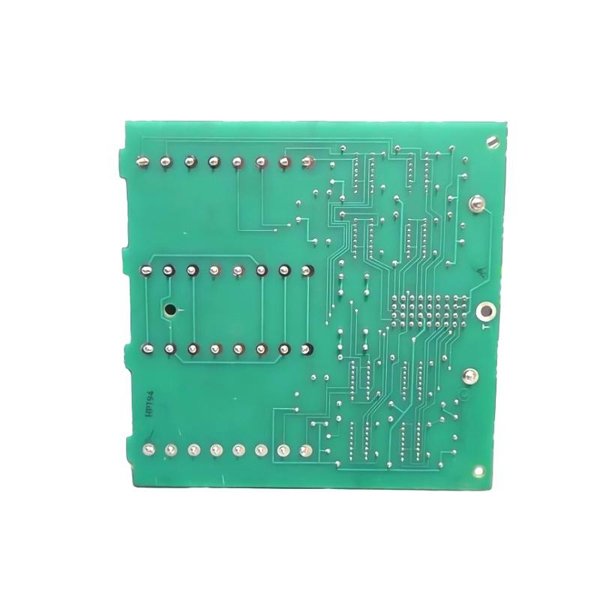

ABB Bailey NTAO01 Analog Output Termination Unit

The ABB Bailey NTAO01 Analog Output Termination Unit is an essential component of the INFI 90 Distributed Control System (DCS). It is specifically designed to terminate analog output signals that originate from control modules and transmit those signals to field actuators, I/P converters, or other analog devices. This unit acts as the critical bridge between control logic and physical actuation within an automation architecture.

The NTAO01 provides structured and shielded field wiring connections for analog outputs. It ensures the reliable transmission of signals such as 0–10 V or 4–20 mA, maintaining signal fidelity and isolating control electronics from external electrical disturbances. With a robust build and passive circuitry, it offers simple installation, reduced wiring complexity, and superior performance in high-demand industrial environments.

ABB’s commitment to long-term operational integrity is reflected in the NTAO01’s durable design, safety features, and seamless integration with other ABB Bailey systems.

Technical Specifications

Product Applications

The NTAO01 is widely used in industries that depend on accurate analog control of physical processes. It is ideal for applications involving continuous modulation and precise actuation. Common use cases include:

• Oil and Gas Refineries – Provides output control for valves, flow controllers, and pressure regulators.

• Power Generation – Issues analog control signals to turbine governors and excitation systems.

• Water and Wastewater Treatment – Drives actuator control for chemical dosing, pH correction, and pump speed modulation.

• Chemical and Pharmaceutical Plants – Interfaces with process equipment requiring modulating signal inputs.

• Food and Beverage Automation – Controls temperatures, pressure, and flow in packaging and processing systems.

• Pulp and Paper Facilities – Sends signals to adjust steam valves, pulping agitators, and drier systems.

Product Advantages

• Precise Analog Signal Delivery: Supports stable output for mission-critical field equipment.

• Superior Isolation: Protects the control system from electrical disturbances and ground loops.

• Industrial-Grade Durability: Built for long-term performance in demanding industrial conditions.

• Simplified Field Wiring: Terminal block design reduces wiring errors and shortens commissioning time.

• Integrated Protection: Built-in surge suppression protects against transient voltages.

• Seamless System Integration: Works directly with ABB Bailey analog output modules within INFI 90 systems.

Frequently Asked Questions (FAQ)

1. What does the NTAO01 module do?

   The NTAO01 terminates analog output signals from the control system and transmits them to field devices such as actuators or converters.

2. Which signal ranges does it support?

   Standard analog outputs such as 4–20 mA and 0–10 VDC.

3. Is the NTAO01 compatible with non-ABB systems?

   It is primarily intended for ABB’s INFI 90 DCS. Use with other systems may require additional interfacing.

4. How many output channels does the NTAO01 support?

   Typically 8 to 16, depending on the configuration and system design.

5. Does it provide electrical isolation?

   Yes, both channel-to-channel and channel-to-system isolation are included.

6. Can the unit be mounted on a DIN rail?

   No. It is designed for rack mounting within standard ABB cabinet systems.

7. Is surge protection included?

   Yes. Built-in surge and overvoltage protection enhance system reliability.

8. Can it be serviced in the field?

   Yes. Terminals and wiring can be accessed and maintained by qualified personnel.

9. Does the NTAO01 work with both voltage and current outputs?

   Yes, it supports both types for flexible field compatibility.

10. What environmental conditions can it withstand?

    It operates between 0°C and 60°C and is rated for up to 95% non-condensing humidity.
