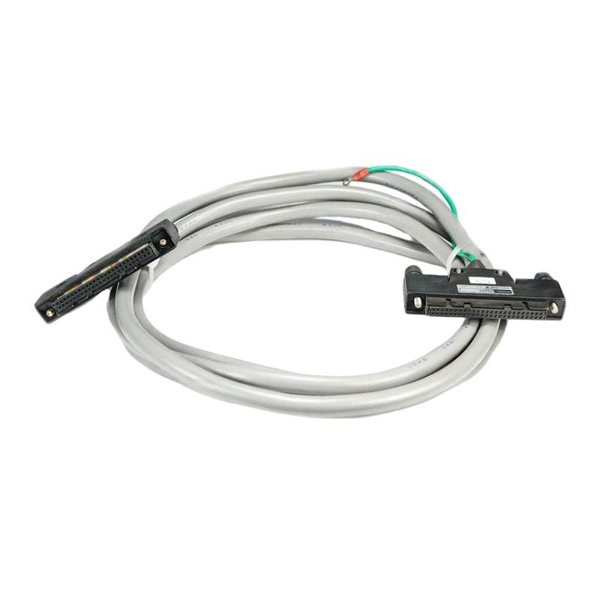

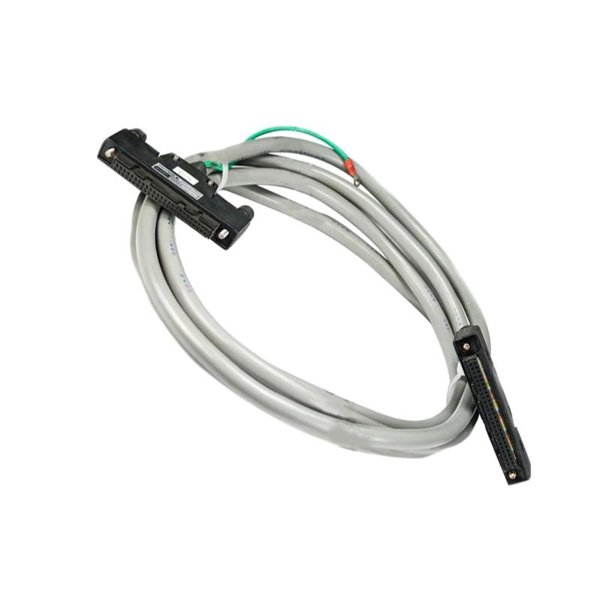

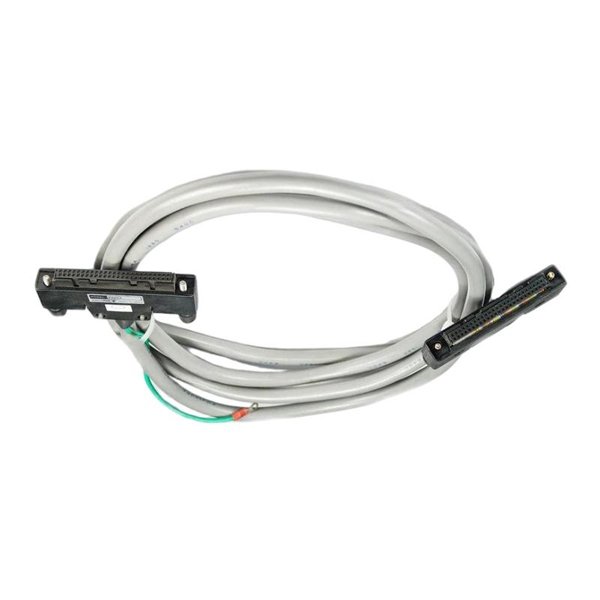

Yokogawa KS9-10*B Signal Cable

The Yokogawa KS9-10*B Signal Cable is a precision-engineered industrial cable designed for robust signal transmission in process control and measurement systems. Specifically manufactured for Yokogawa instrumentation, this cable ensures accurate and reliable communication between analyzers, controllers, and data acquisition modules.

With a 10-meter length and a shipping weight of 3 kg, the KS9-10*B is suitable for medium-to-long-distance installations, including plant-wide signal routing or control panel connections. The cable features high-purity copper conductors, PVC insulation, and an overall foil shield with a drain wire, providing excellent protection against electromagnetic interference and maintaining high signal integrity in electrically noisy environments. Its construction makes it suitable for chemical, petrochemical, power generation, and other demanding industrial applications.

Product Specifications

Applications

The KS9-10*B signal cable is suitable for multiple industrial applications, including:

• Connecting Yokogawa analyzers, controllers, and data acquisition systems over medium-to-long distances.

• Wiring within control panels or between distributed instrumentation in process plants.

• Integration into DCS or SCADA systems for real-time monitoring and control.

• Signal transmission in chemical, petrochemical, and power generation plants.

• Reliable analog and digital signal transfer in electrically noisy industrial environments.

• Connection of field instruments and transducers to Yokogawa control modules.

Advantages

• High Signal Integrity: Maintains accurate analog and digital signal transmission.

• Durable Construction: PVC insulation and outer sheath resist abrasion, moisture, and chemicals.

• Long Cable Length: 10 meters accommodates medium-to-long-distance installations.

• Industrial Compatibility: Designed to meet Yokogawa instrument standards.

• Electromagnetic Interference Resistance: Foil shield and drain wire reduce EMI.

• Temperature Range Support: Operates from –20 °C to +80 °C without signal degradation.

• Flexible and Lightweight: Simplifies installation in panels and plant wiring.

• Multi-Conductor Design: Supports multiple signals in a single cable for simplified connections.

FAQ

1. What signals can KS9-10*B carry?

It supports analog, digital, and low-voltage control signals.

2. How is EMI minimized in this cable?

Through the overall foil shield and drain wire which reduce electromagnetic interference.

3. What is the rated voltage for the cable?

The cable is rated for 300 V maximum.

4. What is the minimum bend radius during installation?

The minimum bend radius is 10 times the cable diameter.

5. Is this cable suitable for outdoor use?

It is designed for indoor industrial use; outdoor installation requires additional protection.

6. How many conductors are inside the cable?

It contains 5 cores, enabling multiple signal channels.

7. What is the conductor material and size?

High-purity copper conductors, typically 0.5 mm² cross-section.

8. What operating temperature range does the cable support?

It operates reliably from –20 °C to +80 °C.

9. Can it be used with non-Yokogawa instruments?

Potentially, if connectors and compatibility are verified, but it is optimized for Yokogawa devices.

10. Does the cable meet any compliance standards?

It is manufactured to Yokogawa instrument standards for signal integrity and industrial use.
