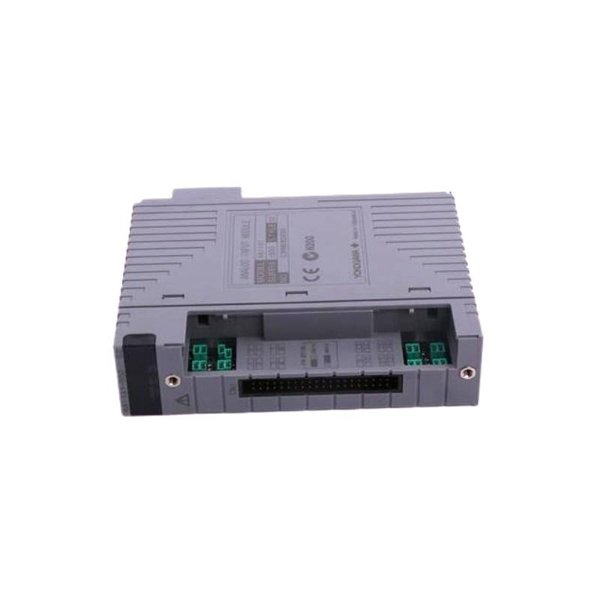

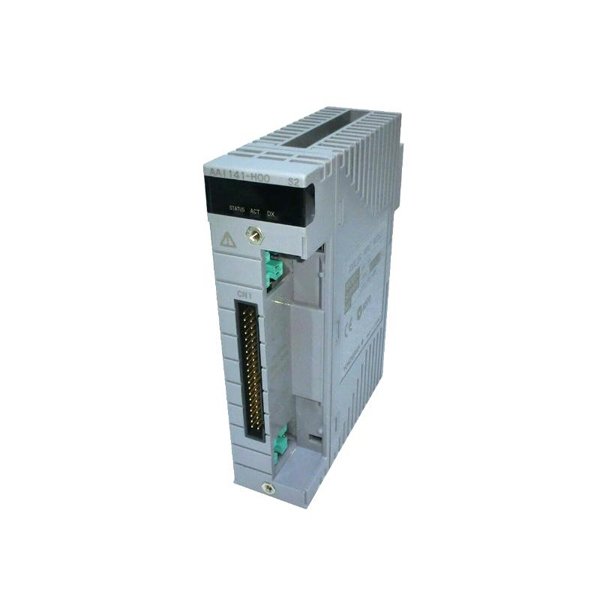

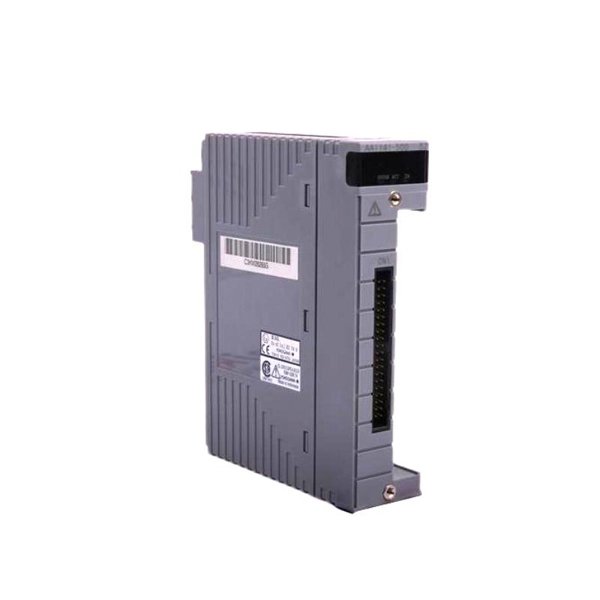

Yokogawa AAI141-S00 Analog Input Module

The Yokogawa AAI141-S00 is a high-performance Analog Input Module designed for use in the CENTUM CS 3000 and CENTUM VP distributed control systems. This module is a fundamental part of process automation solutions where reliable and precise analog signal acquisition is critical. The AAI141-S00 module features 16 isolated input channels that can accommodate various analog input signals, making it highly flexible for process control environments.

With Yokogawa’s emphasis on long-term stability, noise immunity, and high accuracy, this module ensures consistent data acquisition for analog signals such as temperature, pressure, flow, or level, typically originating from field transmitters. The AAI141-S00 is well-suited for use in industries such as oil & gas, chemical, petrochemical, power, and water treatment.

Product Specifications

Product Applications

The AAI141-S00 module is utilized across a wide range of process automation sectors due to its versatility and robust design. Common application areas include:

• Oil & Gas Facilities: Monitoring and controlling wellhead pressure, flow rates, and temperatures.

• Chemical Plants: Inputting analog data from pH sensors, flowmeters, and temperature transmitters.

• Power Plants: Gathering data from boiler temperature sensors and turbine condition monitoring.

• Water Treatment Plants: Monitoring pH, chlorine, and turbidity levels.

• Pulp and Paper Mills: Used for process temperature and pressure acquisition.

These applications demand reliable signal conversion and long-term operational stability, both of which are strengths of the AAI141-S00.

Product Advantages

• High Signal Accuracy: The 16-bit resolution ensures high-precision analog input data acquisition.

• Channel Isolation: Each input channel is isolated, minimizing noise and improving signal reliability.

• Scalable Design: Supports 16 inputs, making it ideal for both medium and large-scale installations.

• Robust Build Quality: Designed to operate reliably in harsh industrial environments.

• Seamless Integration: Native compatibility with Yokogawa CENTUM systems ensures smooth deployment.

• Low Power Consumption: Optimized for efficiency without compromising performance.

• Long-Term Stability: Engineered with high-quality components to reduce drift and ensure consistent performance over time.

• Modular System Compatibility: Easily replaceable and expandable within the system rack.

Frequently Asked Questions (FAQ)

1. What signal types does the AAI141-S00 support?

   It supports standard 4–20 mA DC analog signals from field devices.

2. Can the AAI141-S00 be used in hazardous environments?

   Yes, it is often certified for use in hazardous areas when paired with appropriate isolators or barriers.

3. Does the module provide signal isolation between channels?

   Yes, each input channel is individually isolated to ensure accurate readings and prevent interference.

4. Is the AAI141-S00 hot-swappable?

   No, the module should be replaced while the system is powered down to avoid potential damage.

5. What systems is this module compatible with?

   It is fully compatible with Yokogawa CENTUM VP and CS 3000 systems.

6. How many channels does this module support?

   The AAI141-S00 has 16 analog input channels.

7. What kind of maintenance does this module require?

   It requires minimal maintenance, typically periodic calibration checks and environmental cleanliness.

8. Is there diagnostic functionality available?

   Yes, the module includes self-diagnostics for error detection and reporting.

9. What is the typical lifespan of the module?

   Under normal conditions, the module can last over 10 years with routine care.

10. Can it be used in redundant systems?

    Yes, it is often used in redundant configurations in mission-critical processes.
