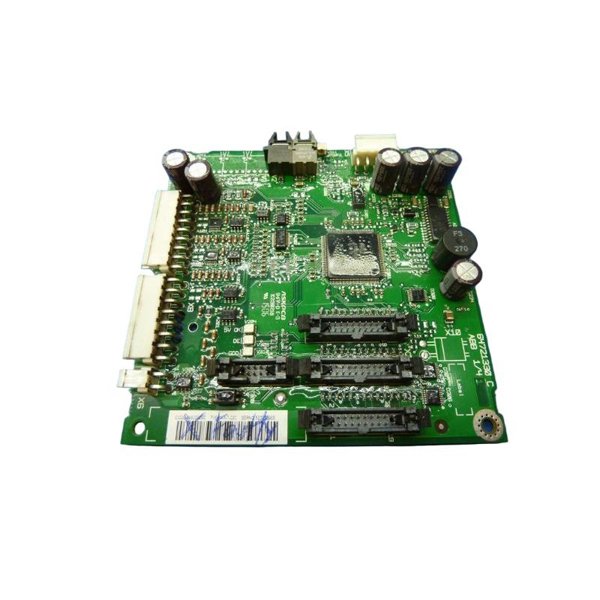

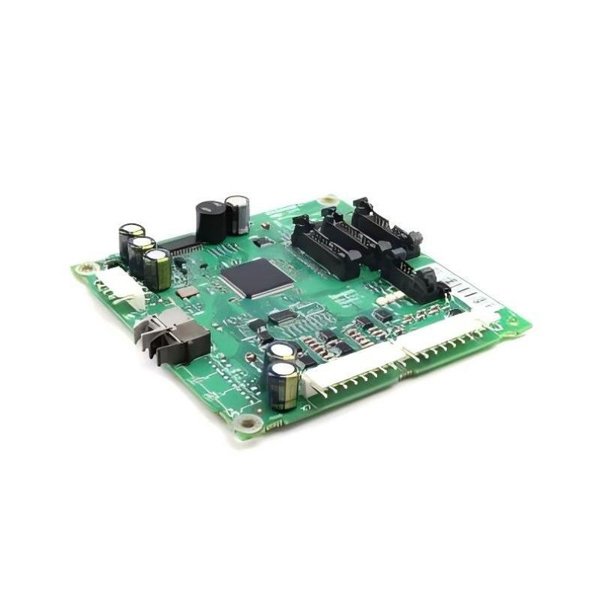

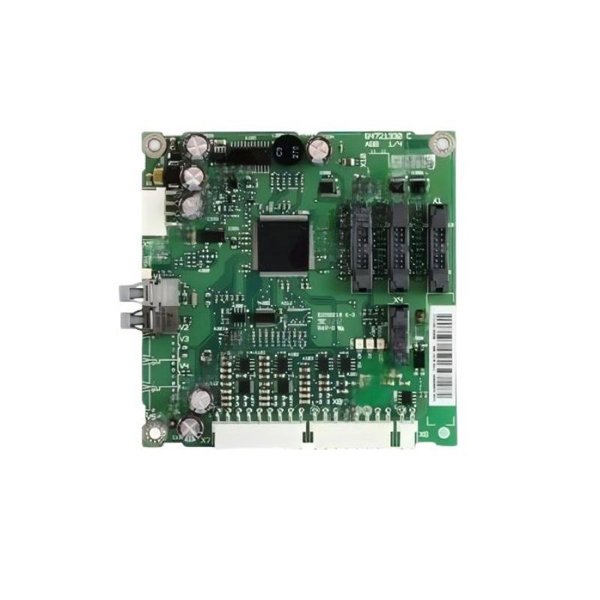

ABB AINT-02C 64802909 SP Suite Main Interface

The AINT-02C 64802909 SP Suite Main Interface is a crucial element in ABB’s automation architecture, designed to bridge field-level signals and control systems through a streamlined communication path. As the central interface of the SP suite, the AINT-02C ensures high-speed data exchange, secure connections, and compatibility with a wide range of industrial applications.

Engineered for robust environments, this module offers a compact form factor and reliable performance under demanding conditions. Whether for energy, process, or discrete manufacturing sectors, the AINT-02C enhances system performance through seamless integration and efficient operation.

Product Specifications

Product Applications

The AINT-02C is utilized across a broad spectrum of industrial and infrastructure environments, offering flexible integration and reliable performance. Its main applications include:

• Process Automation: Integrating instruments and control systems in industries such as oil & gas, petrochemical, and pharmaceuticals.

• Discrete Manufacturing: Enabling efficient signal exchange between machinery, sensors, and actuators in production lines.

• Power and Energy: Used in energy distribution systems for control, monitoring, and real-time diagnostics.

• Building Automation: Linking HVAC, lighting, and safety systems in smart building infrastructures.

• Water and Wastewater Treatment: Providing accurate interface and control functions in water management systems.

• Transportation Systems: Deployed in railways and airports for system monitoring and environmental control.

Product Advantages

The AINT-02C SP Suite Main Interface stands out due to its balance of innovation, durability, and simplicity. Its core advantages include:

• Robust Industrial Design: Built to withstand wide temperature ranges and electrical noise.

• Seamless ABB Integration: Fully compatible with ABB’s automation platforms and controllers.

• Efficient Communication: Supports Modbus TCP/IP for fast, real-time data exchange.

• Compact Form Factor: Designed for space-constrained installations without compromising functionality.

• Quick Installation: DIN rail mount and preconfigured interfaces allow rapid deployment.

• Energy Efficient: Low power consumption with high operational reliability.

• Multi-Signal Support: Handles both analog and digital signals within a single device.

• Minimal Downtime: High reliability and diagnostics capability reduce maintenance frequency.

• Global Certifications: CE and UL certified for international applications.

• Cost-Effective Lifecycle: Delivers long-term performance and reduced operational costs.

Frequently Asked Questions (FAQ)

1. What is the role of the AINT-02C in ABB’s SP suite?

   It acts as the central interface module for connecting field devices to higher-level control systems.

2. Is the AINT-02C compatible with third-party systems?

   Yes, thanks to its support for open protocols like Modbus TCP/IP, it can interface with non-ABB systems.

3. What is the rated voltage for this module?

   The module operates on 24 VDC.

4. Can it be used in outdoor installations?

   It can be installed in protected outdoor environments, but typically requires an IP-rated enclosure.

5. What are the environmental tolerances of the device?

   It supports operating temperatures from -40°C to 70°C and humidity levels up to 95% non-condensing.

6. Does it support both analog and digital signals?

   Yes, it supports both signal types for flexible I/O configuration.

7. Is configuration software required?

   It may require basic configuration through ABB’s engineering tools or HMI systems, depending on the setup.

8. Can it be used for safety-critical applications?

   While robust, it must be paired with safety-rated systems for critical applications.

9. What mounting options are available?

   It is designed for DIN rail mounting for standard industrial enclosures.

10. How much does the module weigh?

    It weighs approximately 0.1 kg.
