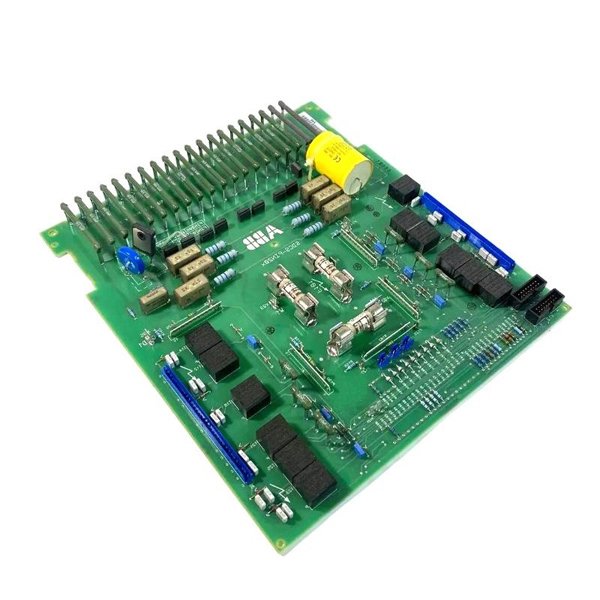

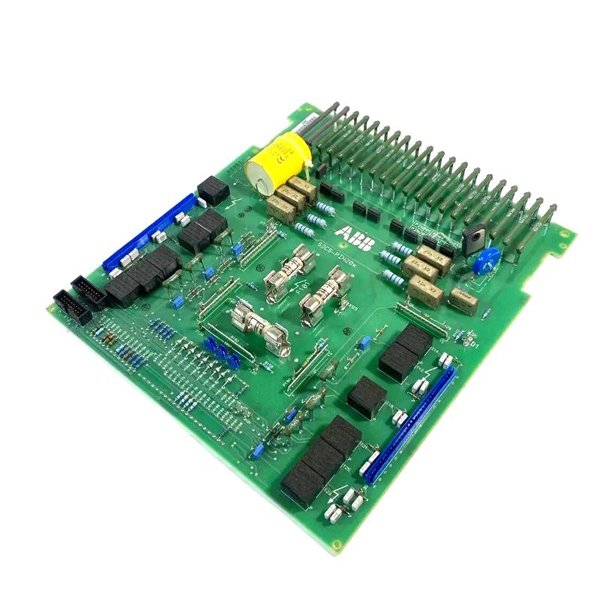

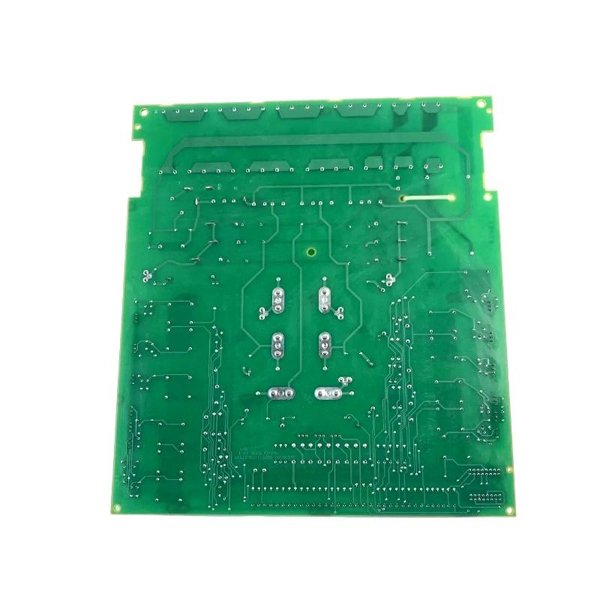

ABB SDCS-PIN-205A 3ADT310500R0102 Interface Board

The ABB SDCS-PIN-205A 3ADT310500R0102 is a high-performance interface board used in ABB’s industrial drive systems. Designed to facilitate efficient communication between various control and power electronics modules within the drive system, this board is part of the SDCS (Speed Drive Control System) product family and is essential for ensuring smooth and reliable drive operations.

Engineered with ABB’s standard of precision and reliability, the SDCS-PIN-205A plays a critical role in DC drive applications. It is typically installed within DCS500/DCS600/DC industrial drive systems where robust signal processing and interface flexibility are required. The board includes high-speed signal inputs/outputs, diagnostic LEDs, and supports robust plug-and-play integration.

Technical Specifications

Applications

The SDCS-PIN-205A is primarily used in:

• Industrial DC Drive Systems – Ensures communication between power and control sections.

• DCS500 and DCS600 Drives – As an original interface card, it’s tailored for ABB’s legacy and active drives.

• Motor Control in Heavy Industries – Ideal for paper mills, steel plants, and mining operations.

• Retrofit Projects – Useful in upgrading or replacing parts in older ABB drive systems.

• Automation Panels – For system builders needing reliable drive interface solutions.

Key Advantages

• Reliable Communication Interface: Ensures stable and high-speed data exchange between drive control units.

• ABB Original Design: Manufactured to exacting ABB standards with long-term support and compatibility.

• Plug-and-Play Installation: Simplifies setup and reduces downtime during maintenance or replacement.

• Durable and Industrial-Grade: Withstands tough environmental conditions common in industrial plants.

• Diagnostic Capability: Built-in LEDs help technicians easily identify operational states and issues.

• Long Service Life: Designed for long operational cycles under continuous use.

Frequently Asked Questions (FAQ)

1. Can the SDCS-PIN-205A be installed directly into all DCS500 systems?

   Yes, but ensure the firmware version of the drive controller matches the board’s supported interface protocols.

2. What are common failure symptoms of the SDCS-PIN-205A?

   Frequent drive communication loss, error codes related to control signals, or unresponsive I/O channels.

3. Is it necessary to recalibrate the drive after replacing the board?

   Not typically, but verifying I/O mapping and signal routing through the drive configuration tool is recommended.

4. How is the SDCS-PIN-205A electrically protected?

   It includes onboard protection against overvoltage and signal noise but must still be installed in a shielded, grounded cabinet.

5. What precautions should be taken when wiring external connections?

   Use twisted-pair shielded cables for analog signals, and maintain isolation from high-voltage circuits to prevent interference.

6. Can two SDCS-PIN-205A boards be used in parallel systems?

   Yes, in dual-drive setups, but each must be configured independently within its respective drive unit.

7. What’s the maximum cable length supported by the board for external I/O?

   Up to 50 meters for digital signals and 10 meters for analog, assuming shielded industrial-grade cabling is used.

8. What happens if the board receives a signal spike or noise surge?

   It may trigger fault protection and shut down the drive. Proper filtering and grounding can prevent this.

9. Does the board support redundancy or hot backup switching?

   No, redundancy must be implemented at the system controller level, not within the board itself.

10. Which control pins on the board are most commonly used for drive enable logic?

    Terminals X1:5 and X1:7 are typically used for enabling signals, but exact functions depend on system wiring.
