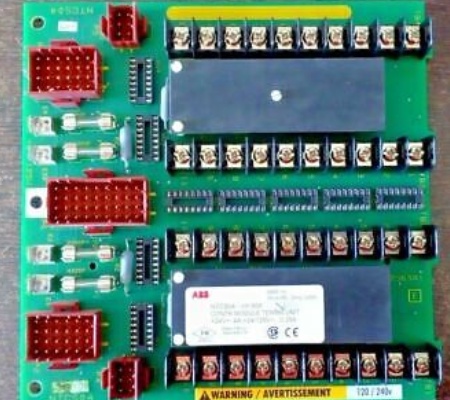

ABB NTCS04 Digital I/O Terminal Unit

ABB NTCS04 Digital I/O Terminal Unit is an industrial component used to connect digital signals between field devices and control systems. It provides a compact modular solution for integrating digital I/O signals in various industrial environments, enabling efficient communication and reliable equipment control.

The NTCS04 handles digital inputs and digital outputs, enabling it to interface with binary field devices. Digital inputs (DI) receive on/off signals from devices such as push buttons, limit switches, or proximity sensors. Digital outputs (DO) are used to control actuators, relays, solenoids, and other binary devices.

The NTCS04 provides isolation between field devices and the control system, ensuring that signals are clean and not interfered with or corrupted. It features protection against voltage spikes, reverse polarity, and electromagnetic interference (EMI), which is important in harsh industrial environments.

High-quality digital signal processing:

It is designed for high-speed signal processing for real-time control and monitoring of field devices. It ensures reliable and fast communication between inputs and outputs with minimal signal degradation.

Frequently asked questions about the product are as follows:

-What is the main purpose of the ABB NTCS04 digital I/O terminal unit?

The NTCS04 connects digital field devices to a control system such as a PLC or SCADA system. It processes on/off signals, thereby controlling and monitoring industrial equipment.

-How do I install the NTCS04 unit?

Mount the unit on a DIN rail inside a control panel. Connect the digital inputs to the input terminals. Connect the digital outputs to the output terminals. Connect the unit to a 24V DC power supply to power it.

Check the wiring and check the LED indicators to ensure proper operation.

-What types of digital signals can the NTCS04 handle?

The NTCS04 can handle digital inputs from field devices and digital outputs for controlling equipment. The device can support sink or source configurations for inputs and relay or transistor outputs for outputs.
