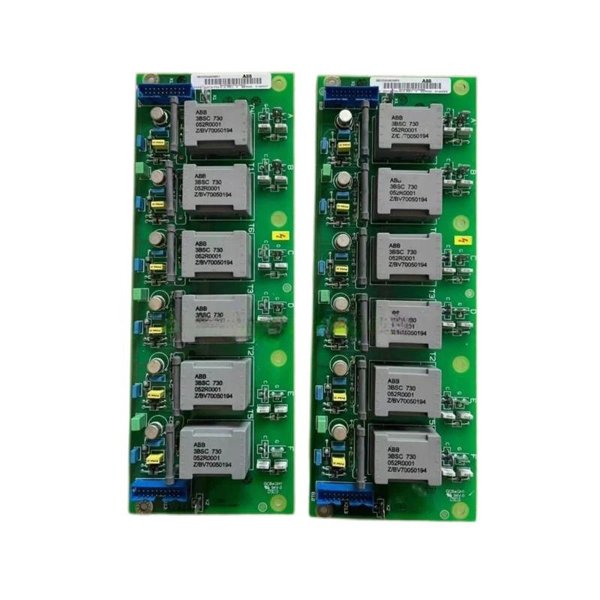

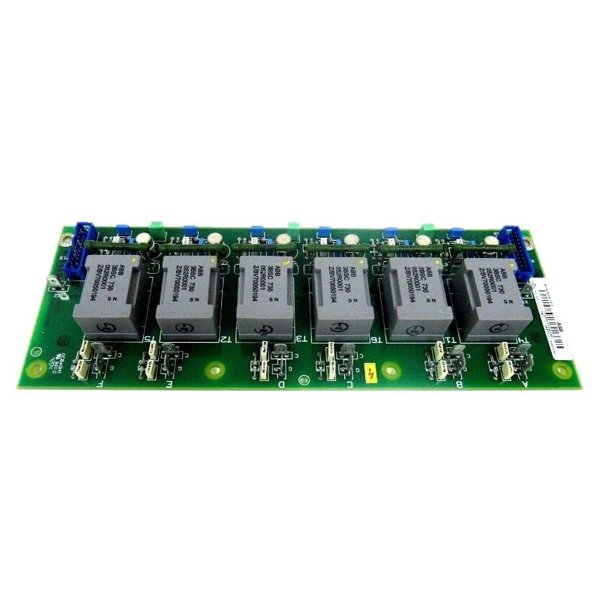

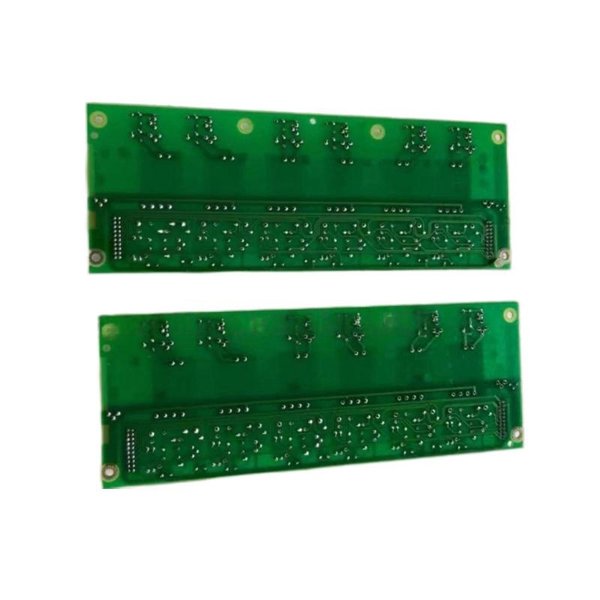

ABB SDCS‑PIN‑41A 3ADT220090R0005 Power Interface Board

The ABB SDCS‑PIN‑41A 3ADT220090R0005 is a high-performance power interface board designed for ABB’s DC drive systems. This board is engineered for use with ABB’s DCS400, DCS500, and DCS600 series and acts as the essential power interface between the control electronics and the power section. By handling power distribution, signal conditioning, and protection, the SDCS‑PIN‑41A plays a crucial role in ensuring the seamless operation of ABB’s drive systems.

Built with an industrial-grade, multi-layer PCB and designed to operate under demanding conditions, this board ensures the smooth and stable flow of DC power to the motor drives. Its compact size (265 x 282 x 40 mm) and efficient design make it easy to install in existing systems, while its robust performance ensures minimal downtime and reliable operation in industrial environments.

This power interface board is essential for applications that require high precision, reliable power distribution, and safety in complex automation systems. Whether in steel production, mining, or pulp and paper industries, the SDCS‑PIN‑41A ensures that ABB DC drives perform optimally even in harsh and high-demand environments.

Product Specifications

Product Applications

The SDCS‑PIN‑41A is used in various industrial applications where reliable and efficient power distribution is essential. Its role in ABB’s DC drive systems makes it ideal for:

• Steel Mills – Managing precise power for rolling mills, blast furnaces, and other equipment in the steel production process.

• Pulp and Paper Mills – Providing stable power distribution to paper machines, winders, and cutters for high-speed operation.

• Mining and Minerals – Ensuring reliability in conveyors, crushers, and hoists, where heavy-duty DC motors are required.

• Marine and Offshore – Powering propulsion systems, cranes, and winches on ships and offshore rigs, requiring rugged and reliable performance.

• Material Handling Systems – Enabling smooth operation of automated conveyors, stackers, and sorters in warehouses and distribution centers.

• Test Benches – Supplying clean power and stable feedback to motors in research and development test stands.

Product Advantages

1. High Power Handling – Capable of handling up to 600 VDC, the SDCS‑PIN‑41A supports demanding power applications while maintaining system stability.

2. Compact Design – The small footprint (265 x 282 x 40 mm) and light weight (0.56 kg) allow easy installation, even in space-constrained environments.

3. Industrial Grade Reliability – The multi-layer PCB and high-quality components ensure long-term stability and performance in harsh industrial conditions.

4. Enhanced Protection – The SDCS‑PIN‑41A incorporates built-in protection mechanisms to guard against surges and voltage spikes, extending the lifespan of the connected drive components.

5. Quick Installation and Replacement – With plug-in spring terminals and ribbon connectors, the board can be installed or replaced quickly, reducing downtime.

6. Improved Efficiency – The efficient power routing and signal conditioning features ensure optimized performance, contributing to overall system efficiency.

7. Versatile Compatibility – Compatible with multiple ABB drive series, it provides flexibility in system design and integration.

8. Low Maintenance – The board requires minimal maintenance, and its durability in harsh conditions reduces the need for frequent replacements.

9. Seamless Integration – Designed to integrate seamlessly with ABB’s DCS400, DCS500, and DCS600 drive systems, it ensures smooth operation.

10. Safety Compliance – Fully compliant with international safety standards such as CE and RoHS, the board ensures safe operation in industrial settings.

Frequently Asked Questions (FAQ)

1. What does the SDCS‑PIN‑41A power interface board do?

   It distributes DC power, conditions feedback signals, and provides protection between the drive’s control electronics and power section.

2. Can the SDCS‑PIN‑41A be used with any ABB drive model?

   No, it is specifically designed for use with ABB’s DCS400, DCS500, and DCS600 series of DC drives.

3. What is the voltage rating for the SDCS‑PIN‑41A?

   The board is rated for up to 600 VDC, which is ideal for industrial applications.

4. What is the weight and size of the SDCS‑PIN‑41A?

   The board weighs 0.56 kg and measures 265 x 282 x 40 mm, making it compact for easy installation.

5. Does the SDCS‑PIN‑41A require special cooling?

   It relies on the drive’s built-in ventilation system for cooling, ensuring optimal thermal management.

6. Can the SDCS‑PIN‑41A be easily replaced?

   Yes, the board features plug-in connectors that simplify installation and replacement without the need for complex tools.

7. What environmental conditions can the SDCS‑PIN‑41A withstand?

   The board operates in temperatures ranging from 0°C to +55°C and is resistant to humidity up to 95% non-condensing.

8. Is the SDCS‑PIN‑41A compliant with safety standards?

   Yes, it meets CE, RoHS, and ISO 9001 standards, ensuring it is safe for industrial use.

9. What are the power protection features on the SDCS‑PIN‑41A?

   The board includes built-in surge protection and current-limiting features to safeguard sensitive components against power spikes.

10. Where can I purchase replacement SDCS‑PIN‑41A boards?

    Replacement boards are available through ABB distributors, service partners, and through ABB’s global support network.
