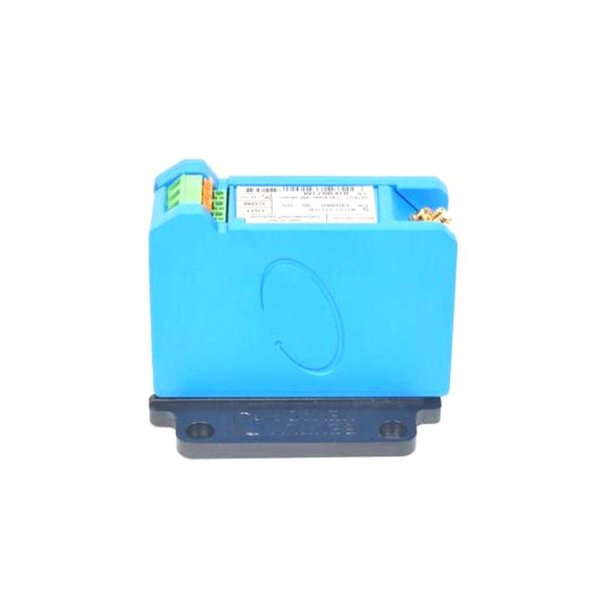

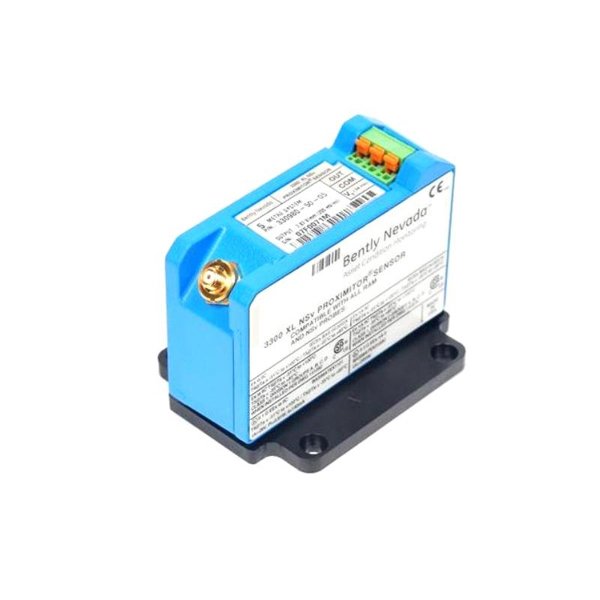

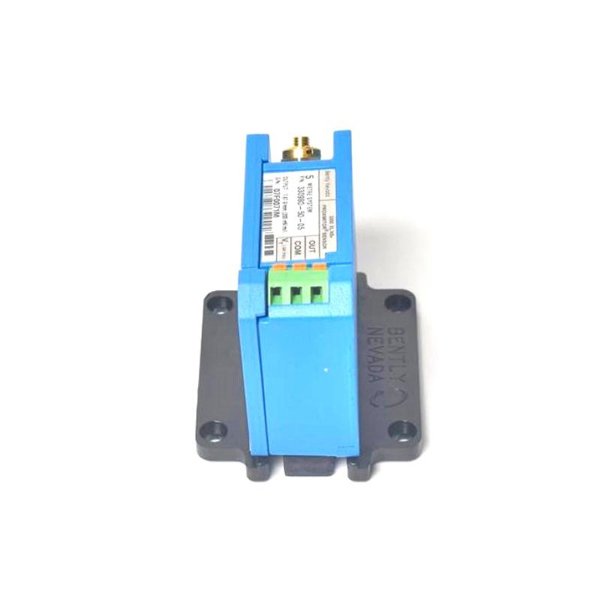

Bently Nevada 330980-50 3300 XL NSv Proximitor Sensor

The Bently Nevada 330980-50 3300 XL NSv Proximitor Sensor is part of the trusted 3300 XL series designed by GE Bently Nevada, a globally recognized leader in machinery condition monitoring and protection. This sensor is specifically engineered for applications requiring small target proximity measurements, particularly in areas where space is limited or where the target materials are non-standard. It forms part of a complete proximity measurement system when used with matching probe and extension cable.

This model offers a linear output over a specific range for precise position and vibration measurements and is optimized for narrow target surfaces, making it ideal for use on smaller machinery such as motors, pumps, and gearboxes where standard sensors cannot be applied effectively.

Product Specifications

Applications

• Monitoring radial vibration and axial position in small and mid-sized rotating machinery

• Suitable for machines with limited installation space such as:

  • Small turbines

  • Gearboxes

  • Compressors

  • Electric motors

  • Pumps

• Ideal for detecting shaft displacement in tight or compact enclosures

• Commonly used in industries such as power generation, oil & gas, chemical, and marine

Advantages

• Compact Design: Engineered specifically for limited-space installations

• Reliable Output: Provides highly linear, accurate vibration data

• Proven Durability: Withstands harsh industrial environments with ease

• Compatibility: Fully works with Bently Nevada 3300 XL probes and extension cables

• Low Power Consumption: Energy-efficient circuitry for extended uptime

• Field-Proven Technology: Backed by Bently Nevada’s long-standing performance history

• Easy Maintenance: Standardized connectors and mounting simplify service and integration

FAQ

1. Q: What does NSv stand for in this product?

   A: NSv stands for Narrow Side-view, indicating the sensor is optimized for small or limited target areas.

2. Q: Can this sensor be used in high-temperature environments?

   A: Yes, it operates effectively up to +100°C and can be stored in temperatures up to +177°C.

3. Q: Is it compatible with other Bently Nevada systems?

   A: Absolutely. It integrates seamlessly with 3300 XL probes and extension cables.

4. Q: What is the standard length of the extension cable?

   A: This model includes a 5.0-meter cable.

5. Q: How is the sensor mounted?

   A: It uses a 1/4-28 UNF mounting thread for secure installation.

6. Q: Does it require calibration during installation?

   A: Minimal calibration is needed if all system components are correctly matched.

7. Q: What type of output signal does it generate?

   A: It provides a voltage output of -200 mV/mil, or -7.87 mV/μm.

8. Q: What materials can this proximity sensor detect?

   A: Primarily metallic targets, especially those with a conductive surface.

9. Q: Is it suitable for use in hazardous environments?

   A: Yes, when used with the appropriate certified enclosures and approvals.

10. Q: What industries commonly use this sensor?

    A: Oil & gas, petrochemical, power generation, marine, and heavy industrial sectors.
