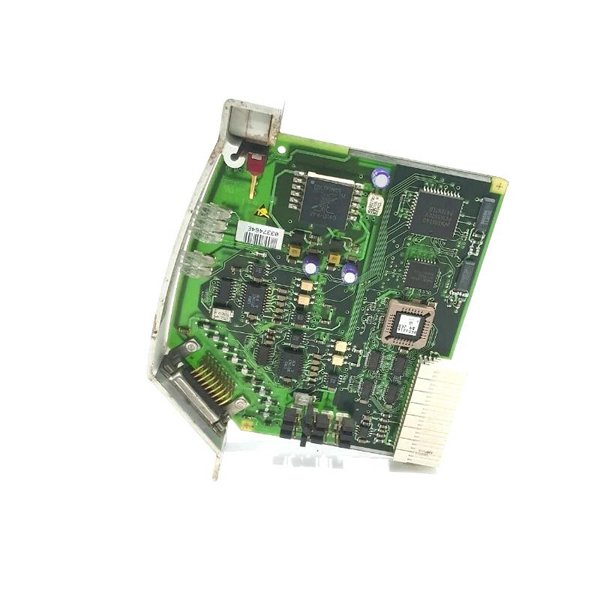

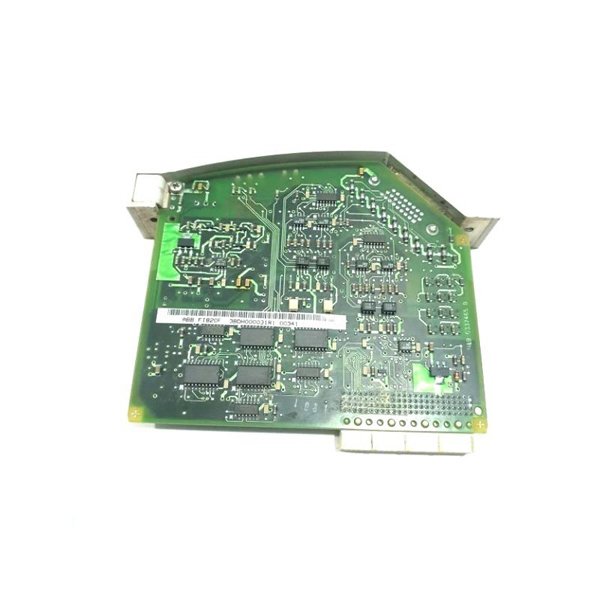

ABB FI820F 3BDH000031R1 Fieldbus Module
Manufacturer:ABB
Product Number:FI820F 3BDH000031R1
Product Type:Fieldbus Module
Origin:Sweden (SE)
Dimensions:125 ×155 ×28 mm
Weight:0.145 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB FI820F 3BDH000031R1 Fieldbus Module is a serial interface module designed for the ABB AC 800F FieldController. It provides two serial communication channels that support multiple protocols such as Modbus (master/slave), Protronic, telecontrol, and Sartorius scale. It is typically installed in slots F1–F4 of the controller. This module enables integration of various serial-based field devices into a Freelance control system.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | FI820F Fieldbus Module |
| Part Number | 3BDH000031R1 |
| Communication Channels | 2 (serial) |
| Supported Protocols | Modbus (Master/Slave), Telecontrol, Protronic, Sartorius |
| Mounting Slots | F1–F4 of AC 800F FieldController |
| Dimensions | 125 × 155 × 28 mm |
| Weight | 0.145 kg |
| Compatible Controller | ABB AC 800F |
| Usage Environment | Industrial automation systems |
Applications
-
Connecting serial field devices like bar code readers, scales, or subsystems to the AC 800F.
-
Integration of Modbus-based equipment in process control.
-
Expanding control system capabilities without complex wiring.
-
Retrofitting legacy equipment into modern ABB Freelance systems.
Advantages
-
Supports multiple serial protocols for broad compatibility.
-
Compact and lightweight design for easy installation.
-
Enhances system flexibility and scalability.
-
Reliable communication with field devices.
-
Plug-and-play integration with ABB AC 800F.
FAQ
Q1: What is the main purpose of the FI820F module?
A1: It enables serial communication between the AC 800F controller and external devices using protocols like Modbus.
Q2: How many communication channels does it provide?
A2: It provides 2 independent serial channels.
Q3: Which slots can the FI820F be installed in?
A3: It can be installed in slots F1 to F4 of the AC 800F.
Q4: What protocols does it support?
A4: It supports Modbus Master/Slave, Telecontrol, Protronic, and Sartorius.
Q5: Is it possible to use more than one FI820F in a controller?
A5: Yes, up to four FI820F modules can be used in the AC 800F.
Q6: What is the weight of the module?
A6: The module weighs approximately 0.145 kg.
Q7: Does it require additional power supply?
A7: No, it is powered by the AC 800F controller itself.
Q8: Can it be hot-swapped?
A8: No, the module must be installed when the system is powered down.
Q9: What is the typical use case of FI820F?
A9: Integrating serial devices like scales, barcode readers, or remote I/O panels into the ABB Freelance control system.
Q10: Is it suitable for redundant configurations?
A10: Yes, the module can be used in redundant AC 800F setups.
