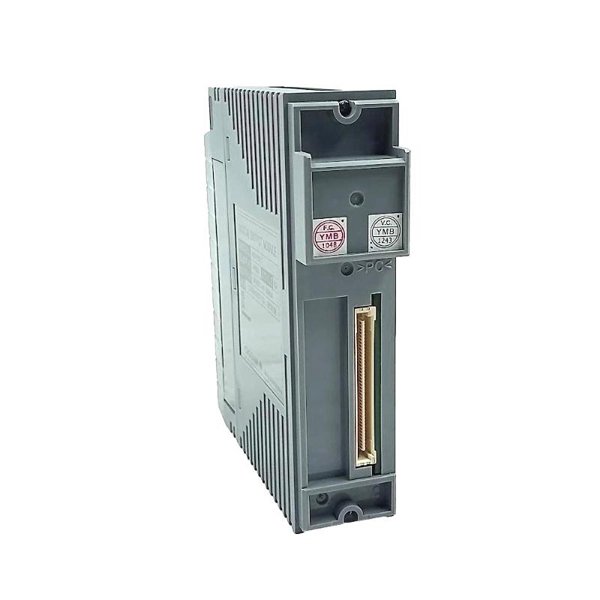

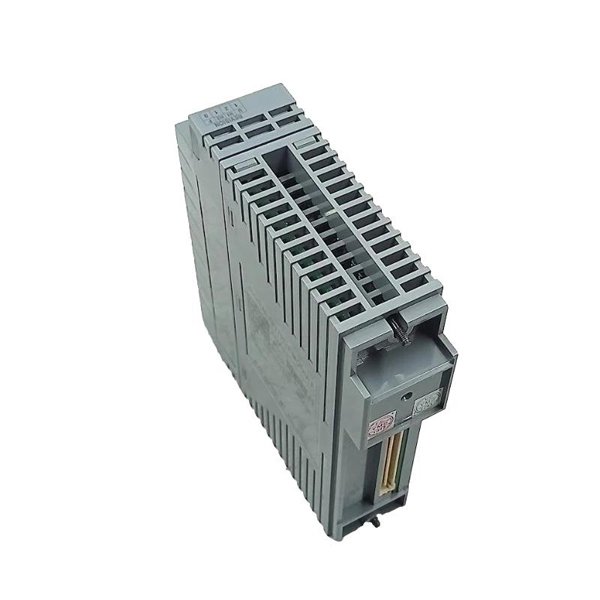

Yokogawa ADV551-P60/D5S00 Digital Output Module

The Yokogawa ADV551-P60/D5S00 Digital Output Module is a high-performance module designed for Yokogawa’s CENTUM VP distributed control system. It serves as a critical interface to convert digital commands from the control system into discrete relay outputs. This module is used to control a variety of field devices such as actuators, solenoids, alarms, and other on/off equipment, providing reliable and precise switching capability essential for process automation and control.

Constructed with industrial robustness, the ADV551-P60/D5S00 ensures stable operation even in challenging environments. Its modular and rack-mount design allows easy integration and maintenance within Yokogawa’s scalable control architecture, supporting efficient plant operations with minimal downtime.

Product Parameters

Product Applications

The ADV551-P60/D5S00 Digital Output Module is broadly applicable in diverse industrial automation settings, including:

• Process Automation — Controlling valves, pumps, motor starters, and other actuators.

• Alarm and Notification Systems — Activating alarms, buzzers, and indicator lights as part of safety and process monitoring.

• Batch Processing Control — Delivering precise digital output signals to coordinate batch sequences and operations.

• Safety Interlocks — Managing emergency stop circuits, safety interlock relays, and shutdown devices.

• Utility Equipment Control — Operating auxiliary equipment such as fans, compressors, and circuit breakers.

• Distributed Control Systems — Integrating seamlessly with the CENTUM VP system for centralized process control.

Product Advantages

• High Current Capacity — Supports relay contacts rated for 5 A, enabling control of higher power field devices.

• Reliable and Durable Contacts — Form A relay contacts ensure consistent and safe switching operations.

• Comprehensive Isolation — Ensures electrical isolation between channels and the system, protecting control circuits.

• Fast and Accurate Response — Response times of 20 milliseconds or less support timely process control.

• Designed for Industrial Environments — Operates reliably across wide temperature and humidity ranges.

• Seamless Integration — Fully compatible with Yokogawa CENTUM VP communications and architecture.

• Modular and Maintainable — Rack-mounted form factor simplifies installation, replacement, and system scalability.

FAQ

1. What type of output contacts does the ADV551-P60/D5S00 provide?

   The module provides Form A relay contacts.

2. How many digital output channels are available?

   The module supports 16 discrete relay output channels.

3. What is the maximum current rating per relay contact?

   Each contact is rated for 5 A at 250 VAC or 5 A at 30 VDC.

4. Does the module provide electrical isolation?

   Yes, it provides both channel-to-channel and channel-to-system isolation.

5. What is the typical response time for the outputs?

   The response time is equal to or less than 20 milliseconds.

6. Can the module switch both AC and DC loads?

   Yes, it supports switching of AC loads up to 250 V and DC loads up to 30 V.

7. What communication protocol does it use with the CENTUM VP system?

   It uses Yokogawa’s proprietary communication bus designed for CENTUM VP integration.

8. What are the operating environmental conditions?

   The module operates between 0°C and 55°C, and 5% to 95% relative humidity (non-condensing).

9. What is the module’s power consumption?

   Approximately 7 watts during operation.

10. How is the module mounted within the control system?

    It is rack-mounted within Yokogawa CENTUM VP control racks for easy integration.
