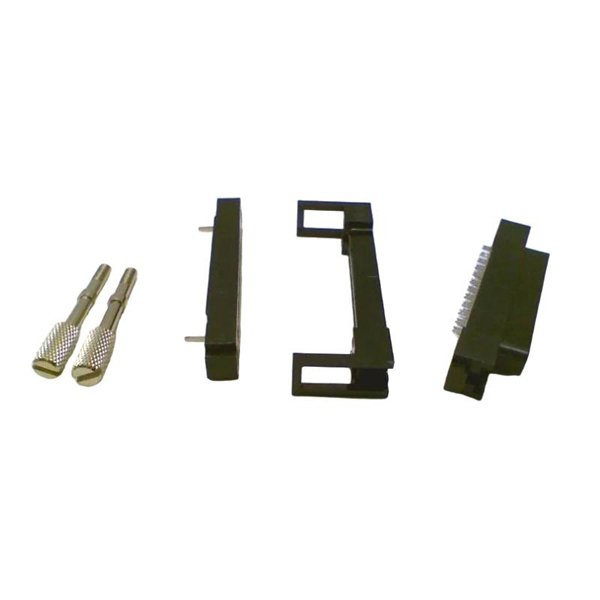

General Electric IC693ACC318 Cable Connector Kit

The GE IC693ACC318 Cable Connector Kit is a vital accessory in the GE Series 90-30 automation platform, specifically engineered to provide dependable electrical connections between discrete I/O modules and external field devices. This connector kit offers a complete, easy-to-install solution for secure cable termination, minimizing wiring errors and improving panel layout efficiency.

Designed for industrial use, the IC693ACC318 simplifies installation and servicing of I/O modules by offering a well-labeled, durable connection interface. It is commonly used in a variety of automated systems where reliable and clean signal transmission is essential.

Product Specifications

Product Applications

• PLC I/O Connections: Acts as a reliable interface between GE Series 90-30 modules and field wiring.

• Control Panels: Enables clean, modular cable management within industrial control cabinets.

• Signal Distribution: Supports the distribution of analog or digital signals from PLCs to peripheral devices.

• OEM Equipment: Often installed in automated machinery that requires fast field wiring.

• Manufacturing Systems: Used in high-speed production lines where quick disconnect/reconnect is required.

• Process Automation: Facilitates safe and standardized wiring in industries like oil & gas, pharmaceuticals, and utilities.

Product Advantages

• Compact Design: Small footprint allows it to fit into tight control panels or crowded module racks.

• Ease of Installation: Plug-and-play style connection reduces wiring time and simplifies maintenance.

• Secure Connection: Ribbon cable interface ensures stable electrical contact in vibration-prone environments.

• Standardized Interface: Compatible with commonly used ribbon cables and GE Series 90-30 architecture.

• Durability: Constructed from high-grade thermoplastic materials for extended service life.

• Improved Panel Organization: Helps reduce wiring clutter by bundling signal lines into a single interface.

• Versatility: Supports both input and output module applications.

• Field Proven: Trusted in thousands of industrial applications worldwide.

Frequently Asked Questions (FAQ)

1. What is the GE IC693ACC318 used for?

   It is a cable connector kit used to interface GE Series 90-30 I/O modules with ribbon cables for easy wiring.

2. Which cable type is compatible with this connector?

   It is designed for flat ribbon cables, typically IDC type, with a 20-pin layout.

3. Does the kit include mounting hardware?

   Yes, the connector kit usually includes the necessary clips or screws for mounting.

4. Can this connector be reused after disconnection?

   Yes, it is reusable if handled properly during installation and removal.

5. Is it compatible with both analog and digital I/O modules?

   Yes, as long as the module supports a ribbon cable connection.

6. What are the housing materials made from?

   The connector uses flame-retardant thermoplastic materials with metallic pins.

7. Does it require soldering?

   No, it uses a clamp-style IDC mechanism that does not require soldering.

8. Is the IC693ACC318 connector kit UL certified?

   Yes, it holds UL and CE certifications for industrial use.

9. Can I use this with a non-GE PLC?

   It is designed specifically for GE Series 90-30 modules and may not fit non-GE hardware.

10. How long is the expected service life of this connector?

    With normal use in standard environments, the connector can last over 10 years without performance degradation.
