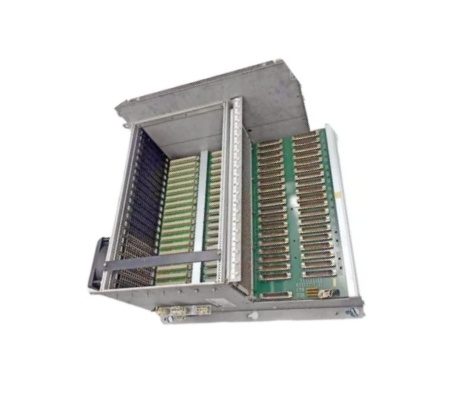

General Electric IS200BPVCG1BR1 Backplane ASM Interface Board

The IS200BPVCG1BR1 is a backplane, which is a component of a PCB. The back half of the board is populated with 21 female backplane connectors. The other part of the board, the part that houses the input/output connectors, the IS200BPVCG1BR1 also includes 14 plug-in connectors and 6 resistor network arrays. There are another 30 components on the bottom of the board. These components are labeled L1 to L30. The IS200BPVCG1BR1 is part of the Speedtronic Mark VI gas turbine control system. The board is designed to fit into a rack system to support multiple boards. The back of the board has 21 female backplane connectors. The back half of the board is populated with input/output connectors, which are exposed outside of the rack system. The back half of the board is populated with 21 female backplane connectors. When the board is placed into the rack system, it will be surrounded by a border to support and lock the board in place. The other side of the board is populated with input/output connectors, which are designed to be visible from outside the rack system.

Frequently asked questions about the product are as follows:

-What is the main function of the IS200BPVCG1BR1?

As a backplane component, it provides electrical connections and signal transmission between different modules, ensuring communication and data exchange between various parts of the system.

-What is the compatibility of the IS200BPVCG1BR1?

Designed specifically for Mark VI or Mark VIe control systems, it may not be compatible with other systems.

-Is the IS200BPVCG1BR1 device designed for VME rack insertion?

It can be installed in a VME rack-mount assembly.
