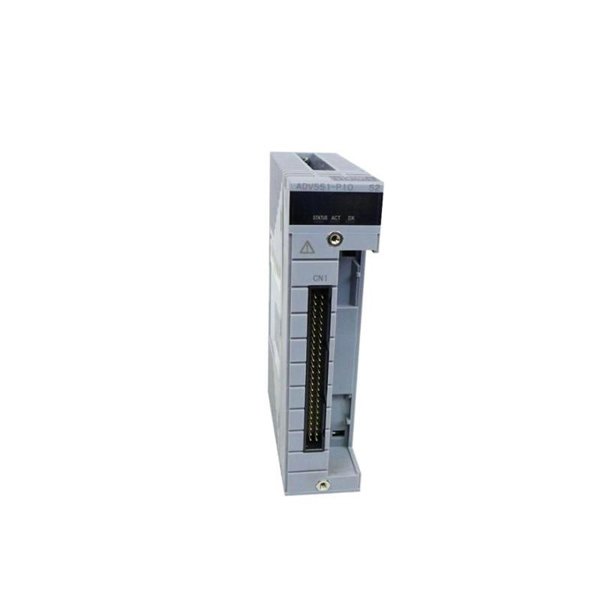

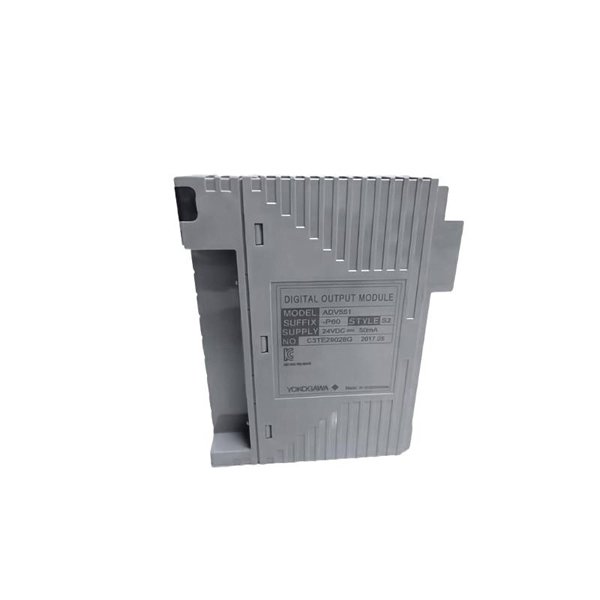

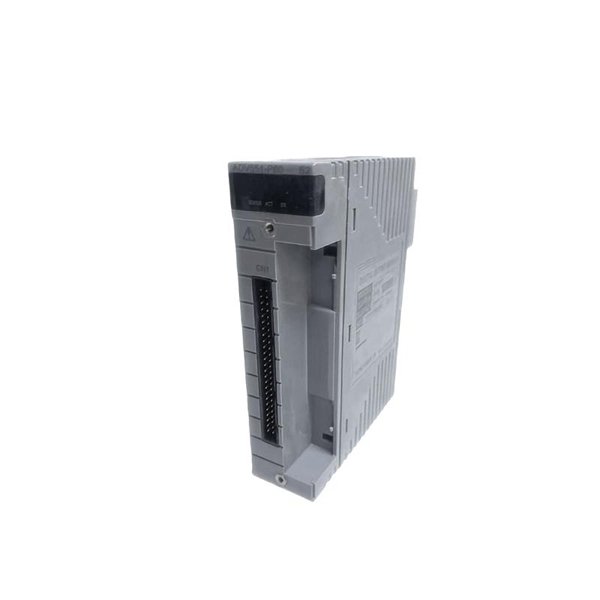

Yokogawa ADV551-P60 Digital Output Module

The Yokogawa ADV551-P60 is a high-performance digital output module developed for industrial-grade control systems. It is part of the Yokogawa STARDOM and CENTUM series, engineered to handle precise and rapid digital control of field devices in process automation environments. With its robust design, the ADV551-P60 supports multiple transistor-based digital outputs, making it ideal for applications that require control of actuators, signal lamps, solenoids, and interlock devices.

This module is specifically optimized to deliver high signal integrity, electrical isolation, and minimal latency, even in challenging environments with high noise or temperature fluctuations. The ADV551-P60 is designed for seamless integration into Yokogawa’s control platforms and complies with international standards, ensuring reliability and long-term performance in mission-critical operations.

Product Specifications

Product Applications

The ADV551-P60 is designed for integration into automation and safety systems that demand high availability and fast response. Below are common use cases:

• Power Plants: Control of auxiliary equipment such as fans, dampers, and alarm indicators.

• Oil & Gas Facilities: Remote digital control of valves, gas detectors, and safety shutdown systems.

• Chemical and Petrochemical Sites: Reliable actuator control and automated output switching.

• Water Treatment Plants: Pump switching, filter controls, and alarm systems management.

• Pharmaceutical Manufacturing: Used for interlocking, environmental control, and process safety systems.

• Factory Automation: Digital output control of relays, stack lights, buzzers, and robotic arms.

Product Advantages

• Reliable Signal Control: Delivers fast and consistent digital switching with minimal delay.

• Robust Isolation: Photocoupler isolation protects control logic from field disturbances and surges.

• Compact and Scalable: Slim design allows easy expansion in confined control cabinets.

• Flexible Installation: Supports both DIN rail and panel mounting, adaptable to different layouts.

• Safety Integration: Suitable for deployment in safety instrumented systems via ProSafe-RS.

• Global Compliance: Meets CE, UL, and CSA standards, ensuring global applicability.

• Efficient Load Handling: Handles up to 500 mA per channel for driving mid-power devices.

• Long Service Life: Industrial-grade construction ensures extended operational lifespan.

• System Compatibility: Seamless integration with Yokogawa’s distributed control systems.

• User-Friendly Maintenance: Modular design supports hot-swapping and simplified troubleshooting.

Frequently Asked Questions (FAQ)

1. Q: What is the maximum current supported per output on the ADV551-P60?

   A: Each channel supports up to 500 mA of load current.

2. Q: Is this module suitable for safety instrumented systems?

   A: Yes, it is compatible with Yokogawa’s ProSafe-RS safety system.

3. Q: Can I mount the ADV551-P60 on a DIN rail?

   A: Yes, it supports both DIN rail and panel mounting.

4. Q: What kind of load can this module control?

   A: It can drive resistive or inductive loads such as solenoids, relays, and lights.

5. Q: How fast does the output react to a control signal?

   A: The typical response time is less than 10 milliseconds.

6. Q: Are the outputs isolated from each other?

   A: Each output is optically isolated from the system, but not channel-to-channel.

7. Q: What protection features are included?

   A: It includes overcurrent, overvoltage, and short-circuit protection.

8. Q: Is it compatible with Yokogawa’s STARDOM systems?

   A: Yes, it integrates well with STARDOM, CENTUM VP, and ProSafe-RS.

9. Q: What is the power consumption of this module?

   A: It consumes 2.5 W of internal power.

10. Q: What certifications does the ADV551-P60 hold?

    A: It is CE-marked and UL, CSA certified for industrial use.
