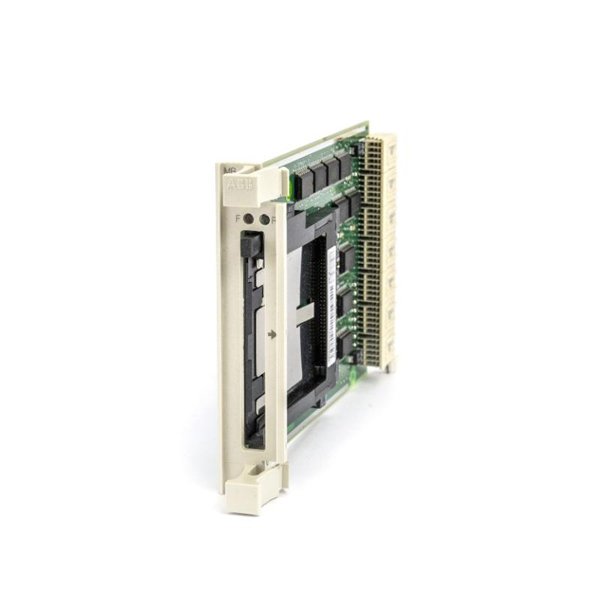

ABB MB510 3BSE002540R1 Program Card Interface Module

The ABB MB510 (Product Code: 3BSE002540R1) is a program card interface module engineered for ABB’s process automation systems. This module is primarily used for interfacing EPROM/EEPROM program cards with ABB control devices, such as those found in the Advant Controller 31 (AC 31) family. It serves as a vital component for storing, transferring, and managing user application programs and configuration data.

With a robust industrial design and plug-and-play functionality, the MB510 offers a reliable method for backup and program download/upload in distributed control systems. It is essential in scenarios requiring frequent firmware updates or portable programming in industrial environments.

Key Features

• Dedicated interface for reading and writing program memory cards

• Supports ABB EEPROM/EPROM memory cards

• Compatible with ABB AC 31 series and related control units

• Enables program transfer without PC connection

• Built-in LEDs for status and error indication

• Industrial-grade housing for harsh environments

• DIN rail mountable for control cabinet integration

• Simple installation and hot-swappable card insertion

Technical Specifications

Product Advantages

• Portability & Redundancy: Enables safe, portable program storage and fast system recovery.

• Independence from PC Tools: Program updates and downloads can be performed without a laptop or engineering station.

• Time-Saving: Reduces commissioning time by allowing quick program loading via cards.

• Robust Industrial Design: Engineered to operate reliably in factory floors and control rooms.

• Easy Integration: Seamlessly connects to existing ABB AC 31 installations.

• Visual Status Feedback: LED indicators improve diagnostics and user experience.

Industry Applications

• Manufacturing Automation: Ideal for machine control and logic program storage in discrete industries.

• Water & Wastewater Systems: Backup and restore logic for pumping and treatment stations.

• Building Management Systems: Store HVAC and lighting control configurations securely.

• Power Plants & Utilities: Load pre-programmed sequences into controller nodes without a PC.

• OEM Equipment Support: Handy for field service engineers to update or clone machine logic.

Frequently Asked Questions (FAQ)

1. Q: What is the primary purpose of the ABB MB510 module?

   A: It acts as an interface for reading and writing EPROM/EEPROM memory program cards used with ABB controllers.

2. Q: Which control system is it compatible with?

   A: It is mainly used with ABB AC 31 series and related automation systems.

3. Q: Can I insert or remove the card while powered?

   A: Yes, the module supports hot insertion and removal of memory cards.

4. Q: Does it require special software to operate?

   A: No. It operates independently for program transfer and does not require PC software.

5. Q: Are LEDs provided for diagnostics?

   A: Yes, it includes LEDs for power status, activity, and error indication.

6. Q: What voltage does it operate on?

   A: It operates on a nominal 24 V DC supply.

7. Q: Is it panel or DIN rail mounted?

   A: It can be mounted on a DIN rail or directly onto a panel.

8. Q: What type of cards are supported?

   A: It supports ABB-formatted EPROM and EEPROM cards, typically 32 KB or 64 KB.

9. Q: Can the module be used in field environments?

   A: Yes, it is built to industrial-grade standards for harsh operating conditions.

10. Q: Does the MB510 provide backup functionality?

    A: Yes, it enables both backup and restore of controller programs.
