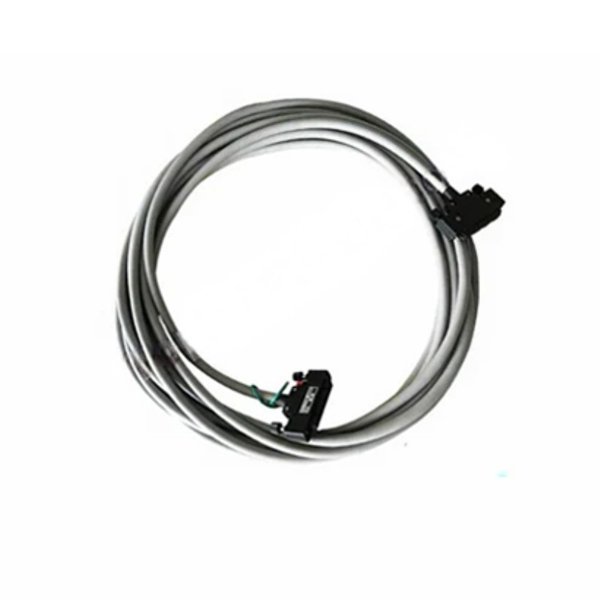

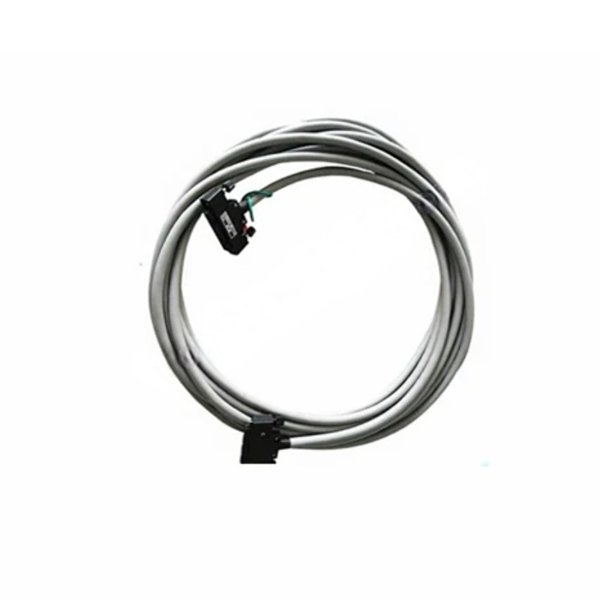

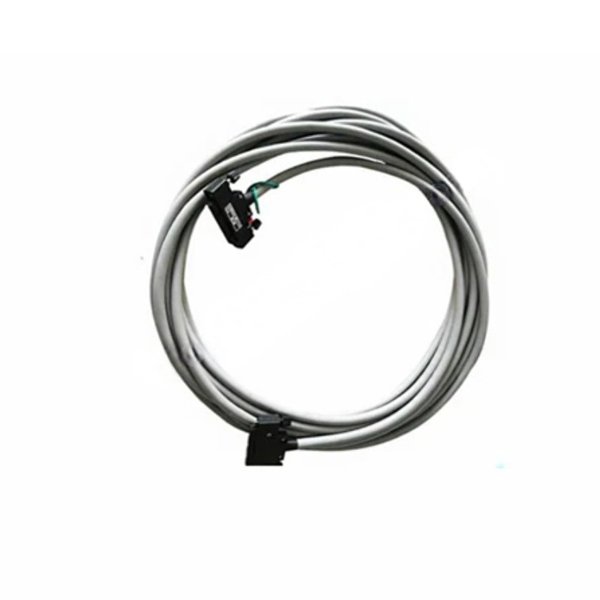

Yokogawa YCB141-M025 Coaxial Cable

The Yokogawa YCB141-M025 Coaxial Cable is a high-performance transmission cable designed for use in industrial control systems, measurement devices, and automation networks. As part of Yokogawa’s YCB cable series, it ensures stable signal transmission with excellent shielding, low signal attenuation, and reliable long-term durability. This cable is specifically engineered to meet the strict demands of process control environments where data integrity and noise immunity are critical.

Technical Specifications

Product Applications

• Distributed Control Systems (DCS): Provides stable communication between control units and field devices.

• PLC and Industrial Automation: Ensures noise-immune data transfer between controllers and monitoring units.

• Instrumentation and Measurement: Used in test benches and process analyzers requiring precision signals.

• High-frequency Data Links: Supports RF and high-speed communication within process plants.

• Laboratory and R&D: Suitable for use in experimental setups where low-loss coaxial connections are required.

• Monitoring & Safety Systems: Provides secure connectivity for alarm, protection, and monitoring channels.

Product Advantages

• High Signal Integrity: Low attenuation and impedance consistency minimize signal distortion.

• Strong EMI Shielding: Dual shielding design ensures immunity against external electromagnetic interference.

• Durability: Designed to withstand mechanical stress, bending, and environmental variations.

• Safety Compliant: Meets international standards for flame resistance and RoHS environmental compliance.

• Easy Integration: Compatible with standard connectors, simplifying installation and replacement.

• Optimized for Industrial Use: Specifically tailored for Yokogawa automation systems, guaranteeing seamless integration and reliable operation.

FAQ

Q1: What type of impedance is supported by the YCB141-M025?

A1: It supports a nominal impedance of 75 Ω, suitable for most industrial and measurement applications.

Q2: How does the cable perform in high-frequency signal transmission?

A2: The cable supports up to 3 GHz frequency with low attenuation, making it effective for high-frequency communication.

Q3: What shielding method is used in this coaxial cable?

A3: It employs a double shield design with aluminum foil and a braided copper layer to ensure high EMI resistance.

Q4: Can this cable be used in outdoor environments?

A4: The PVC jacket provides limited protection, but for continuous outdoor use, additional protective tubing or conduit is recommended.

Q5: What is the main conductor material in this cable?

A5: The inner conductor is made of high-conductivity copper for optimal signal transmission.

Q6: How does the cable handle bending and mechanical stress?

A6: The flexible PVC jacket and robust shielding allow it to withstand repeated bending without significant performance loss.

Q7: Is the YCB141-M025 compatible with standard connectors?

A7: Yes, it is compatible with BNC, N-type, and Yokogawa-specific connectors.

Q8: What is the typical attenuation value of this cable at 100 MHz?

A8: The attenuation is approximately 8.5 dB per 100 meters at 100 MHz.

Q9: Can this cable be used in safety monitoring systems?

A9: Yes, its noise immunity and reliable transmission make it suitable for safety-critical monitoring applications.

Q10: Does the YCB141-M025 comply with international standards?

A10: Yes, it complies with IEC 61196 and is RoHS compliant, ensuring safety and environmental compatibility.
