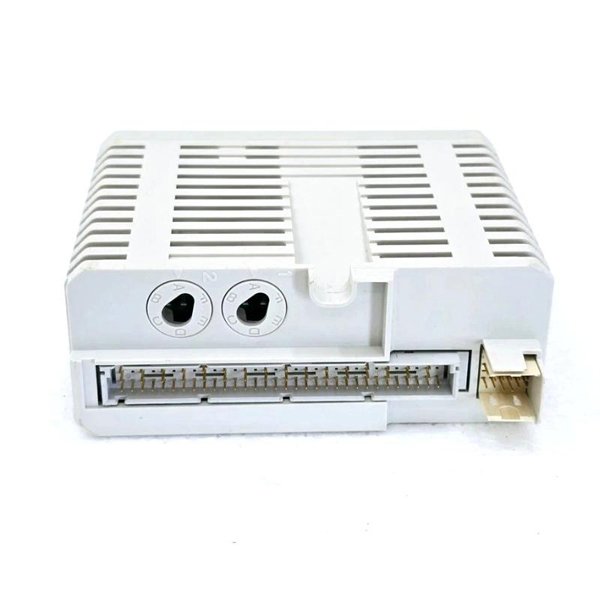

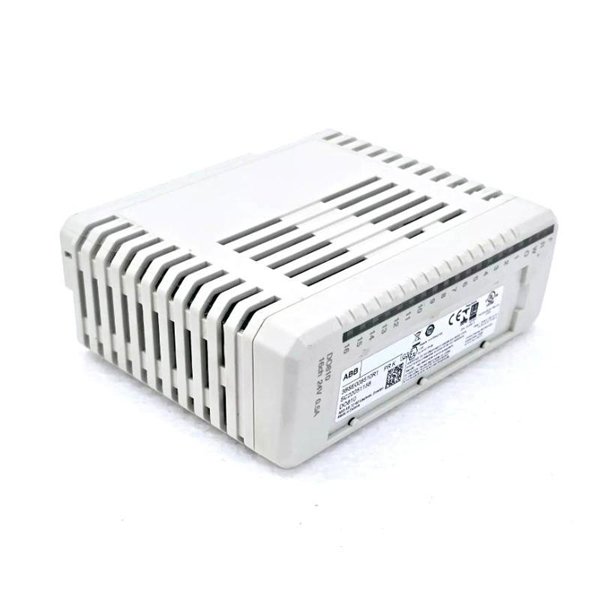

ABB DO810 3BSE008510R1 S800 I/O Systems Digital Output Module

The ABB DO810 3BSE008510R1 is a digital output module designed for the S800 I/O system, a distributed and modular I/O solution widely used in industrial automation. This module features 16 digital output channels, designed to control actuators such as relays and solenoids. It provides robust performance, fault diagnostics, and fast switching capability. Tailored for demanding environments, the DO810 ensures optimal control and feedback for modern industrial systems including DCS and PLC networks.

The module interfaces with 24 V DC signals and is equipped with features like short-circuit protection, channel isolation, and status indicators, making it reliable and maintenance-friendly for large-scale operations.

Technical Specifications

Applications

• Industrial Automation: Seamless integration in factory automation systems such as production lines and packaging machines.

• Power Plants: Digital signal control for equipment and process control.

• Oil & Gas: Control of solenoids, valves, and actuators in hazardous or remote locations.

• Water Treatment Plants: Management of pumps, valves, and alarms.

• Building Automation: For interfacing and controlling HVAC components and lighting systems.

• Transportation Systems: Used in railway signaling and traffic control applications.

Advantages

• High Channel Density: 16 channels in a compact module conserve panel space.

• Fault Detection: Built-in diagnostics allow for quick detection of channel faults.

• Isolation and Safety: Channel-to-bus isolation improves system safety and protects against voltage spikes.

• Easy Integration: Native support within ABB’s 800xA and other DCS systems.

• Reliable Switching: Fast response time ensures real-time control performance.

• Compact and Lightweight: Simplifies installation and maintenance.

• Energy Efficient: Low power consumption minimizes energy overhead.

• Modular Design: Ideal for scalable and distributed system architectures.

Frequently Asked Questions (FAQ)

Q1: How many digital output channels does the DO810 support?

A1: The DO810 module supports 16 digital sourcing output channels.

Q2: What is the nominal voltage for the output signals?

A2: The nominal output voltage is 24 V DC.

Q3: Does the module provide short-circuit protection?

A3: Yes, each group of outputs is electronically protected against short-circuit conditions.

Q4: Is channel-to-channel isolation available?

A4: No, channels are not isolated from each other but have channel-to-bus isolation.

Q5: Can the module be mounted on a DIN rail?

A5: Yes, it is designed for standard DIN rail mounting.

Q6: What diagnostics features are included?

A6: Each channel includes status and fault indication LEDs for real-time diagnostics.

Q7: What is the maximum output current per channel?

A7: Each output channel can handle up to 0.5 A.

Q8: Is the DO810 compatible with ABB 800xA systems?

A8: Yes, it integrates seamlessly into ABB 800xA and other S800-based systems.

Q9: What environments is the module designed for?

A9: It is designed for industrial environments with operating temperatures from -20°C to +70°C and up to 95% relative humidity.

Q10: How is communication handled within the S800 system?

A10: Communication is conducted via the S800 I/O bus interface.
