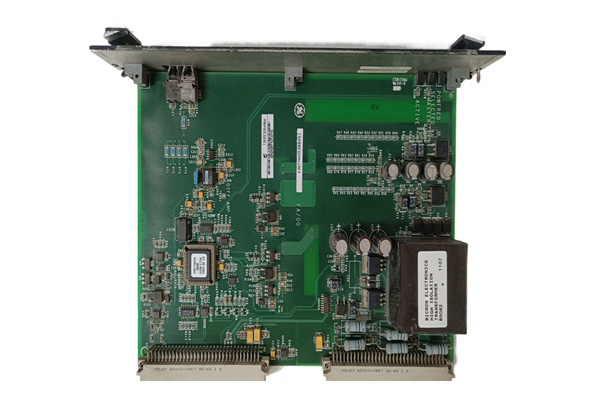

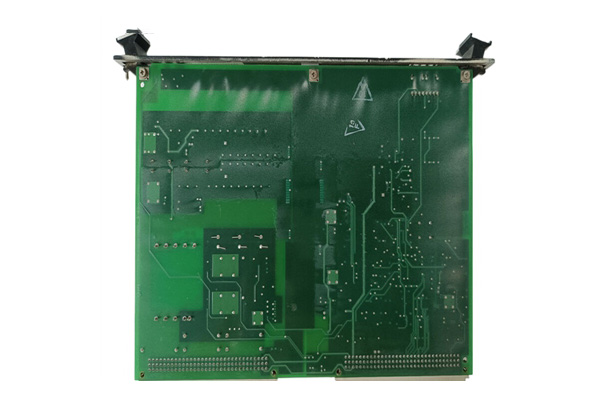

General Electric IS200EGDMH1AFF Exciter Ground Detector Module
Module Number:IS200EGDMH1AFF
Product status:Discontinued
Delivery time:In stock
Product status:100% new
Sales country:All over the world
Product situation:one year warranty
Product Description
The General Electric IS200EGDMH1AFF module is a high-performance gas turbine module manufactured by General Electric (GE), commonly used in equipment such as gas turbines and generators. The main functions of this module include:
Excitation field grounding detection: As an excitation field grounding detection module (EGDM), it is mainly used to detect the potential for on-site grounding leakage at any point on the DC or AC side, ensuring the safe operation of the equipment.
Monitoring the operating parameters of the gas turbine: It can monitor various operating parameters of the gas turbine, such as temperature, pressure, speed, etc., in order to monitor the real-time operation status of the equipment.
Temperature control: With temperature control function, adjust the temperature of the gas turbine as needed to ensure that the equipment operates within the optimal temperature range.
Combustion control: Control the combustion process of the gas turbine to ensure combustion efficiency and stability, while reducing emissions.
Fault diagnosis and alarm management: When a gas turbine malfunctions, it can promptly issue an alarm and help operators quickly locate the cause of the fault, improving the maintainability of the equipment.
This module is widely used in industrial fields such as power plants, chemical plants, oil and gas plants, ensuring the stable operation and efficient performance of gas turbines.
Technical specifications and parameters of the module
The technical specifications and parameters of the General Electric IS200EGDMH1AFF module are as follows:
Model: IS200EGDMH1AFF
Input voltage range: Depending on different data, the input voltage may vary, commonly ranging from 12-48VDC or 24VDC.
Output voltage range: 0-10VDC
Maximum output current: 20mA
Working temperature: -20 ° C to+50 ° C (one version), or -40 ° C to 85 ° C (another version).
Dimensions: Approximately 170mm x 105mm x 32mm (one version), or 120mm x 80mm x 25mm (another version).
Weight: approximately 120g
CPU: equipped with a 32-bit RISC processor
Indicator lights: There are three LED indicator lights on the panel, namely power indicator light, main indicator light, and optional main indicator light.
Advantages and characteristics of modules
The General Electric IS200EGDMH1AFF module has the following advantages and characteristics:
High reliability: Through real-time monitoring and fault diagnosis functions, ensure that the gas turbine operates in an efficient and safe state.
Multifunctionality: It not only has grounding detection function, but also monitors various operating parameters for temperature control and combustion control.
Easy to operate: With a simple and user-friendly interface, it is convenient for users to set up and monitor.
Strong compatibility: It can be compatible with various control systems and software, making it convenient for users to integrate and expand.
Energy conservation and environmental protection: Adopting the design concept of energy conservation and environmental protection helps to reduce energy consumption and minimize the impact on the environment.
Scalability: The design considers future expansion needs and allows for easy expansion and upgrading of circuit boards.
Applicable scenarios and limitations of modules
Applicable scenarios:
Suitable for monitoring and control of large power equipment such as gas turbines and generator sets.
Widely used in industrial fields such as electricity, chemicals, oil, and natural gas.
Limitations:
It needs to work within a specific temperature range, and exceeding this range may affect performance.
Installation and configuration require certain professional knowledge and skills, and non professionals may need guidance.
The size and weight of the module limit its application in certain narrow spaces.
The performance of the module may be affected by factors such as electromagnetic interference, and appropriate protective measures need to be taken.
In summary, the General Electric IS200EGDMH1AFF module is a powerful and highly reliable gas turbine module suitable for various industrial equipment such as gas turbines and generator sets. Through real-time monitoring, fault diagnosis, and multifunctional control, it helps to improve the operational efficiency and safety of equipment.
