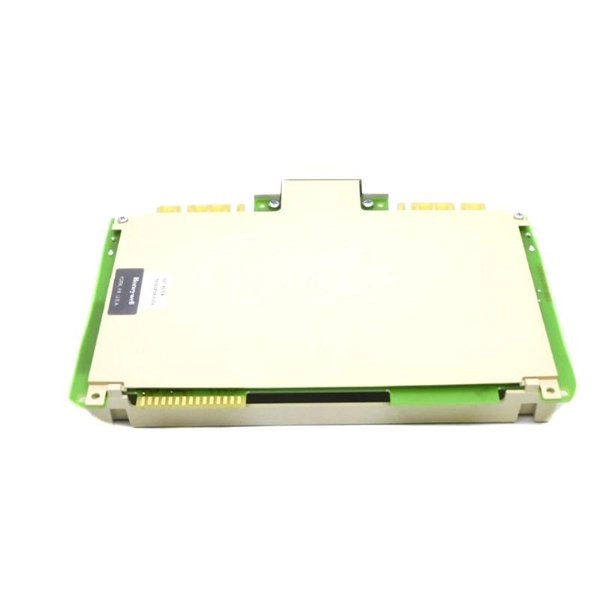

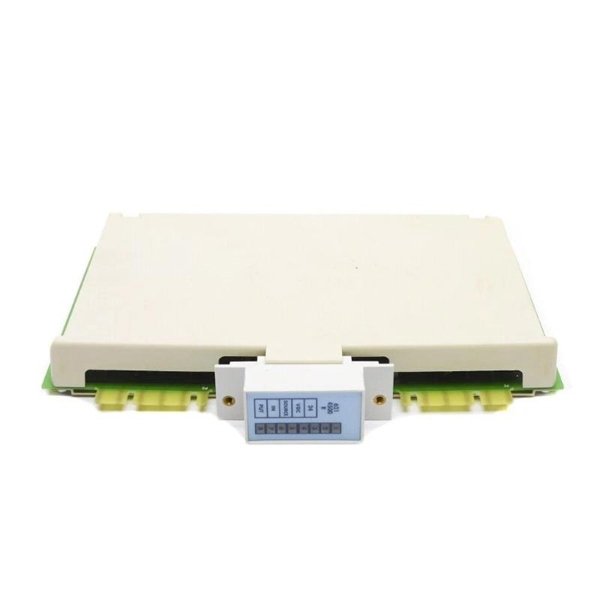

Honeywell 621-4500 IPC 621 UCN Source Input Module

The Honeywell 621-4500 is a Source Input Module designed for the IPC 620 Programmable Controller system. It serves as a critical interface between field devices and the controller, translating real-world input signals into digital data for process control. Positioned within the 621 I/O subsystem, the 621-4500 is essential for acquiring analog or digital inputs in automation and control applications.

Technical Specifications

Applications

• Distributed process control systems

• Factory automation and monitoring

• Integration with SCADA/DCS via UCN

• Input acquisition from sensors, switches, relays

• Legacy support in IPC 620 control platforms

Key Advantages

• Reliable input signal acquisition in harsh environments

• Compact form factor ideal for space-limited racks

• Clear LED status indicators for diagnostics

• Seamless integration with Honeywell’s UCN-based systems

• Easy installation and maintenance in 621 rack architecture

Frequently Asked Questions (FAQ)

Q1: How many input channels does the 621-4500 support?

A1: It supports 16 individual source-type digital input channels.

Q2: Is this module compatible with non-Honeywell systems?

A2: No, it is designed specifically for the Honeywell IPC 620 controller system and communicates over the UCN network.

Q3: Does it support hot-swapping?

A3: No, the module must be installed or removed with power off to avoid damage.

Q4: What kind of input signals can it process?

A4: It is designed for source-type DC digital inputs typically from switches, proximity sensors, or contact closures.

Q5: Are the input channels isolated?

A5: Yes, the channels are electrically isolated to prevent cross-interference.

Q6: Where does the module receive power from?

A6: It draws power from the I/O backplane within the 621 I/O rack.

Q7: Can this module be used in hazardous environments?

A7: It should be installed in industrial cabinets approved for the environment; it is not intrinsically safe by itself.

Q8: How is the health or status of inputs indicated?

A8: Each channel includes an LED that indicates the ON/OFF status.

Q9: Is programming required for installation?

A9: Configuration is typically done via the system processor or loader terminal, not at the module level.

Q10: Can the 621-4500 module be replaced without reprogramming the controller?

A10: Yes, as long as the replacement module is of the same type and installed in the same slot, no reprogramming is required. The controller will recognize it automatically during the next startup or scan cycle.
