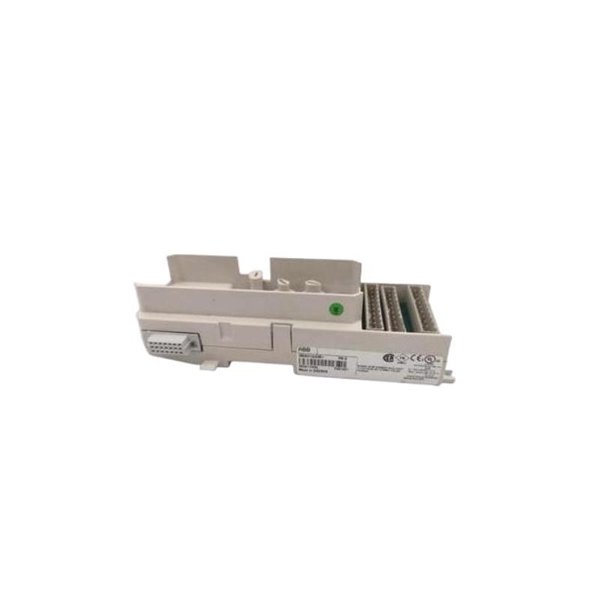

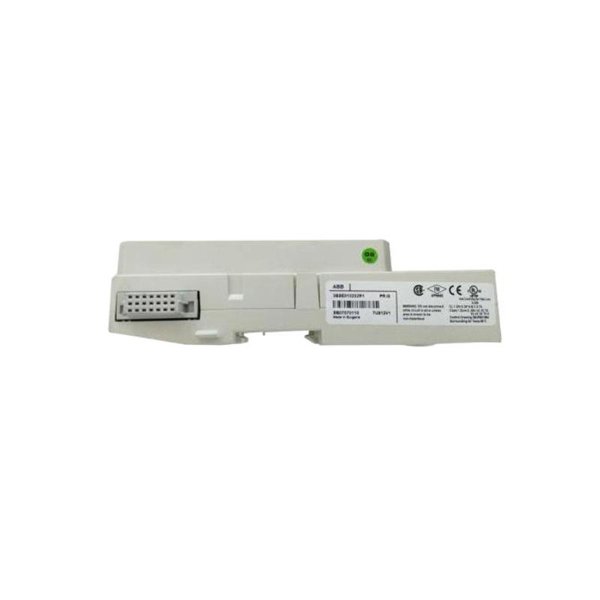

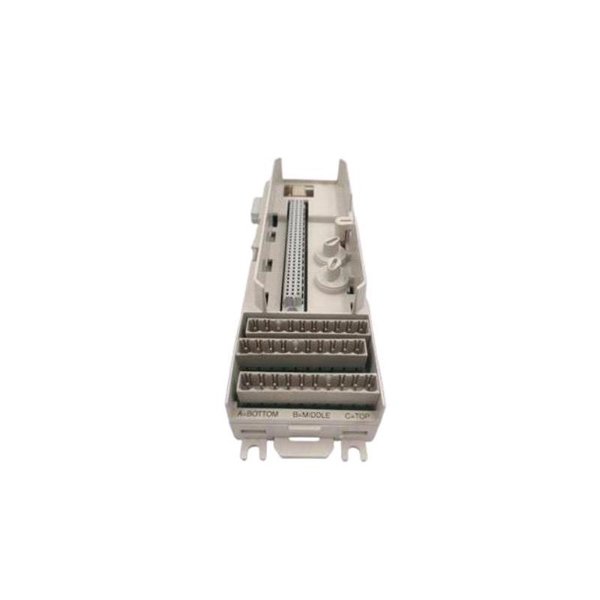

ABB TU814V1 3BSE013233R1 Module Termination Unit

The ABB TU814V1 3BSE013233R1 is a termination unit designed for use in ABB’s S800 I/O system, widely implemented in industrial automation and process control environments. It functions as an interface between the field wiring and the I/O modules, facilitating signal transmission, simplifying connections, and enabling modular configuration.

With a compact form factor and robust engineering, the TU814V1 is optimized for mounting in cabinets and control rooms where reliability and space-saving installation are critical. The unit provides 16 channels for signal connections and integrates seamlessly with both analog and digital I/O modules within the ABB 800xA control system platform.

Product Advantages

• Modular Integration: Fully compatible with ABB S800 I/O modules, allowing quick integration and flexible expansion.

• Compact Size: Space-efficient design ideal for cabinet installations in industrial environments.

• Robust Connection Interface: Spring clamp terminals ensure secure, vibration-resistant connections without soldering.

• Easy Maintenance: Plug-and-play replacement and simplified wiring reduce downtime during service.

• Field-Proven Reliability: Built to withstand harsh industrial environments with high electromagnetic compatibility (EMC).

• Comprehensive Diagnostics: Enables signal path diagnostics and module status monitoring through the I/O system.

Technical Specifications

Product Applications

• Power Plants: Used in control panels for turbine and boiler management systems.

• Chemical & Petrochemical Plants: Interfaces field sensors and actuators with DCS systems for batch and continuous processing.

• Oil & Gas: Supports I/O signal routing in offshore platforms and pipeline control systems.

• Water Treatment Facilities: Facilitates automation in pumping, filtering, and chemical dosing processes.

• Manufacturing & Robotics: Applied in machine-level control systems for signal and sensor integration.

• Pharmaceuticals: Supports regulated processes with high-reliability signal termination.

Installation Instructions

1. Mounting: Install the TU814V1 on a DIN rail or directly onto a mounting plate using standard hardware.

2. Wiring: Connect field wires to the spring clamp terminals; each terminal corresponds to one I/O channel.

3. Module Connection: Attach the appropriate I/O module onto the TU814V1 interface slot, ensuring secure contact.

4. Power Supply: Ensure the system’s backplane and I/O modules are powered correctly before initiating signals.

5. Testing: After installation, verify channel continuity and signal integrity using a test tool or system diagnostics.

6. Labeling: Clearly label all connected wires for easy maintenance and documentation.

Frequently Asked Questions (FAQ)

Q1: What type of I/O modules can be connected to TU814V1?

A1: The TU814V1 is compatible with most ABB S800 analog and digital I/O modules.

Q2: Can this terminal unit be hot-swapped during operation?

A2: The TU814V1 allows module replacement without disconnecting field wiring, but proper system isolation is recommended during hot-swapping.

Q3: Is the unit suitable for outdoor installation?

A3: No, it must be housed in a protective enclosure suitable for industrial environments.

Q4: What is the maximum wire size supported?

A4: The spring terminals support wires up to 2.5 mm² (AWG 14).

Q5: How many channels are available on the TU814V1?

A5: It supports 16 signal channels.

Q6: Is this terminal unit resistant to vibration?

A6: Yes, the spring clamp connections are designed to withstand industrial vibrations.

Q7: How is the terminal unit connected to the system bus?

A7: It connects to the I/O module, which in turn interfaces with the system bus via the S800 I/O communication backbone.

Q8: Does TU814V1 3BSE013233R1 require external power?

A8: No, it does not require power. Power is supplied through the I/O module connection.

Q9: Can I use TU814V1 3BSE013233R1 in safety-critical applications?

A9: Yes, when paired with appropriate certified modules, it can be part of SIL-rated systems.

Q10: What is the material of the housing?

A10: It is made of industrial-grade flame-retardant plastic.
